American Fire Products 24" x 8" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane

Create a stunning outdoor fire feature with the American Fire Products 24" x 8" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane. Engineered for dependable performance and easy installation, this complete fire pit system combines a handcrafted stainless steel drop-in pan, built-in H-burner, and advanced AWEIS electronic ignition technology to deliver reliable flames and convenient operation.

Constructed from premium 304 stainless steel, this drop-in pan is designed to withstand harsh outdoor conditions, resist corrosion, and provide years of dependable service. Its integrated flange allows for easy installation and removal, while the false-bottom design reduces the amount of fire glass needed, helping lower installation costs without sacrificing visual appeal.

The built-in stainless steel H-burner generates a powerful flame pattern with up to 120,000 BTU of heat output. Paired with the AWEIS (All Weather Electronic Ignition System), this unit provides automatic ignition, thermopile flame sensing, and reliable operation in outdoor environments. Designed specifically for whole house propane fire features, this system offers both performance and safety for residential and commercial applications.

Features

• Complete 24" x 8" rectangular fire pit system with AWEIS electronic ignition
• Designed for whole house propane outdoor vented fire features
• Built-in stainless steel H-burner for realistic and even flame distribution
• Powerful 120,000 BTU maximum heat output
• Premium 304 stainless steel construction for durability and corrosion resistance
• Drop-in pan design with integrated flange for easy installation and maintenance
• False-bottom design reduces fire glass requirements and installation costs
• Drilled burner ports help eliminate whistling and burner noise
• Integrated weep holes prevent water accumulation
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Includes propane air mixer for whole house propane applications
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire pit projects

Product Specifications

• Product Weight: 22 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Style: Contemporary

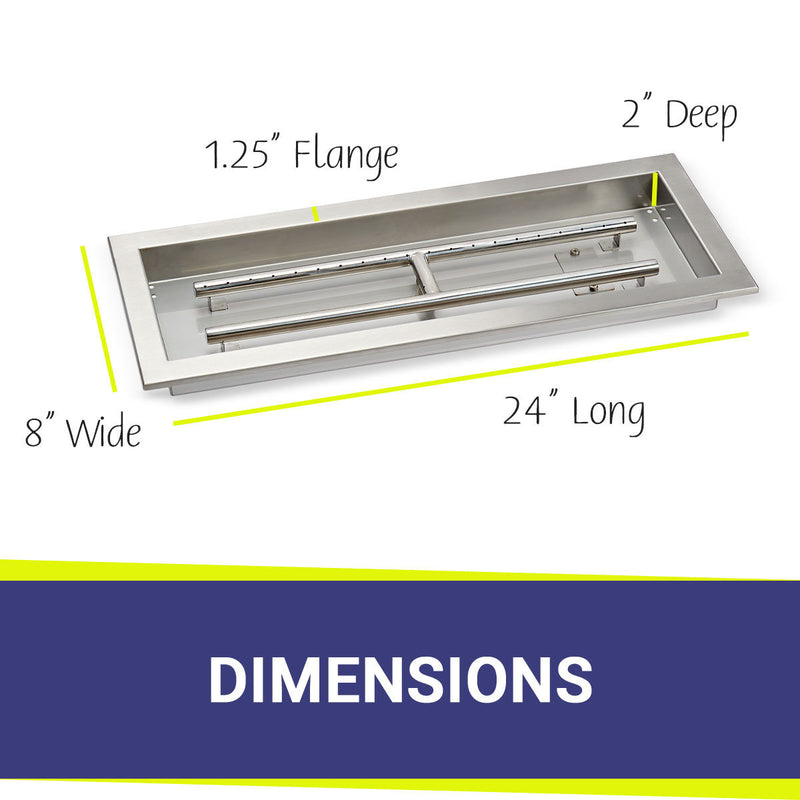

• Dimensions: 24" L x 8" W x 2" D x 1 1/4" Flange
• Fuel Type: Whole House Propane
• Fire Glass Capacity: 20 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel H-Burner
• Burner Heat Rating: 120,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

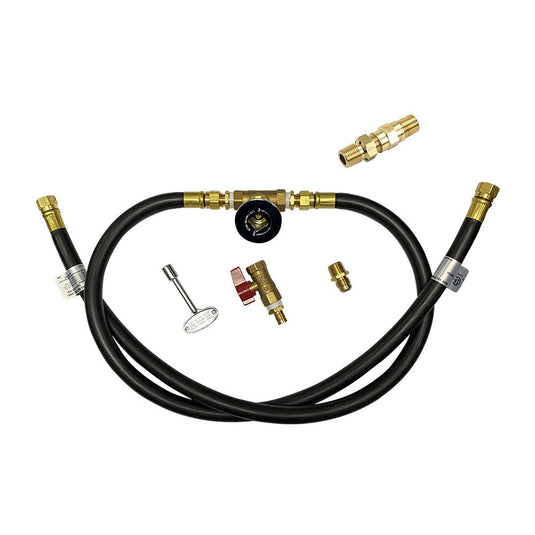

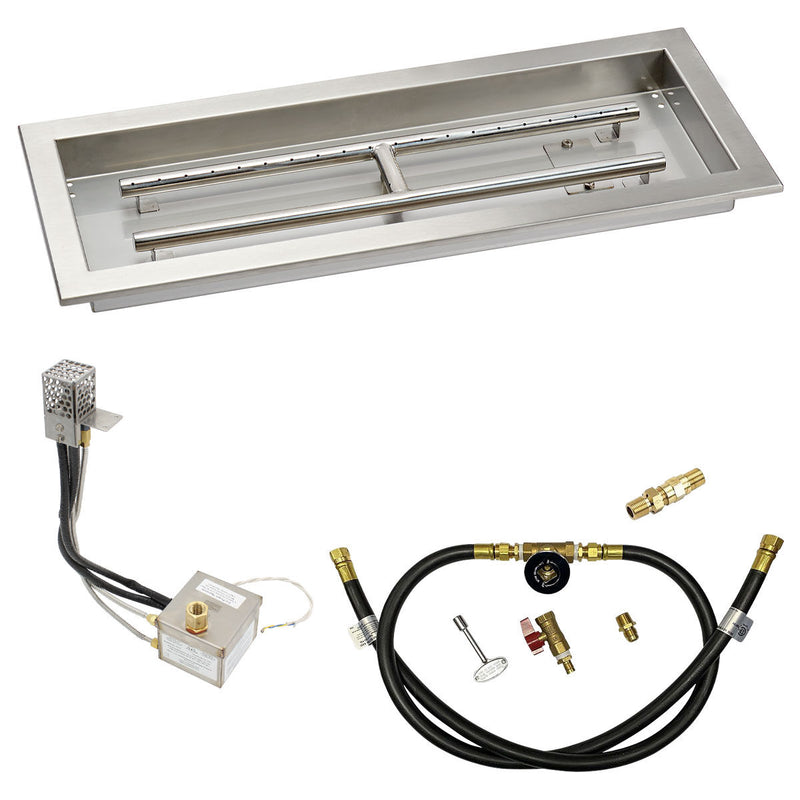

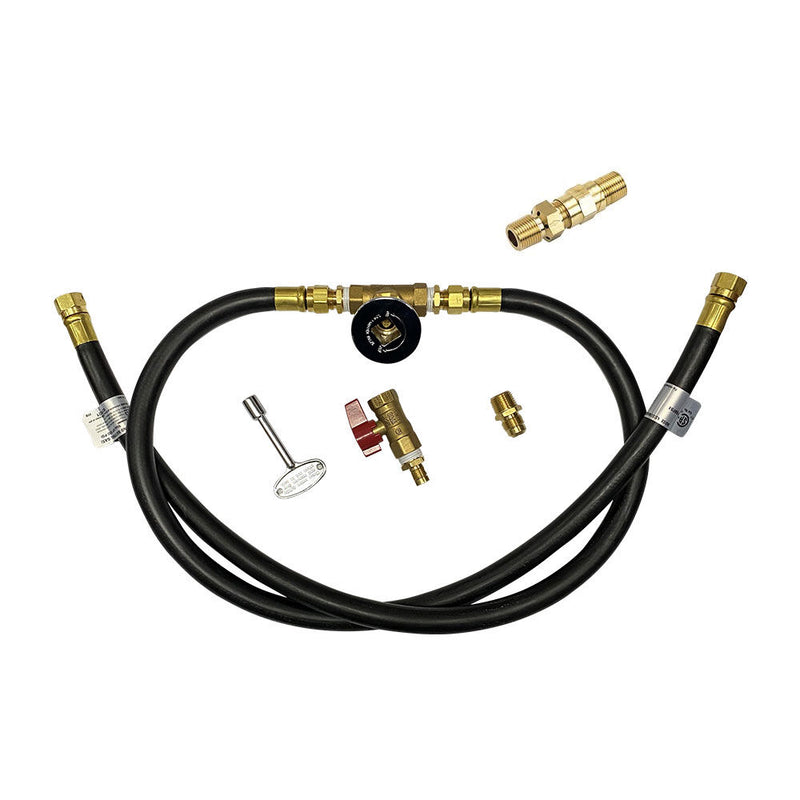

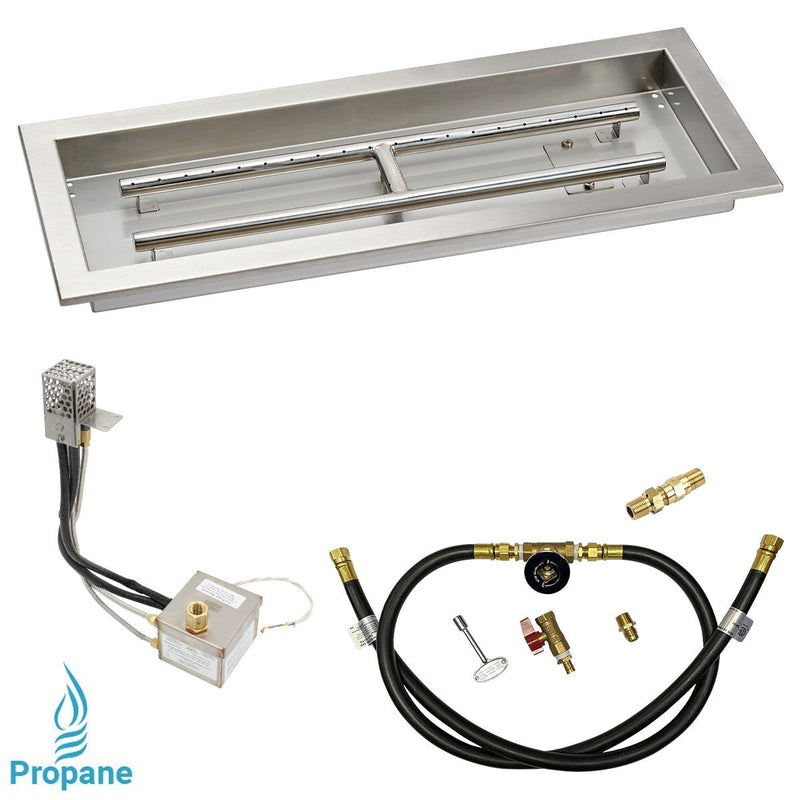

• Included Components
  • 24" x 8" Rectangular Stainless Steel Drop-In Pan
  • Built-In Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
