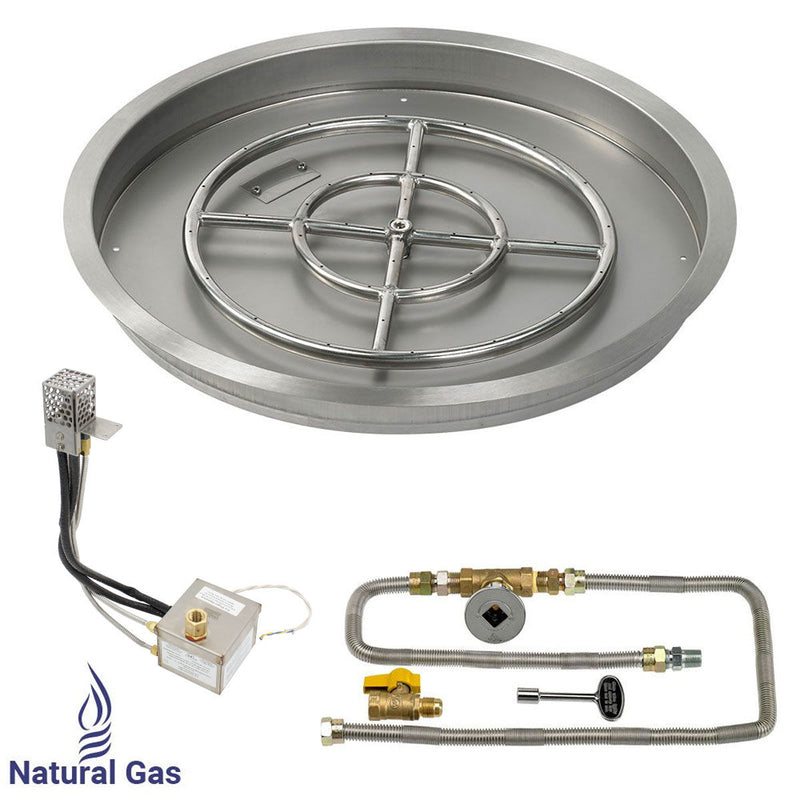

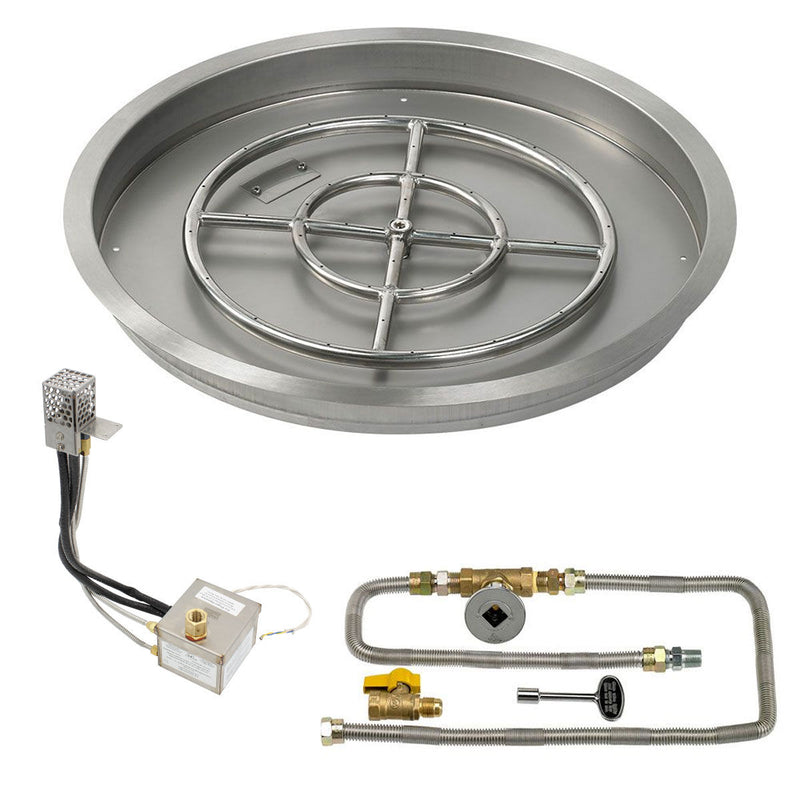

American Fire Products 25" Round Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Natural Gas

Create an elegant and dependable outdoor fire feature with the American Fire Products 25" Round Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Natural Gas. Designed for premium residential and commercial fire pit installations, this complete fire pit system combines a handcrafted stainless steel round drop-in pan, an 18" ring burner, and the advanced AWEIS electronic ignition system for reliable performance and a beautiful, consistent flame.

The 25" round drop-in pan features an integrated lip for easy installation and removal, making it an ideal choice for circular fire pit designs. Its false-bottom design reduces the amount of fire glass needed while maintaining a full and professional appearance. Constructed from 100% 304 stainless steel, the pan provides excellent durability and resistance to rust, corrosion, heat, and harsh outdoor environments.

The included AWEIS (All Weather Electronic Ignition System) provides dependable hot surface ignition, automatic flame sensing, and reliable operation in changing weather conditions. Combined with the 18" stainless steel ring burner producing up to 147,000 BTU, this system delivers even flame distribution, efficient performance, and the convenience of electronic ignition for a premium outdoor fire experience.

Features

• Complete 25" round fire pit system with 18" ring burner and AWEIS electronic ignition
• Designed for outdoor vented natural gas fire pit applications
• Premium 304 stainless steel construction for exceptional durability and corrosion resistance
• Built-in 18" stainless steel ring burner with cross-bar design for even flame distribution
• Powerful burner rated up to 147,000 BTU/hour
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Compact ignition system ideal for fire features with limited vertical clearance
• Thermopile flame detection enhances safety and operational reliability
• False-bottom pan design reduces fire glass requirements and installation costs
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Integrated weep holes prevent water accumulation inside the burner pan
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 32 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Shape: Round
• Dimensions: 25" Diameter
• Fuel Type: Natural Gas
• Fire Glass Capacity: 48 lbs (Fire Glass Not Included)
• Burner Type: 18" Stainless Steel Ring Burner
• Burner Size: 18"
• Burner Features: Drilled burner ports (anti-whistling design)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Gas Inlet: 1/2" Bottom Gas Inlet
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled burner ports, integrated weep holes, false-bottom design
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 25" Round Stainless Steel Drop-In Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
