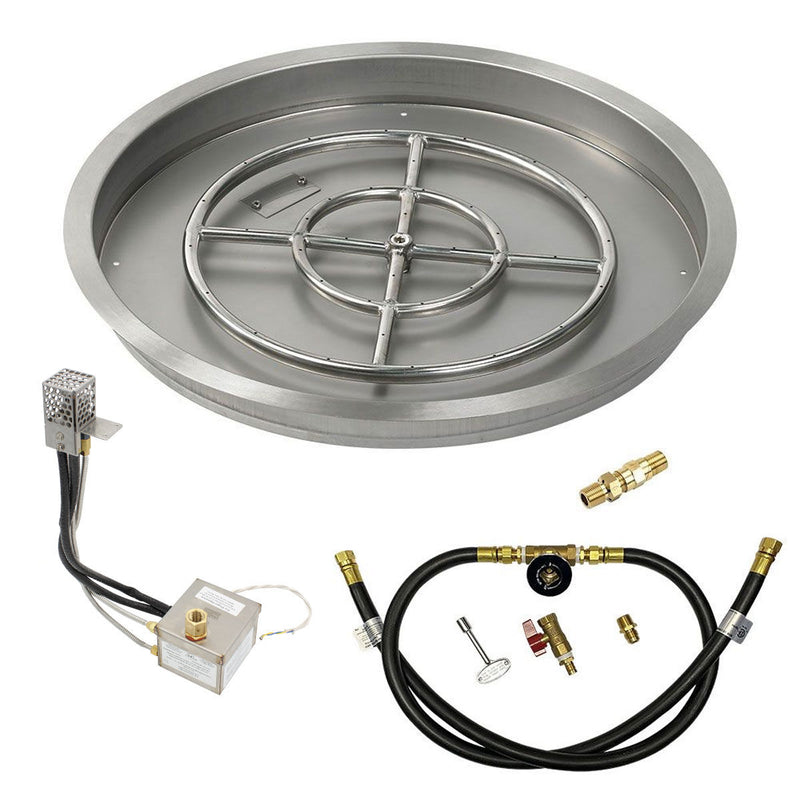

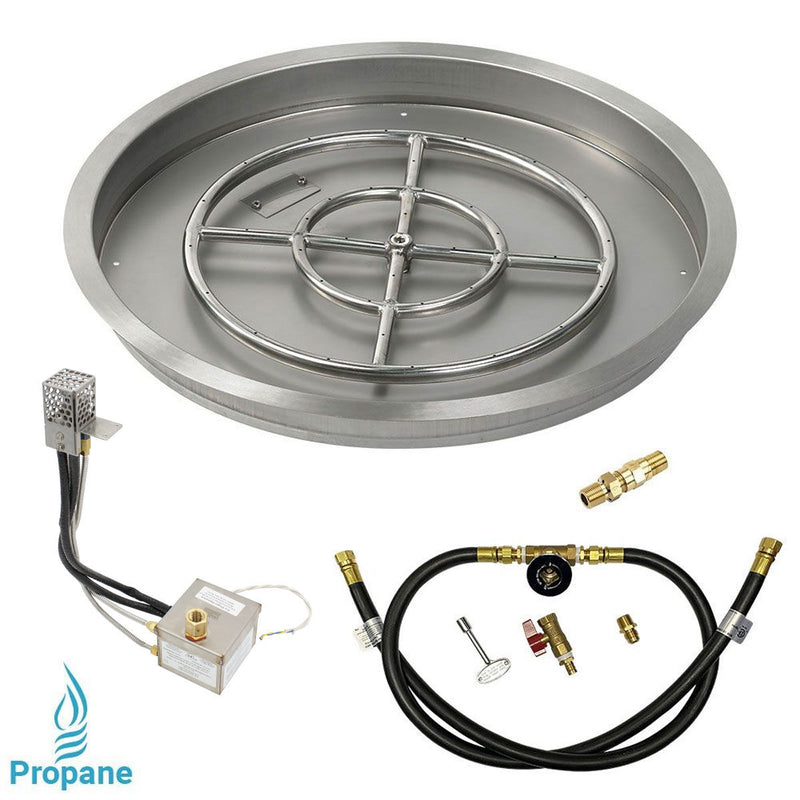

American Fire Products 25" Round Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Whole House Propane

Create a stunning and reliable outdoor fire feature with the American Fire Products 25" Round Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Whole House Propane. Designed for premium residential and commercial fire pit installations, this complete system combines a durable stainless steel round drop-in pan, an 18" ring burner, and the advanced AWEIS electronic ignition system for dependable performance and a consistent, beautiful flame presentation.

The 25" round drop-in pan features an integrated lip for easy installation and removal, making it ideal for circular fire pit designs. Its false-bottom construction reduces the amount of fire glass required while maintaining a full, high-end appearance. Built from 100% 304 stainless steel, the pan delivers excellent resistance to rust, corrosion, and extreme outdoor conditions.

At the center of the system is the AWEIS (All Weather Electronic Ignition System), engineered for reliable hot surface ignition, automatic flame sensing, and safe all-weather operation. Paired with the included 18" stainless steel ring burner capable of producing up to 147,000 BTU, this system ensures even flame distribution and strong performance for larger fire features.

Features

• Complete 25" round fire pit system with 18" ring burner and AWEIS electronic ignition
• Designed for outdoor vented whole house propane fire pit applications
• Premium 304 stainless steel construction for long-term durability and corrosion resistance
• Built-in 18" stainless steel ring burner with cross-bar design for even flame distribution
• Powerful burner rated up to 147,000 BTU/hour
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Thermopile flame detection ensures safe and reliable operation
• False-bottom design reduces fire glass requirements and installation costs
• Drilled burner ports help eliminate whistling and burner noise
• Integrated weep holes prevent water accumulation inside the pan
• Includes 24V transformer, safety shut-off valve, key valve, dual gas flex lines, and propane air mixer
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 32 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Fire Glass Capacity: 48 lbs (Fire Glass Not Included)
• Shape: Round
• Dimensions: 25" Diameter
• Burner Type: 18" Stainless Steel Ring Burner
• Burner Size: 18"
• Burner Features: Drilled burner ports (anti-whistling design)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Gas Inlet: 1/2" Bottom Gas Inlet
• Fuel Type: Whole House Propane
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled burner ports, integrated weep holes, false-bottom design
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 25" Round Stainless Steel Drop-In Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
