American Fire Products 30" Round Stainless Steel Flat Pan with AWEIS System (24" Ring) - Whole House Propane

Create a powerful and elegant outdoor fire feature with the American Fire Products 30" Round Stainless Steel Flat Pan with AWEIS System (24" Ring) - Whole House Propane. Designed for larger residential and commercial fire pit applications, this complete burner system combines a durable stainless steel flat pan, high-output ring burner, and advanced electronic ignition technology for reliable performance and impressive flame presentation.

The 30" round flat burner pan is handcrafted from 100% stainless steel to provide excellent strength, heat resistance, and long-lasting outdoor durability. Built-in weep holes help prevent water accumulation, while the flat pan design creates a clean and professional fire pit installation.

The included 24" stainless steel ring burner delivers consistent flame distribution through precision-drilled burner ports that reduce noise and improve performance. Powered by the High Capacity AWEIS (All Weather Electronic Ignition System), this system provides automatic ignition, flame monitoring, and dependable operation for high-demand whole house propane fire features.

Features

• Complete 30" round fire pit burner system with High Capacity AWEIS electronic ignition
• Designed for whole house propane outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes powerful 24" 304 stainless steel ring burner
• High Capacity AWEIS ignition system with automatic flame sensing
• Provides reliable hot surface ignition and flame monitoring
• Drilled burner ports help reduce whistling and burner noise
• Built-in weep holes prevent water accumulation
• Ring burner delivers even flame distribution and strong heat output
• Designed for larger fire features requiring higher gas capacity
• Works best with 2" - 4" of fire glass coverage
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Includes propane air mixer for whole house propane applications
• Recommended for certified NFI professional installation

Product Specifications

• Product Weight: 36 lbs
• Material: 100% Stainless Steel (Handcrafted)
• Color: Stainless Steel

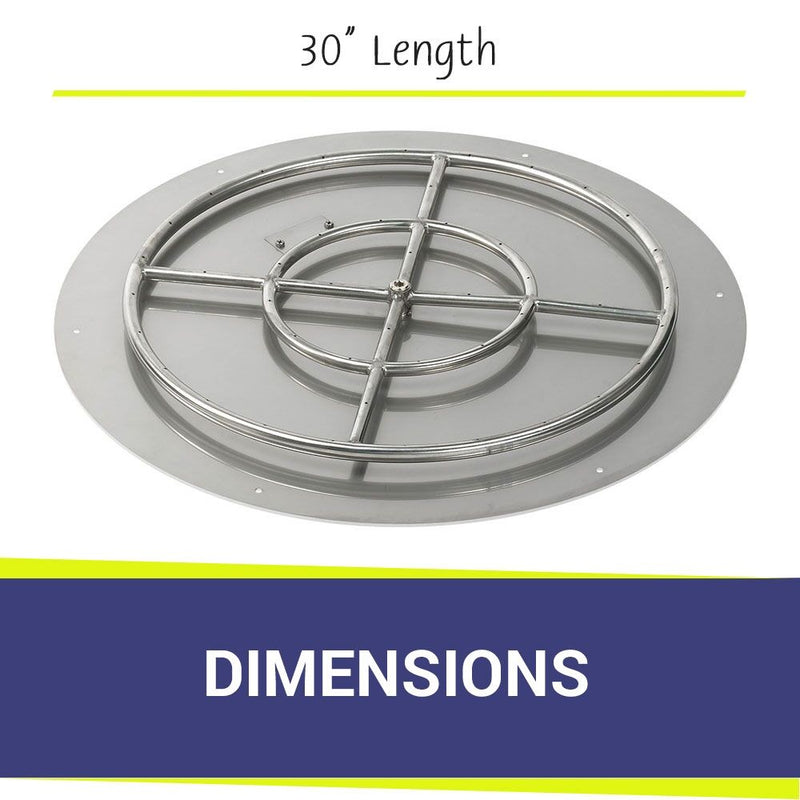

• Pan Dimensions: 30" Round
• Burner Size: 24" Ring Burner
• Burner Material: 304 Stainless Steel
• Fire Glass Capacity: Not Specified (Fire Glass Not Included)
• Fuel Type: Whole House Propane
• Gas Line Requirement: 3/4" Gas Line Required
• Gas Inlet: 3/4" Bottom Gas Inlet
• Inlet / Outlet Size: 3/4" FPT
• Burner Heat Rating: 297,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 780,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 1/2" x 4 1/2" x 5"
• Ring Burner Features: Drilled burner holes to prevent whistling
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

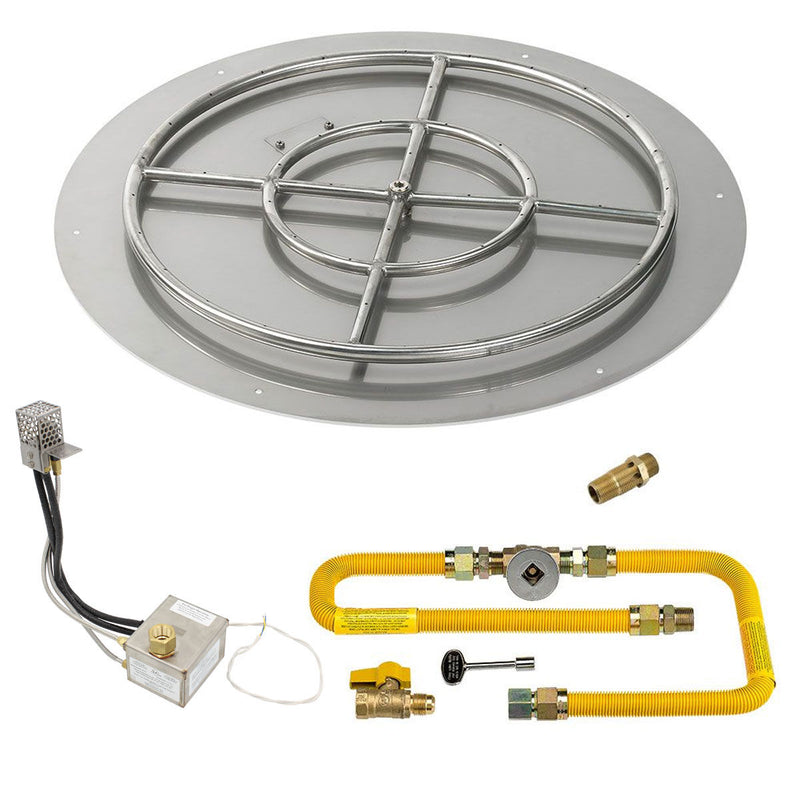

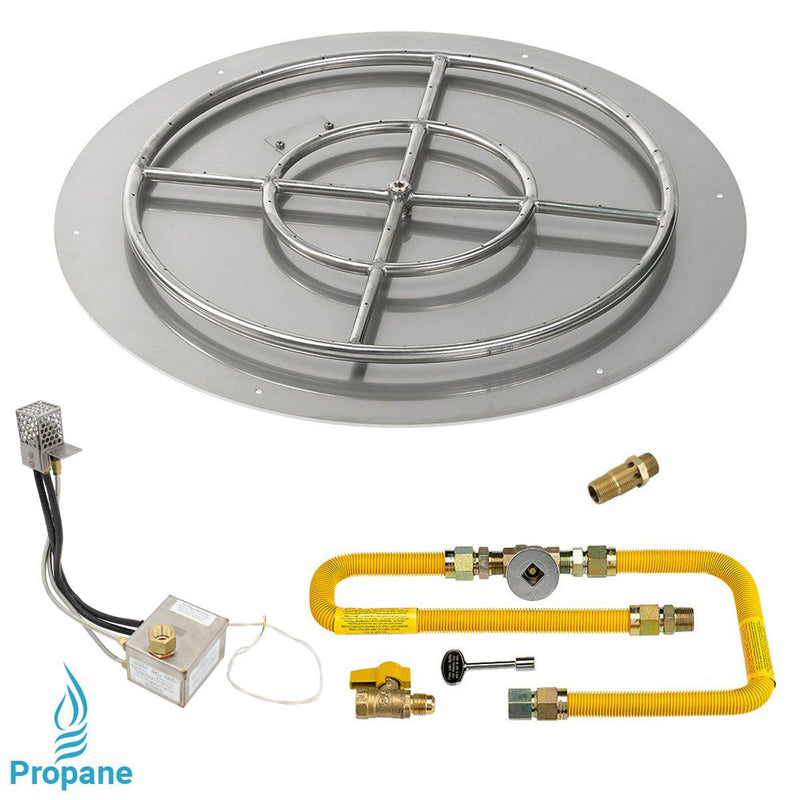

• Included Components
  • 30" Round Stainless Steel Flat Burner Pan
  • 24" Stainless Steel Ring Burner
  • High Capacity AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
