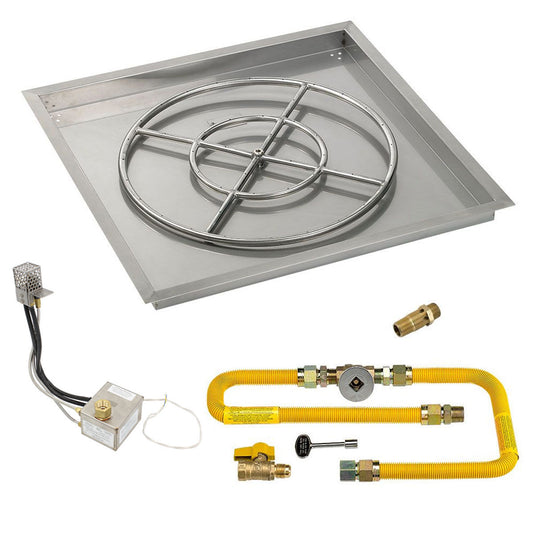

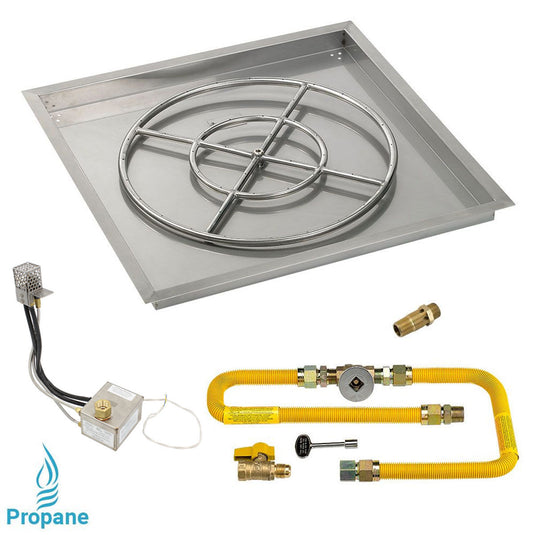

American Fire Products 30" Square Drop-In Pan with High-Capacity AWEIS System (24" Ring) - Whole House Propane

Create a powerful and visually striking outdoor fire feature with the American Fire Products 30" Square Drop-In Pan with High-Capacity AWEIS System (24" Ring) - Whole House Propane. Designed for larger outdoor fire features, this complete system combines a 30-inch stainless steel drop-in pan, 24-inch 304 stainless steel ring burner, and high-capacity AWEIS electronic ignition system for convenient electronic ignition and high-output flame performance.

The 30-inch square drop-in pan is handcrafted from 100% 304 stainless steel and features a convenient lip for easy installation and removal. Its false-bottom design reduces the amount of fire glass required, while built-in drilled weep holes help prevent water accumulation. The included 24-inch ring burner is made from high-grade 304 stainless steel and features a cross-bar design for better flame distribution. Drilled burner holes help prevent loud whistling noises.

The High-Capacity AWEIS (All Weather Electronic Ignition System) includes Hot Surface Ignition and a thermopile with an automatic flame sensor for additional safety. With a maximum AWEIS output of 512,000 BTU/hr, the system is designed for larger fire features requiring a large amount of gas. The system is designed specifically for outdoor, vented, whole house propane fire features and includes a propane air mixer for propane applications.

Features

• Complete 30" square drop-in pan with 24" ring burner and high-capacity AWEIS system
• Designed for outdoor, vented, whole house propane fire features only
• Handcrafted 100% 304 stainless steel drop-in pan
• Convenient pan lip allows for easy installation and removal
• False-bottom design reduces the amount of fire glass required
• Built-in drilled weep holes help prevent water accumulation
• Includes a 24" high-grade 304 stainless steel ring burner
• Cross-bar burner design provides better flame distribution
• Drilled burner holes help prevent loud whistling noises
• Ring burner works best under 2" - 4" of fire glass
• Includes a 3/4" bottom gas inlet
• High-Capacity AWEIS electronic ignition system
• Hot Surface Ignition control electronically opens and closes the gas valve
• Thermopile with automatic flame sensor for additional safety
• AWEIS maximum output of 512,000 BTU/hr
• Includes Propane Air Mixer for whole house propane applications
• Includes 24V transformer
• Includes safety shut-off valve
• Includes key valve
• Includes two gas flex lines
• Certified NFI Professional installation recommended

Product Specifications

• Product Weight: 43 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Shape: Square
• Pan Dimensions: 30" L x 30" W x 2" D
• Flange: 1 1/4"
• Fuel Type: Whole House Propane
• Fire Glass Requirement: 94 lbs (Not Included)
• Burner Type: Ring Burner
• Burner Size: 24"
• Burner Heat Rating: 297,000 BTU/hour maximum
• Ring Burner Features: Drilled holes, not punched, to help prevent whistling
• Gas Inlet: 3/4" Bottom Gas Inlet
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• AWEIS Maximum Output: 512,000 BTU/hr
• Inlet / Outlet Size: 3/4" FPT
• Operating Voltage: 24 Volts AC
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 1/2" x 4 1/2" x 5" (Tall)
• Application: Outdoor, vented, whole house propane fire features only
• Installation: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components:
  • 30" Square Stainless Steel Drop-In Pan
  • 24" Stainless Steel Ring Burner
  • High-Capacity AWEIS Electronic Ignition Kit
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
