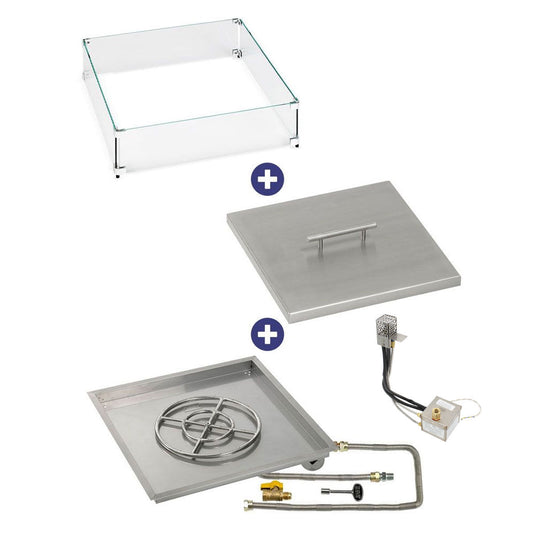

American Fire Products 30" Square Stainless Steel Drop-In Pan with AWEIS System (18 Ring) - Natural Gas Bundle

American Fire Products 30" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Natural Gas Bundle is a high-performance outdoor fire pit burner system designed for custom natural gas fire features requiring advanced electronic ignition and durable construction. This complete bundle includes a 30-inch square 304 stainless steel drop-in pan, 18-inch stainless steel ring burner, AWEIS All Weather Electronic Ignition System, tempered glass flame guard, and stainless steel burner cover.

The large square drop-in pan creates a false bottom that helps reduce fire glass usage while maintaining a full, elegant flame appearance. The 18-inch stainless steel ring burner delivers consistent flame distribution with drilled burner ports, while the AWEIS electronic ignition system provides reliable switch-operated ignition with built-in safety controls.

Perfect for large residential and commercial outdoor fire pits, patios, and entertainment areas, this American Fire Products bundle combines premium stainless steel craftsmanship, automated ignition technology, and professional-grade performance for a long-lasting outdoor fire experience.

Features

• Complete natural gas fire pit bundle includes stainless steel drop-in pan, ring burner, AWEIS electronic ignition system, flame guard, and burner cover
• Constructed from 100% handcrafted 304 stainless steel for superior durability and heat resistance
• 30-inch square drop-in pan designed for custom outdoor natural gas fire pit installations
• Raised flange design provides secure placement and easy installation
• Creates a false bottom to reduce fire glass usage while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for reliable and even flame distribution
• Drilled burner ports help reduce whistling noises during operation
• Crossbar burner design improves flame consistency and flame spread
• Supports up to 100 lbs of fire glass (not included)
• AWEIS All Weather Electronic Ignition System provides automatic and reliable ignition
• Hot Surface Ignition (Glow Plug) technology with intermittent pilot safety operation
• Includes 24V transformer, safety shut-off valve, key valve, and two gas flex lines
• Thermopile flame sensing system provides enhanced safety monitoring
• AWEIS system supports up to 290,000 BTU/hour maximum output
• Tempered glass flame guard provides wind protection and improves flame visibility
• 304 stainless steel burner cover protects the fire pit burner when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented natural gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 30" L × 30" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 100 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Product Weight: 39 lbs
• Installation: Certified NFI professional recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS All Weather Electronic Ignition System
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile
  • Ignition Source: Pilot
  • Maximum BTU Output: 290,000 BTU/hour
  • Operating Voltage: 24V AC
  • Inlet / Outlet Size: 1/2" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V transformer, safety shut-off valve, key valve, and two gas flex lines
  • Warranty: Pan & Burner - 5 Year Limited Warranty / Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 35.5" × 35.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 33" × 33" × 1.5"
• Bundle Includes
  • (1) 30" Square Stainless Steel Drop-In Pan with AWEIS System (18" Ring) - Natural Gas
  • (1) Square Tempered Glass Flame Guard (35.5" × 35.5" × 6")
  • (1) Square Stainless Steel Burner Cover (33" × 33" × 1.5")
