American Fire Products 30" Stainless Steel Square Drop In Pan With 18" Ring

American Fire Products 30" Stainless Steel Square Drop-In Fire Pit Pan With 18" Fire Ring is designed to create a stunning square fire feature while simplifying installation and improving flame performance. This complete fire pit pan system includes an 18-inch stainless steel fire ring burner, allowing you to create a beautiful and evenly distributed flame display without purchasing additional burner components.

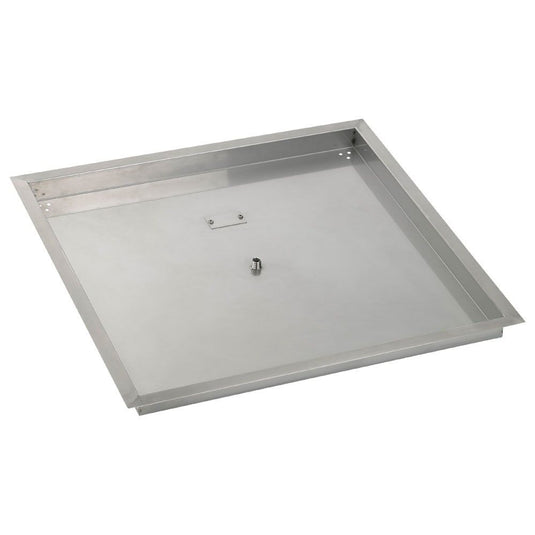

The square drop-in pan features a convenient installation lip that allows it to be easily placed into custom fire pit applications while creating a false bottom to reduce the amount of fire glass needed. This helps achieve a full, luxurious fire glass appearance while using less decorative media.

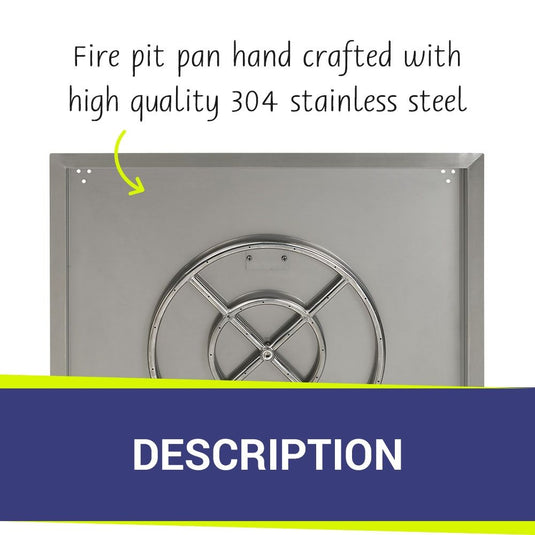

Handcrafted from high-quality 304 stainless steel, this fire pit pan is built to withstand extreme heat and harsh outdoor conditions without rusting or corroding. The included 18-inch fire ring burner is also made from 304 stainless steel and features drilled burner holes for smooth, consistent flames while helping prevent unwanted whistling sounds.

With a built-in 1/2-inch bottom gas inlet, integrated weep holes for water drainage, and a maximum heat output of 147,000 BTU/hour, this square drop-in fire pit pan is designed for reliable performance in outdoor vented natural gas or propane fire features.

(For propane applications, a propane air mixer is required.)

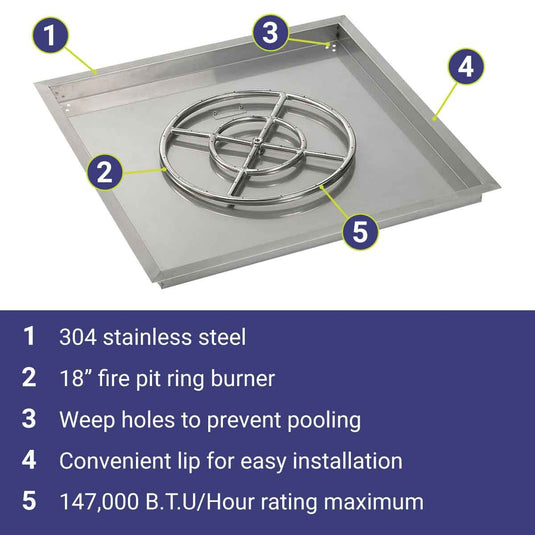

Features

• 30" square stainless steel drop-in fire pit pan

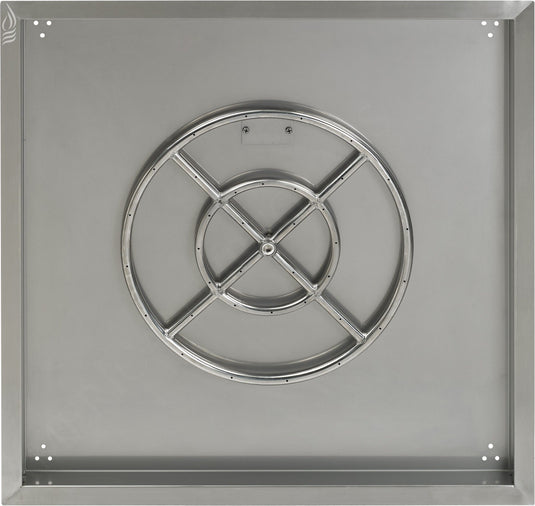

• Includes 18" stainless steel fire ring burner
• Handcrafted from durable 304 stainless steel
• Convenient lip design for easy installation
• Creates a false bottom to reduce fire glass usage
• Provides even flame distribution for a beautiful fire display

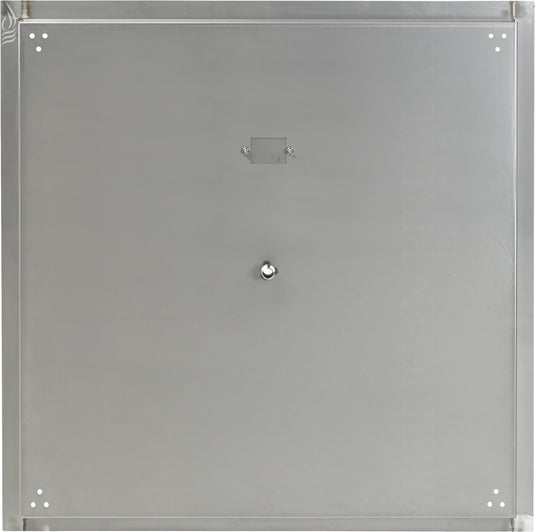

• Built-in 1/2" bottom gas inlet for easy connection
• Integrated weep holes help prevent water pooling
• Drilled burner holes help reduce burner noise
• Produces up to 147,000 BTU/hour maximum heat output
• Designed for outdoor vented natural gas and propane fire features
• Propane applications require a propane air mixer
• Built to withstand extreme outdoor weather conditions
• Ideal for custom square fire pits, fire tables, and outdoor living spaces

Product Specifications

• Brand: American Fire Products

• Product Type: Square Drop-In Fire Pit Pan
• Material: Handcrafted 304 Stainless Steel

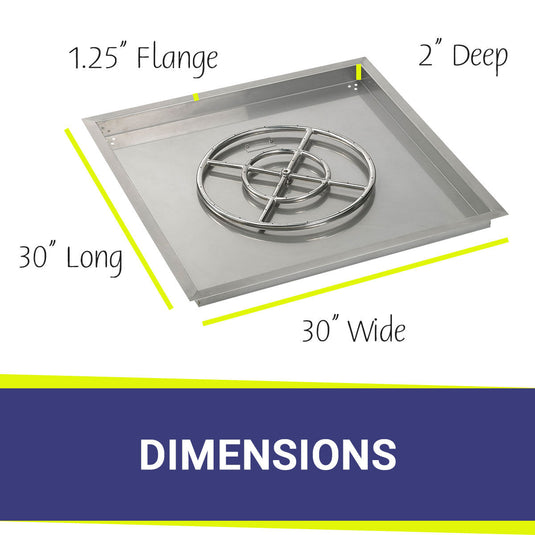

• Dimensions: 30" L × 30" W × 2" D
• Flange: 1.25"
• Weight: 23 lbs
• Description: Stainless steel square fire pit pan with included fire ring burner
• Burner Included: 18" Fire Ring Burner
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: 147,000 BTU/Hour Maximum
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Kit Includes
  • 30" Stainless Steel Square Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Ring Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
