American Fire Products 30" x 10" Rectangular Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

American Fire Products 30" x 10" Rectangular Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas Bundle is a complete outdoor fire feature solution designed for reliable performance, easy ignition, and a modern flame display. This bundle includes a durable stainless steel rectangular drop-in burner pan with built-in H-burner, push-button spark ignition kit, tempered glass flame guard, and stainless steel burner cover.

The 30" x 10" drop-in fire pit pan features a raised flange design for simple installation into custom fire pits and a false-bottom construction that reduces fire glass requirements while maintaining a full and elegant appearance. The built-in H-burner provides an even flame pattern, while the push-button spark ignition system allows quick and convenient operation.

Designed for outdoor vented natural gas fire features, this complete bundle provides everything needed for a professional-looking fire pit installation with enhanced safety, durability, and performance.

Features

• Complete natural gas fire pit bundle includes burner pan, spark ignition kit, flame guard, and burner cover
• Push-button spark ignition system provides quick and reliable flame ignition
• Made from high-quality stainless steel for durability and corrosion resistance
• Built-in H-burner creates a consistent and attractive flame pattern
• Drop-in design with flange lip allows easy installation into custom fire pits
• Creates a false bottom to reduce the amount of fire glass required
• Includes drilled weep holes to help prevent water accumulation
• Drilled burner holes reduce whistling and improve flame performance
• Includes chrome key valve and gas connection accessories
• Optional push-button ignitor mounting plate available for a clean installation
• Tempered glass flame guard improves safety and enhances flame reflection
• Stainless steel burner cover protects the fire pit pan when not in use
• Supports up to 31 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features

Product Specifications

• Brand: American Fire Products
• Material: Hand-crafted High-Quality Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 30" L x 10" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 31 lbs (not included)

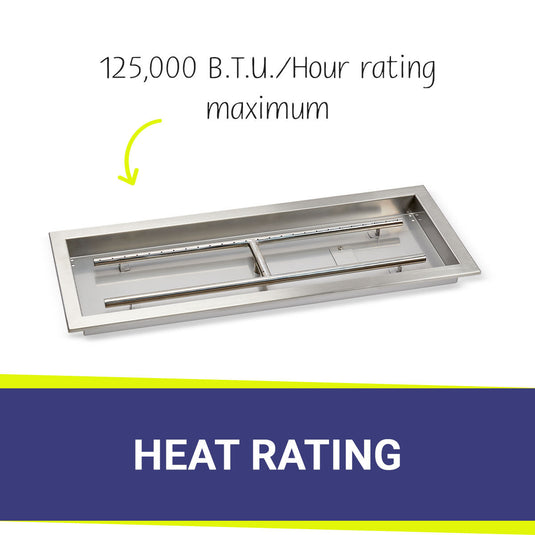

• Maximum Heat Output: 125,000 BTU/hour
• Ignition Type: Push-Button Spark Ignition
• Burner Hole Design: Drilled holes to prevent whistling
• Application: Outdoor vented natural gas fire features
• Product Weight: 15 lbs
• Spark Ignition Kit Includes
  • Push-Button Spark Ignitor (Battery Included)
  • Chrome Key Valve with Key
  • Two 5 ft Gas Hoses
  • Optional Push-Button Ignitor Mounting Plate
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 35.5" x 15.5" x 6"
• Burner Cover Specifications
  • Material: 304 Stainless Steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 33" x 13" x 1.5"

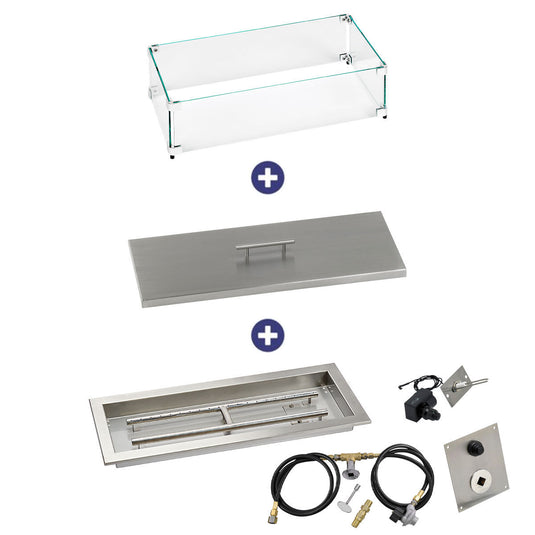

• Bundle Includes
  • (1) 30" x 10" Rectangular Drop-In Pan with Spark Ignition Kit - Natural Gas
  • (1) Rectangular Flame Guard (35.5" x 15.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (33" x 13" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
