American Fire Products 30" x 10" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane

The American Fire Products 30" x 10" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane is a compact yet powerful fire pit solution designed for reliable ignition, clean flame performance, and long-lasting outdoor durability. Ideal for residential and commercial fire features, this complete system combines a premium stainless steel drop-in pan, integrated H-burner, and advanced AWEIS electronic ignition system for safe and convenient operation.

Constructed from heavy-duty 304 stainless steel, this drop-in pan is engineered to withstand high heat, harsh weather conditions, and long-term outdoor exposure without rust or corrosion. The integrated flange design allows for easy drop-in installation and removal, making it ideal for custom fire pit builds. Its false-bottom design helps reduce fire glass requirements while still delivering a full, visually striking flame presentation.

The built-in H-burner system produces a consistent, even flame pattern, while drilled burner ports eliminate whistling for smooth and quiet operation. Paired with the AWEIS (All Weather Electronic Ignition System), this unit ensures safe, automatic ignition with flame-sensing protection, making it a dependable choice for whole house propane fire applications.

Features

• Complete 30" x 10" rectangular fire pit system with AWEIS electronic ignition
• Designed for whole house propane outdoor vented fire features
• Built-in stainless steel H-burner for consistent flame performance
• Heavy-duty 304 stainless steel construction for corrosion and heat resistance
• Drop-in design with integrated flange for easy installation and removal
• False-bottom design reduces fire glass usage and installation cost
• Drilled burner ports ensure quiet operation with no whistling
• Integrated weep holes prevent water accumulation
• Advanced AWEIS hot surface ignition system with flame sensing safety
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Ideal for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 25 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Style: Contemporary
• Dimensions: 30" L x 10" W x 2" D x 1 1/4" Flange
• Fuel Type: Whole House Propane
• Fire Glass Capacity: 31 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel H-Burner
• Burner Heat Rating: 125,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

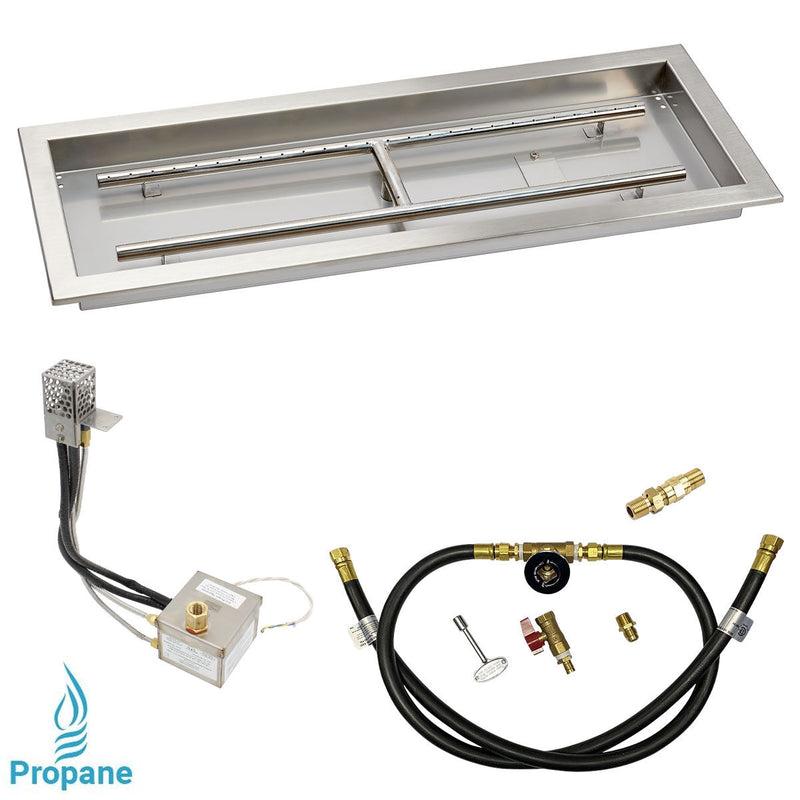

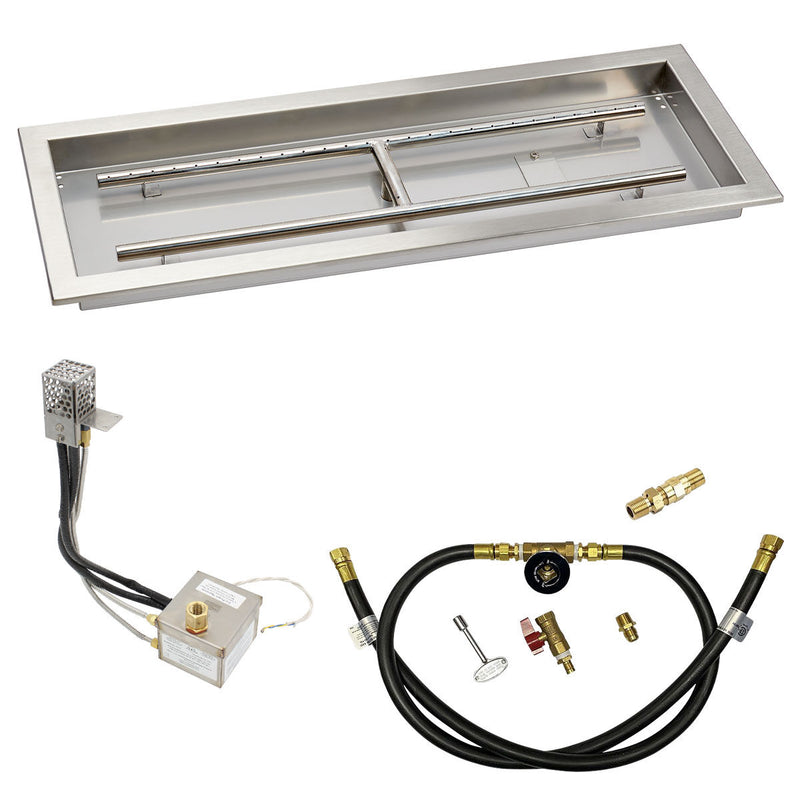

• Included Components
  • 30" x 10" Rectangular Stainless Steel Drop-In Pan
  • Built-In Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
