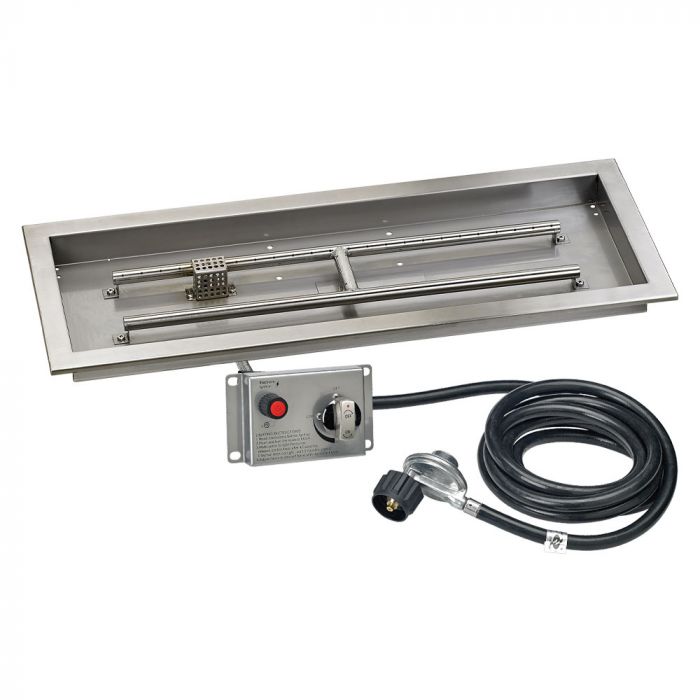

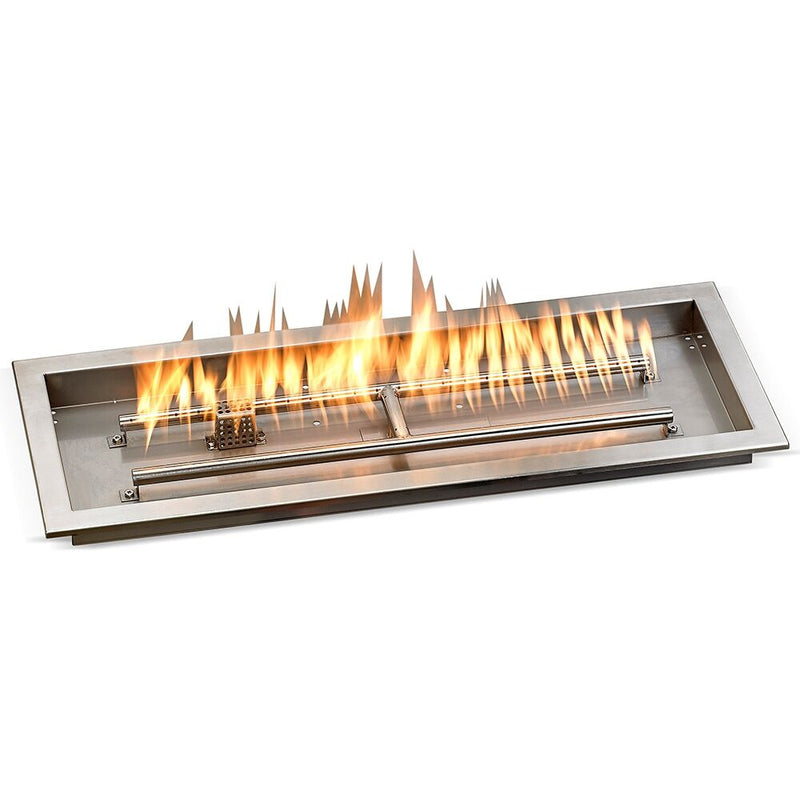

American Fire Products 30" x 10" Stainless Steel Rectangular Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

The American Fire Products 30" x 10" Stainless Steel Rectangular Drop-in Fire Pit Pan with Electric Ignition System Kit, CSA Certified is a compact, high-performance fire pit solution designed for safe and reliable outdoor fire features. Ideal for residential and light commercial applications, this premium burner system delivers consistent flame performance, modern ignition technology, and long-term durability.

Constructed from heavy-duty 304 stainless steel, this drop-in fire pit pan is engineered to resist rust, corrosion, and harsh outdoor environments. The precision-drilled burner ports ensure smooth flame distribution while helping eliminate unwanted whistling noises for a cleaner burn experience.

This CSA-certified system includes an advanced electric ignition system with push-button spark ignition, flame-sensing thermocouple safety protection, and adjustable flame control. If the flame is extinguished, the system automatically shuts off the gas supply to ensure maximum safety.

Designed for flexibility, this unit ships ready for propane use and can be converted to natural gas, making it ideal for custom fire pits, outdoor tables, patios, and compact landscape fire designs.

Features

• Complete 30" x 10" rectangular drop-in fire pit burner system
• Includes CSA Certified electric ignition system kit
• Built from premium 304 stainless steel for durability and corrosion resistance
• Designed for outdoor vented propane and natural gas fire features
• Push-button rapid spark ignition for quick and reliable startup
• Integrated flame-sensing thermocouple safety system
• Automatic gas shut-off when flame is extinguished
• Precision-drilled burner ports reduce whistling noise
• Adjustable flame control for customized flame height
• Ships ready for propane use and convertible to natural gas
• Ideal for compact fire pits, patios, and outdoor living spaces
• CSA Certified to ANSI Z21.97-2014 / CSA 2.41-2014 standards
• Recommended for professional NFI installation

Product Specifications

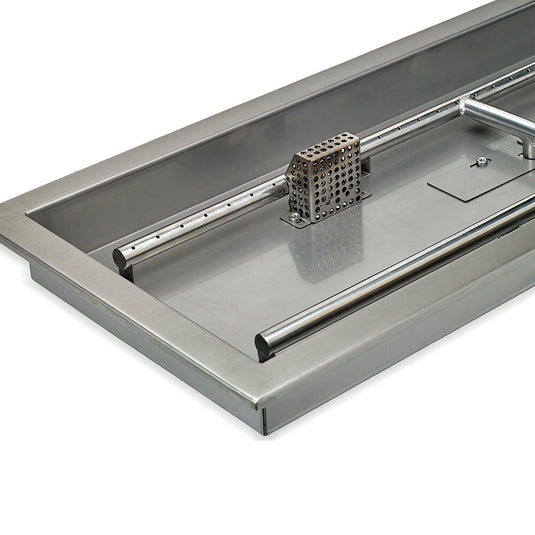

• Material: 100% 304 Stainless Steel (Handcrafted)

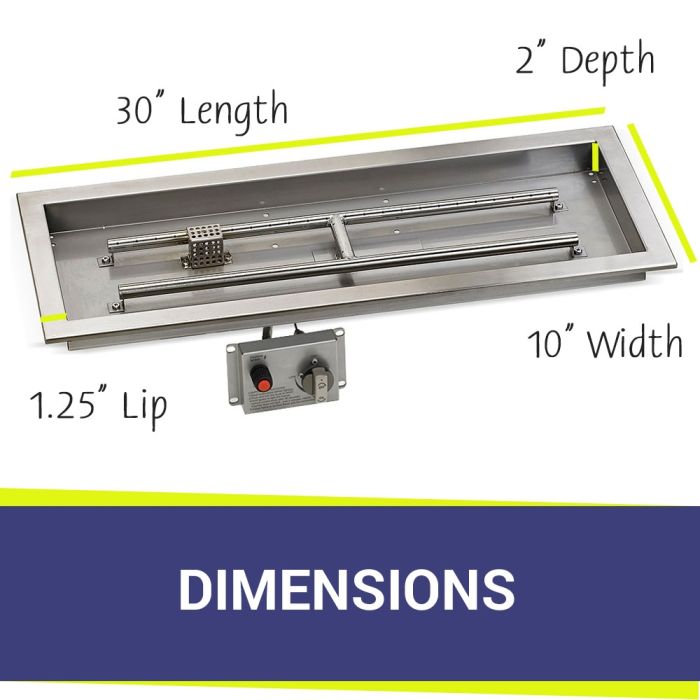

• Pan Dimensions: 30" x 10"
• Cutout Size: 31" x 11"
• Fire Glass Capacity: 40 lbs (not included)

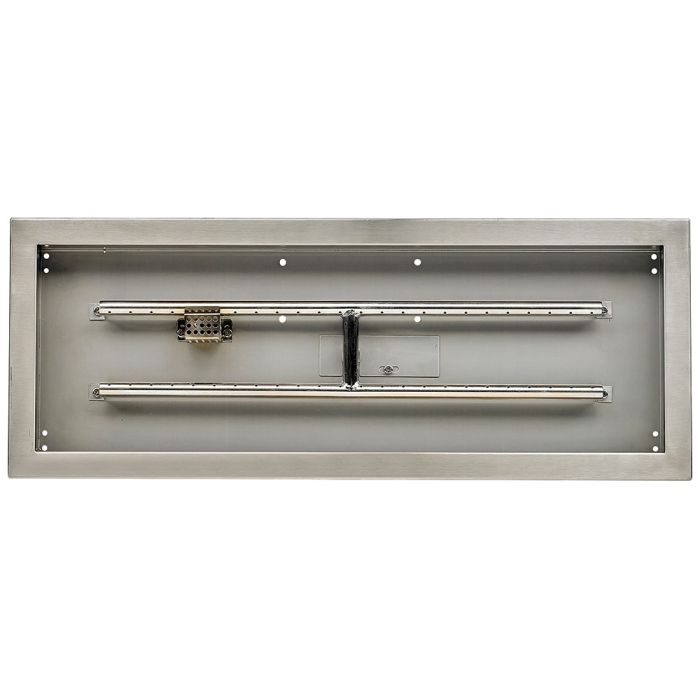

• Burner Type: Rectangular stainless steel burner
• Burner Design: Drilled ports (not punched) to reduce whistling
• Fuel Type: Propane (convertible to Natural Gas)

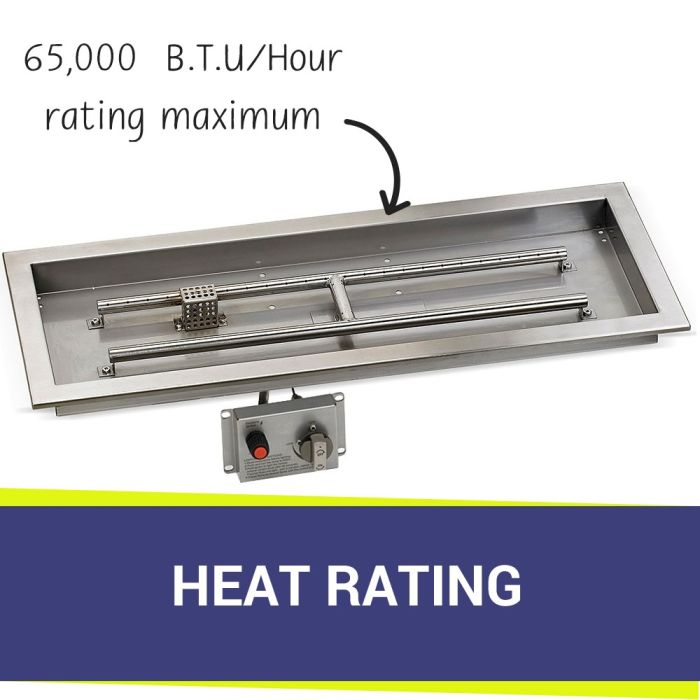

• Heat Output: Up to 65,000 BTU/hour
• Ignition Type: Push-button electronic spark ignition
• Ignition System: Rapid-fire ignition sequence
• Flame Safety: Thermocouple automatic gas shut-off
• Control System: Adjustable flame control panel included
• Power Source: AA battery
• Application: Outdoor vented fire features only
• Installation: Certified NFI professional recommended
• Certification: CSA Certified (ANSI Z21.97-2014 / CSA 2.41-2014)
• Included Components
  • 30" x 10" Stainless Steel Rectangular Drop-In Fire Pit Pan
  • CSA Certified Electronic Ignition Control Panel
  • Flame-Sensing Thermocouple Safety System
  • Push Button Rapid Spark Igniter
  • Adjustable Flame Control Assembly
  • Propane Configuration Kit (Natural Gas Convertible)

Downloads

• User Manual [Download]
