American Fire Products 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

The American Fire Products 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Natural Gas Bundle is a compact, high-performance fire pit solution designed for residential outdoor fire features. Built for convenience, safety, and durability, this complete bundle delivers everything needed to create a reliable and easy-to-use linear flame system with push-button ignition.

Crafted from durable high-quality stainless steel, the 30-inch linear drop-in burner pan is engineered for long-lasting outdoor performance. The built-in T-burner produces a clean, consistent flame while drilled weep holes help prevent water buildup and improve operational safety.

This system features a push-button spark ignition system (battery included) for simple, reliable startup—no match or manual lighting required. Combined with included gas connection accessories and key valve components, this kit provides a complete and user-friendly fire pit ignition solution.

A tempered glass flame guard improves flame stability in windy conditions, while the stainless steel burner cover protects the burner when not in use—extending the life and appearance of your fire feature.

Features

• Complete 30" x 6" linear drop-in fire pit system bundle
• Push-button spark ignition system (battery powered)
• Built-in T-burner for even and consistent flame distribution
• Durable high-quality stainless steel construction
• Drilled weep holes to prevent water accumulation
• Includes gas hose and chrome key valve connection kit
• Optional ignition mounting plate available
• Designed for outdoor vented natural gas fire features only
• Simple manual control + electronic ignition combination
• Includes tempered glass flame guard for wind protection
• Includes stainless steel burner cover for protection and longevity
• Ideal for small patios, residential fire pits, and DIY installations
• Recommended professional installation for safety

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 30" L x 6" W x 2" D (1 1/4" flange)
• Material: High-quality stainless steel (handcrafted)
• Product Weight: 13 lbs
• Fire Glass Capacity: 20 lbs (not included)
• Burner Type: Built-in Linear T-Burner
• Fuel Type: Natural Gas Only
• Heat Output: Up to 60,000 BTU/hour
• Ignition Type: Push Button Spark Ignition (Battery Included)
• Gas Connection: Includes gas hose + chrome key valve + key
• Control System: Manual gas control with electronic spark ignition
• Gas Inlet: 1/2" bottom inlet
• Installation Requirement: Outdoor vented fire features only
• Flame Guard Size: 35.5" x 11.5" x 6"
• Burner Cover Size: 33" x 9" x 1.5"
• Warranty: Limited manufacturer warranty (varies by component)
• Safety Warning: Prop 65 warning applies

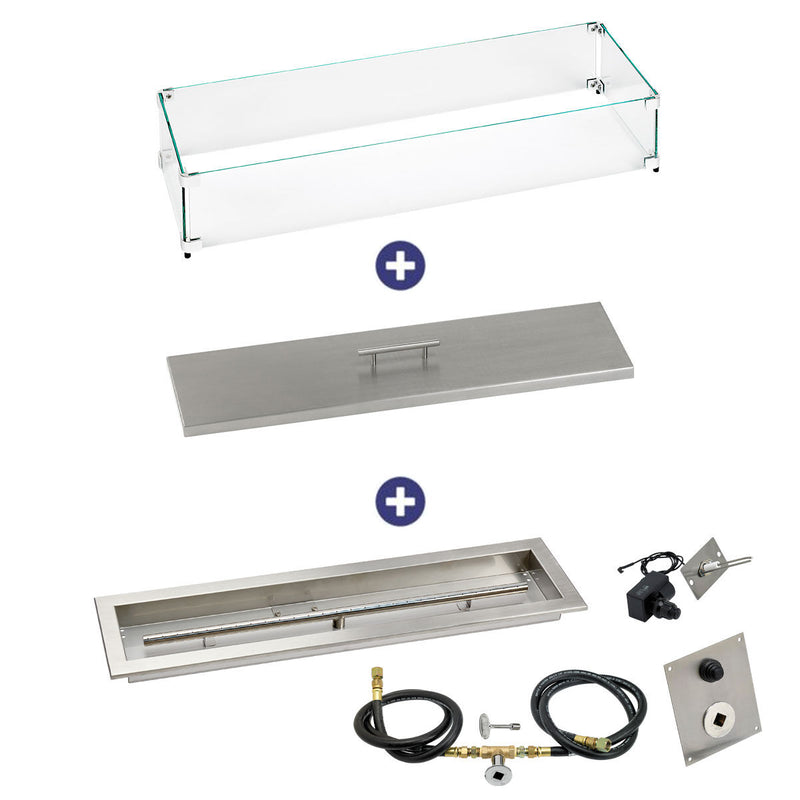

• Bundle Includes
  • 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit (Natural Gas)
  • Linear Tempered Glass Flame Guard (35.5" x 11.5" x 6")
  • Stainless Steel Burner Cover (33" x 9" x 1.5")
  • Gas hose set + chrome key valve + ignition components

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
