American Fire Products 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane Bundle

The American Fire Products 30" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Propane Bundle is a compact, high-performance fire pit system designed for easy ignition and reliable outdoor heating. Perfect for residential fire features, this complete bundle includes a durable stainless steel burner pan, push-button spark ignition system, and essential gas connection accessories for a safe and convenient propane setup.

Crafted from premium 304 stainless steel, the linear drop-in burner pan delivers long-lasting durability, corrosion resistance, and consistent flame performance in outdoor environments. The built-in T-burner ensures an even flame distribution across the length of the pan, while drilled weep holes help prevent water buildup for improved safety and longevity.

The included push-button spark ignition system allows effortless startup with the press of a button, offering a reliable and user-friendly lighting solution. Combined with the included propane regulator, air mixer, and gas hoses, this bundle provides a complete installation-ready fire pit system.

A stainless steel burner cover protects the unit when not in use, while the tempered glass flame guard enhances flame stability and wind resistance, improving both safety and visual appeal.

Features

• Complete 30" x 6" linear fire pit system with spark ignition (Propane)
• Easy push-button ignition system with battery-powered spark starter
• Constructed from heavy-duty 304 stainless steel for durability and corrosion resistance
• Built-in T-burner for consistent and even flame distribution
• Drilled weep holes prevent water accumulation and improve safety
• Includes propane regulator, air mixer, gas hoses, and key valve
• Designed for outdoor vented propane fire features only
• Compact design ideal for smaller fire pits and patio installations
• Includes tempered glass flame guard for wind protection and flame stability
• Includes stainless steel burner cover for protection and longevity
• Ideal for residential patios, backyard fire features, and DIY fire pit builds
• Recommended for professional installation

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 30" L x 6" W x 2" D (1 1/4" flange)
• Material: 304 Stainless Steel (hand crafted)
• Product Weight: 13 lbs
• Fuel Type: Propane Gas
• Burner Type: Built-in T-Burner Linear System
• Heat Output: Up to 60,000 BTU/hour
• Ignition Type: Push Button Spark Ignition (Battery Operated)
• Gas Inlet: 1/2" bottom gas inlet
• Accessories Included: Gas hoses, regulator, key valve, air mixer
• Fire Glass Capacity: 20 lbs (not included)
• Special Feature: Drilled weep holes (anti-whistling design)
• Application: Outdoor vented propane fire features only
• Flame Guard: Tempered glass panels with aluminum brackets
• Burner Cover: 304 stainless steel with brushed finish
• Warranty: Manufacturer limited warranty
• Installation: Professional installation recommended

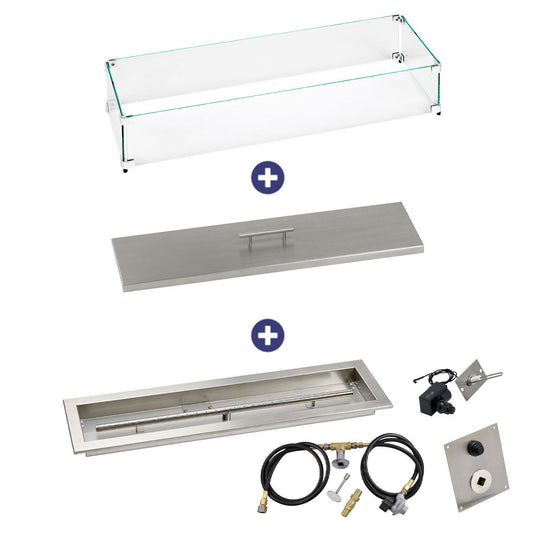

• Bundle Includes
  • 30" x 6" Stainless Steel Linear Drop-In Burner Pan
  • Push Button Spark Ignition Kit (Propane)
  • Gas hoses, regulator, air mixer, and key valve

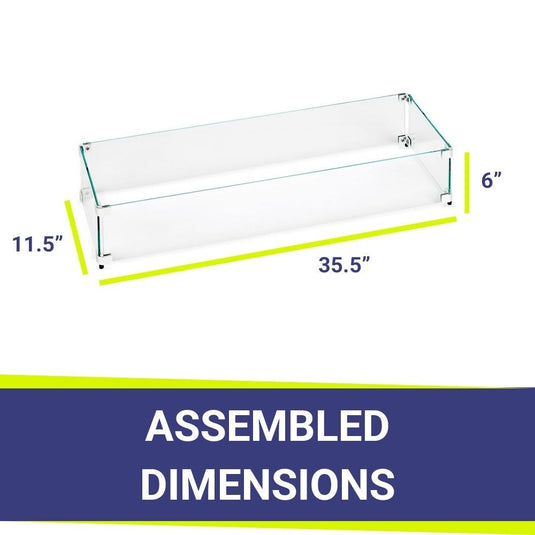

  • Linear Tempered Glass Flame Guard (35.5" x 11.5" x 6")

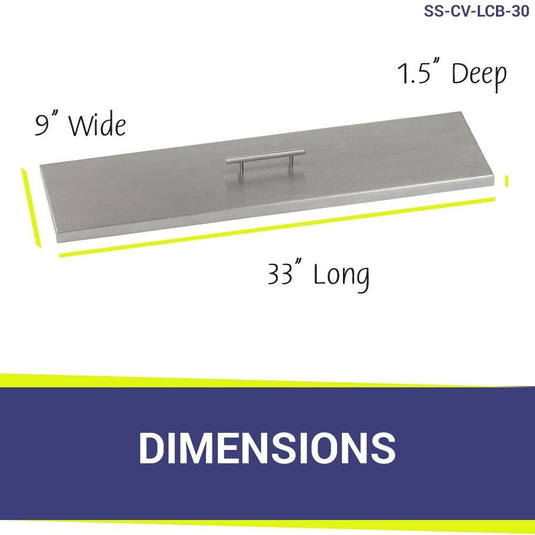

  • Stainless Steel Burner Cover (33" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
