American Fire Products 30" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Whole House Propane Bundle

The American Fire Products 30" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System – Whole House Propane Bundle is a premium complete fire feature kit designed for high-performance outdoor living spaces. This all-in-one system includes a durable stainless steel linear burner pan, advanced electronic ignition system, tempered glass flame guard, stainless steel burner cover, and propane air mixer—delivering a powerful, safe, and visually stunning fire experience.

Built from heavy-duty 304 stainless steel, the 30-inch linear drop-in pan is engineered for long-term durability, corrosion resistance, and high-temperature performance. The built-in T-burner design provides a consistent, even flame pattern, while drilled weep holes help prevent water buildup for improved safety and reliability.

The included AWEIS (All Weather Electronic Ignition System) is designed for whole-house propane applications and features hot surface ignition with integrated thermopile flame sensing for enhanced safety and automatic gas control. This system ensures reliable ignition and stable flame performance for residential and commercial fire features.

A tempered glass flame guard improves flame stability in windy conditions, while the stainless steel burner cover protects the system when not in use, extending the life of your fire feature investment.

Features

• Complete 30" x 6" linear drop-in fire pit system bundle
• Includes advanced AWEIS ignition system (Whole House Propane)
• Constructed from premium 304 stainless steel for maximum durability
• Built-in T-burner for even and consistent flame distribution
• Drilled weep holes prevent water accumulation inside burner pan
• Designed for outdoor vented whole house propane fire features only
• Hot surface ignition (glow plug) system for reliable startup
• Integrated thermopile flame sensing safety system
• Includes propane air mixer for optimized combustion performance
• Tempered glass flame guard improves wind resistance and flame stability
• Stainless steel burner cover protects system when not in use
• Ideal for patios, outdoor kitchens, and luxury fire tables
• Recommended for certified NFI professional installation

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 30" L x 6" W x 2" D (1 1/4" flange)
• Material: 100% 304 Stainless Steel (Handcrafted)
• Product Weight: 22 lbs
• Fire Glass Capacity: 20 lbs (not included)
• Burner Type: Built-in T-Burner Linear System
• Fuel Type: Whole House Propane Gas Only
• Heat Output: Up to 60,000 BTU/hour
• AWEIS Max Output: 290K BTU/hr system capacity
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Flame Safety: Thermopile flame sensing system
• Control System: Electronic ignition gas valve system
• Gas Inlet Size: 1/2" FPT (bottom inlet)
• Operating Voltage: 24V AC
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Installation Requirement: Certified NFI professional recommended
• Application: Outdoor vented fire features only
• Warranty: Pan & Burner 5 years / Kit 1 year limited warranty

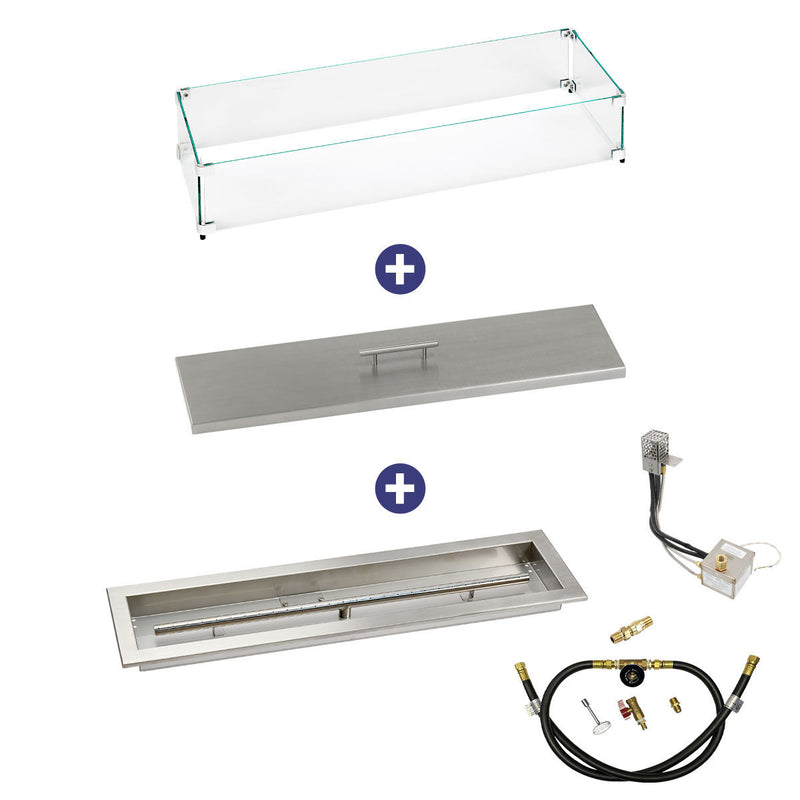

• Bundle Includes
  • 30" x 6" Stainless Steel Linear Drop-In Burner Pan with AWEIS System (Whole House Propane)

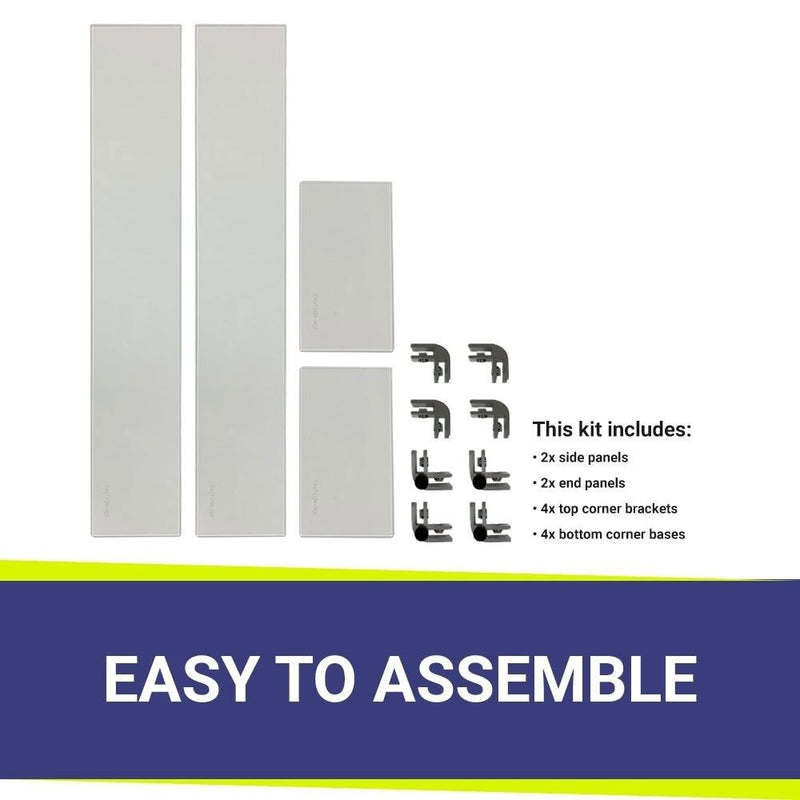

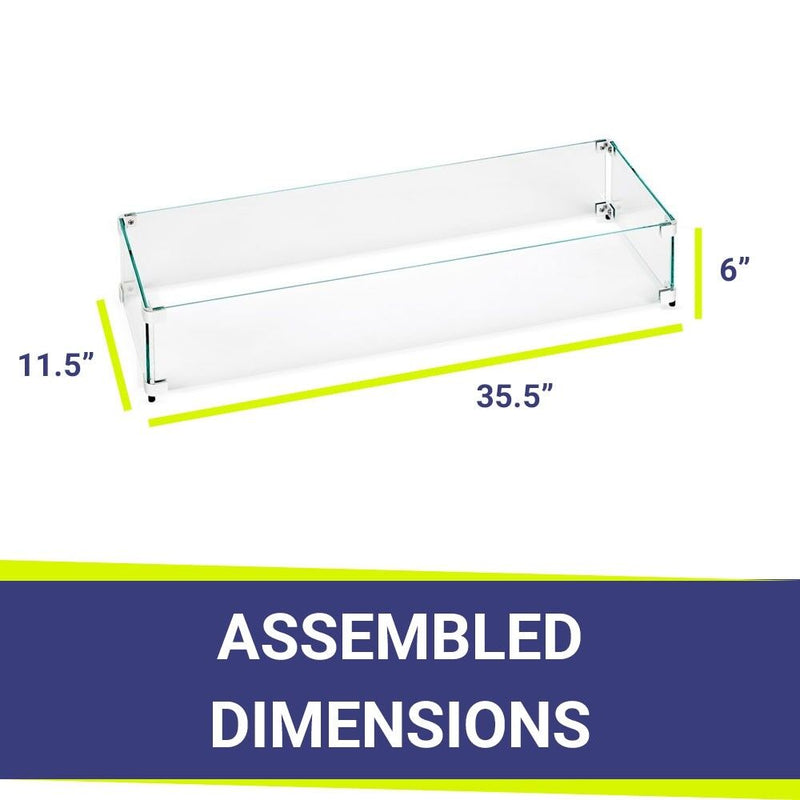

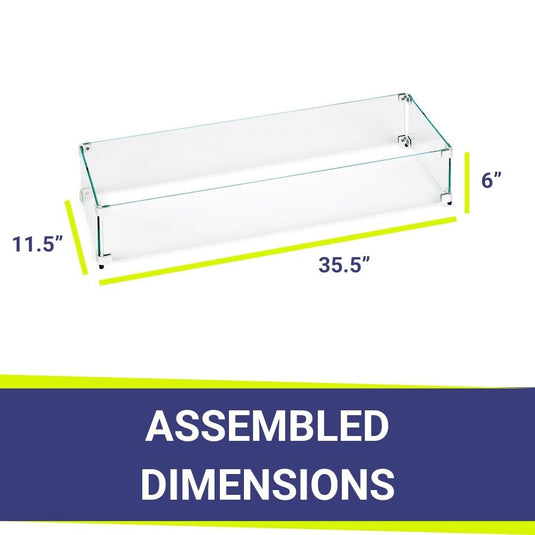

  • Linear Tempered Glass Flame Guard (35.5" x 11.5" x 6")

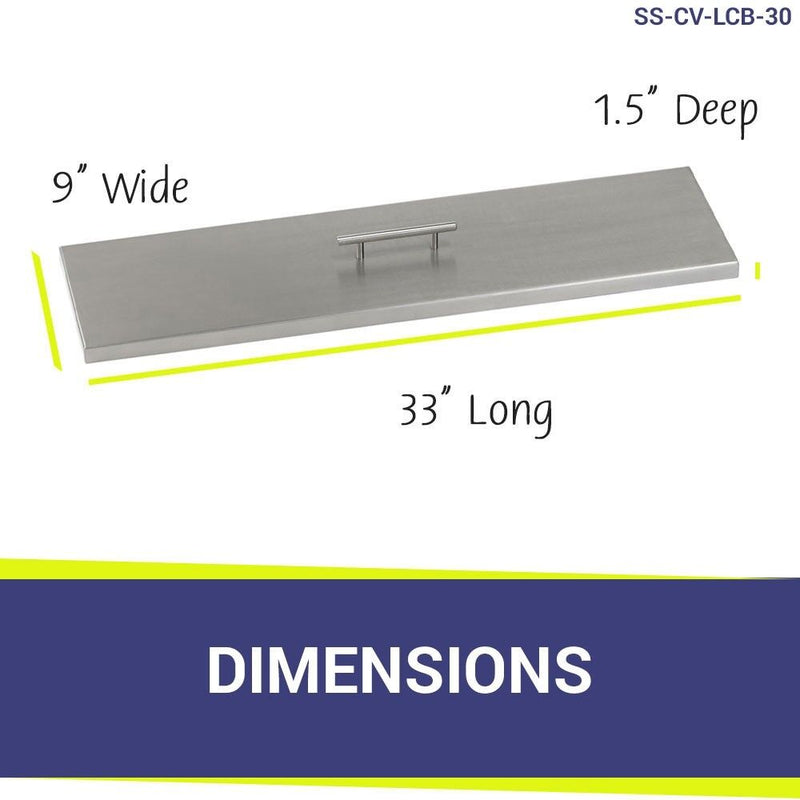

  • Stainless Steel Burner Cover (33" x 9" x 1.5")
  • Propane Air Mixer + Integrated ignition and safety components

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
