American Fire Products 30" x 6" Stainless Steel Linear Drop-In Pan

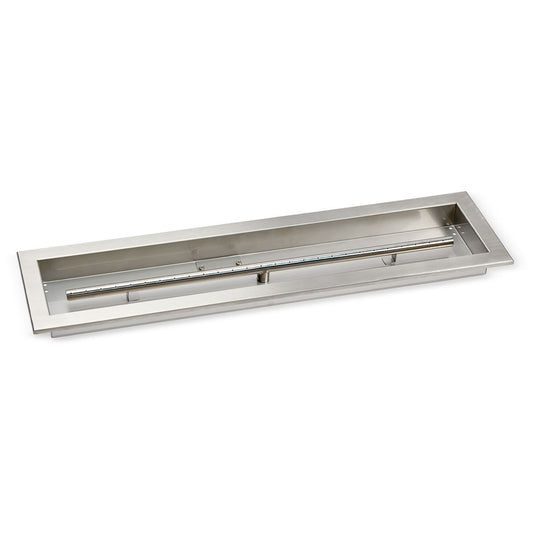

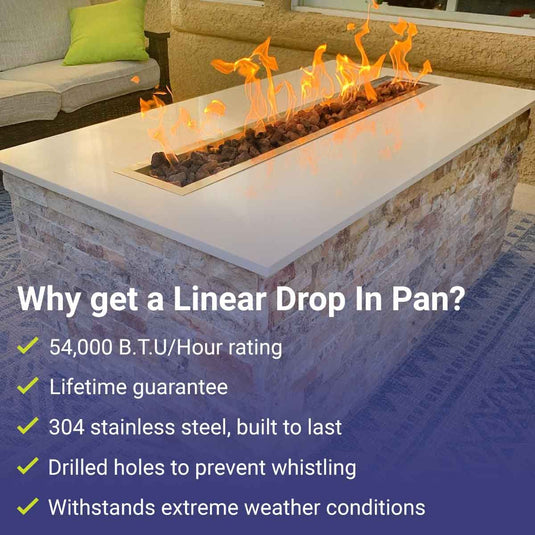

American Fire Products 30" x 6" Stainless Steel Linear Drop-In Pan is designed to create a beautiful linear flame while reducing the amount of fire glass needed for your outdoor fire feature. Featuring a built-in T-burner and a convenient drop-in design with a 1-1/4-inch flange, this premium fire pit pan creates a false bottom that minimizes fire glass usage while producing an even, impressive flame display.

Handcrafted from high-quality 304 stainless steel, this linear drop-in pan is built to withstand extreme temperatures and harsh outdoor weather without rusting or corroding. The precision-drilled burner holes provide smooth, quiet flames by preventing loud whistling, while the integrated weep holes help prevent water accumulation inside the pan. A built-in 1/2-inch gas inlet allows for quick and convenient installation with natural gas or propane fire features.

Designed exclusively for outdoor vented fire features, this burner pan delivers up to 54,000 BTU/hour of heat and requires approximately 20 pounds of fire glass (sold separately) for optimal performance. For propane installations, a propane adapter is required.

Features

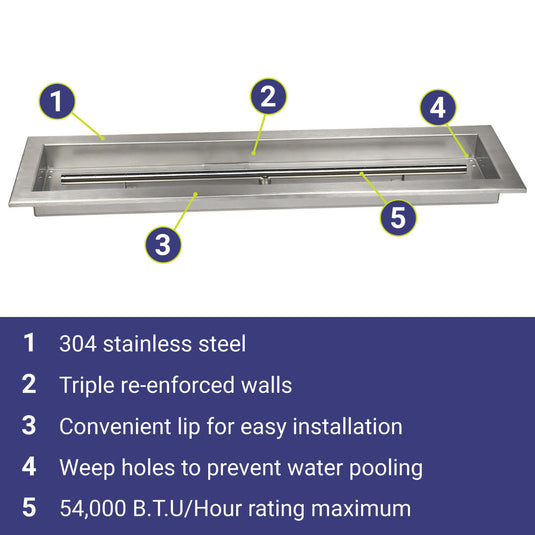

• Premium 30" x 6" stainless steel linear drop-in fire pit pan
• Handcrafted from 304 stainless steel for superior durability
• Built-in T-burner creates an even, linear flame pattern
• Drop-in design creates a false bottom to reduce fire glass usage

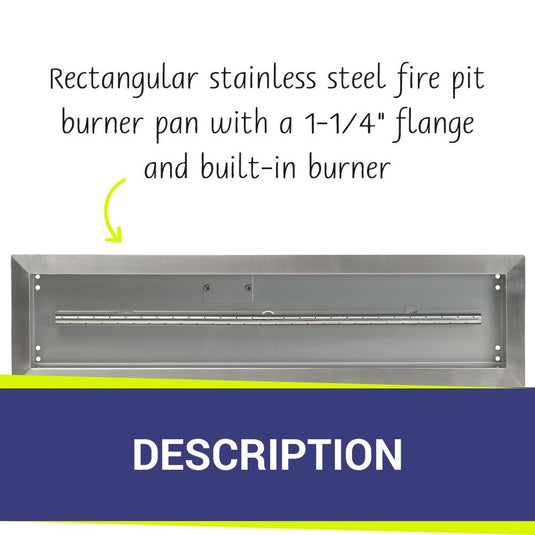

• 1-1/4-inch flange allows for secure and easy installation
• Precision-drilled burner holes help eliminate loud whistling
• Built-in 1/2-inch bottom gas inlet for simple gas connection
• Built-in weep holes help prevent water accumulation
• Produces up to 54,000 BTU/hour
• Compatible with natural gas and propane fire features
• Designed for outdoor vented fire features only
• Requires approximately 20 lbs of fire glass (not included)
• Propane installations require a propane adapter
• Withstands harsh weather and extreme temperatures
• Ideal for custom fire pits, fire tables, and outdoor fire features

Product Specifications

• Brand: American Fire Products
• Product Type: Linear Drop-In Fire Pit Pan
• Material: Handcrafted 304 Stainless Steel
• Dimensions: 30" L × 6" W × 2" D
• Flange: 1-1/4"
• Weight: 7.85 lbs
• Burner Type: Built-in T-Burner
• Description: Stainless steel fire pit pan with built-in T-burner
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: Up to 54,000 BTU/Hour
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Burner Holes: Precision Drilled (No Whistling)
• Fire Glass Capacity: Requires approximately 20 lbs of Fire Glass (not included)
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Application: Outdoor Fire Pits, Fire Tables, and Custom Fire Features
• Kit Includes
  • 30" x 6" Stainless Steel Linear Drop-In Pan
  • Built-in T-Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
