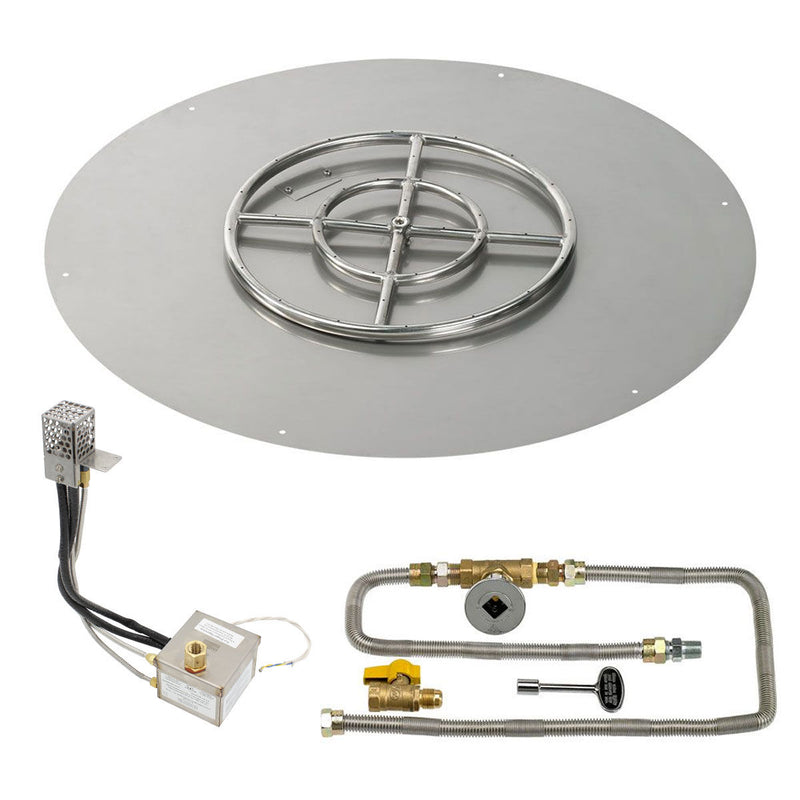

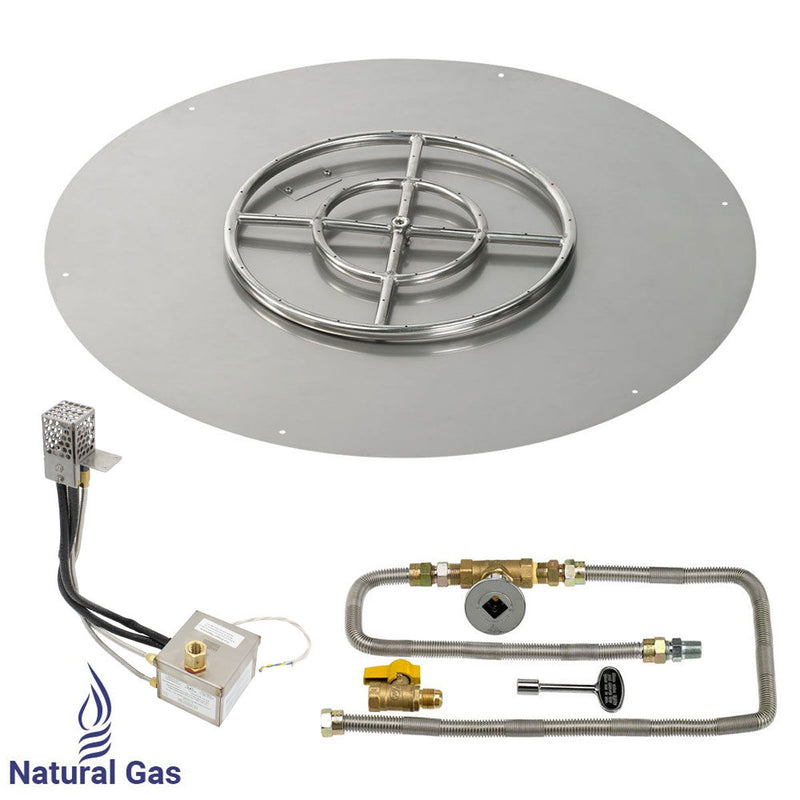

American Fire Products 36" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas

Enhance your outdoor living space with the American Fire Products 36" Round Stainless Steel Flat Pan with AWEIS System (18" Ring) - Natural Gas. Designed for premium outdoor fire pit installations, this complete burner system combines a durable stainless steel flat pan, high-quality ring burner, and advanced electronic ignition technology to deliver a reliable, beautiful, and efficient flame display.

The 36" round flat burner pan is handcrafted from 100% stainless steel to withstand high temperatures and harsh outdoor environments while resisting corrosion and rust. The integrated weep holes help prevent water accumulation, making it ideal for long-term outdoor use.

The included 18" stainless steel ring burner is engineered with drilled burner ports for improved flame performance and reduced operating noise. The AWEIS (All Weather Electronic Ignition System) provides convenient push-button ignition, automatic flame sensing, and reliable operation for natural gas fire features.

Features

• Complete 36" round fire pit burner system with AWEIS electronic ignition
• Designed for natural gas outdoor, vented fire features
• Durable 100% stainless steel flat burner pan construction
• Includes 18" 304 stainless steel ring burner
• Advanced AWEIS hot surface ignition system with thermopile flame sensing
• Provides reliable ignition and automatic flame monitoring
• Drilled burner ports help prevent whistling and unwanted burner noise
• Integrated weep holes help prevent water buildup
• Ring burner provides even flame distribution
• Works best with 2" - 4" of fire glass coverage
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Recommended for professional NFI-certified installation

Product Specifications

• Product Weight: 36 lbs
• Material: 100% Stainless Steel (Handcrafted)
• Color: Stainless Steel

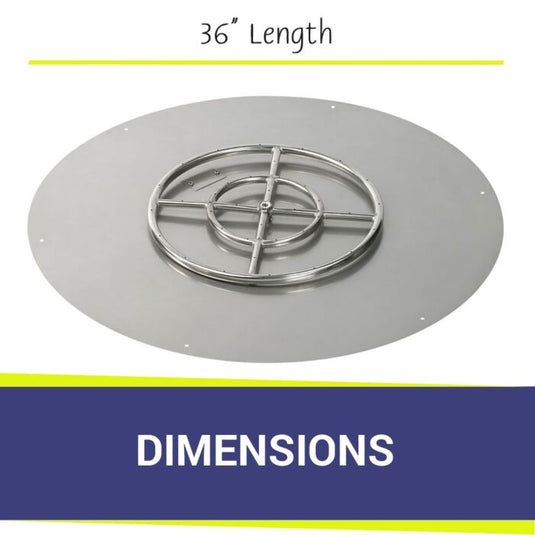

• Pan Dimensions: 36" Round
• Burner Size: 18" Ring Burner
• Burner Material: 304 Stainless Steel
• Fire Glass Capacity: Not Included
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet / Outlet Size: 1/2" FPT
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Ring Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 36" Round Stainless Steel Flat Burner Pan
  • 18" Stainless Steel Ring Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
