American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30 Ring) - Natural Gas Bundle

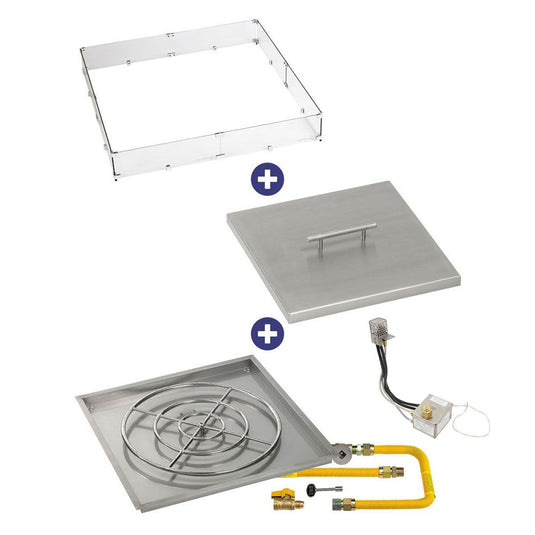

American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Natural Gas Bundle is a premium outdoor fire pit burner system designed for large custom natural gas fire features. This complete bundle includes a 36-inch 304 stainless steel drop-in pan, 30-inch high-capacity ring burner, AWEIS electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The 30-inch stainless steel ring burner delivers up to 443,000 BTU/hour and requires a 3/4-inch gas line for maximum performance. The drop-in pan creates a false bottom to reduce fire glass usage while maintaining a full, elegant flame appearance.

Designed for luxury patios and large outdoor fire pits, this American Fire Products bundle provides durable construction, reliable electronic ignition, and professional-grade flame performance.

Features

• Complete high-capacity natural gas fire pit bundle includes square drop-in pan, 30-inch ring burner, AWEIS electronic ignition system, flame guard, and stainless steel burner cover
• Constructed from premium 304 stainless steel for maximum durability, corrosion resistance, and high-temperature performance
• 36-inch square drop-in pan designed for large custom outdoor fire pit installations
• Raised flange design allows secure installation and easy removal when needed
• Creates a false bottom design to reduce fire glass requirements while maintaining a full flame appearance
• Includes 30-inch high-capacity stainless steel ring burner for powerful flame coverage
• Crossbar burner design improves flame distribution and flame consistency
• Drilled burner holes help prevent unwanted whistling noises during operation
• Requires a 3/4-inch gas line for maximum burner performance
• Produces up to 443,000 BTU/hour maximum heat output
• Features High-Capacity AWEIS electronic ignition system for reliable push-button operation
• Hot surface ignition (glow plug) system provides dependable flame activation
• Built-in thermopile flame sensor provides automatic safety monitoring
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Supports up to 140 lbs of fire glass (not included)
• Tempered glass flame guard improves safety, protects flame from wind, and enhances flame reflection
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented natural gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L × 36" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 30"
• Gas Type: Natural Gas
• Gas Line Requirement: 3/4" Gas Line Required
• Gas Inlet: 3/4" Bottom Gas Inlet
• Fire Glass Capacity: 140 lbs (not included)
• Burner Heat Rating: 443,000 BTU/hour maximum
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Product Weight: 52 lbs
• Installation: Certified NFI Professional Recommended
• High-Capacity AWEIS Ignition System Specifications
  • Ignition System: High-Capacity AWEIS Electronic Ignition System
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile
  • Ignition Source: Intermittent Pilot
  • Maximum AWEIS Output: 780K BTU/hr
  • Operating Voltage: 24V AC
  • Gas Connection Size: 3/4" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-1/2" × 4-1/2" × 5"
  • Includes:
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines

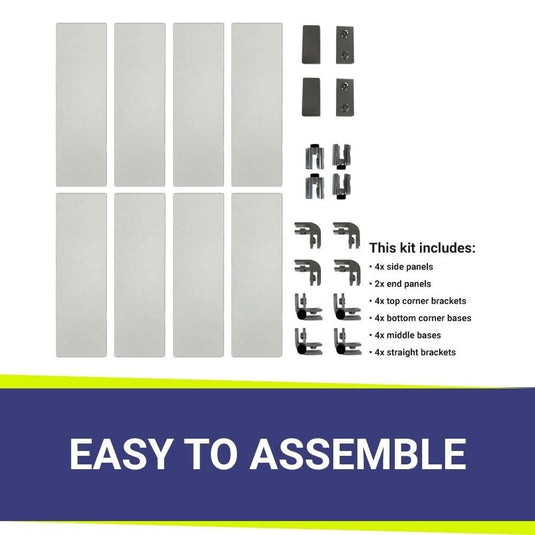

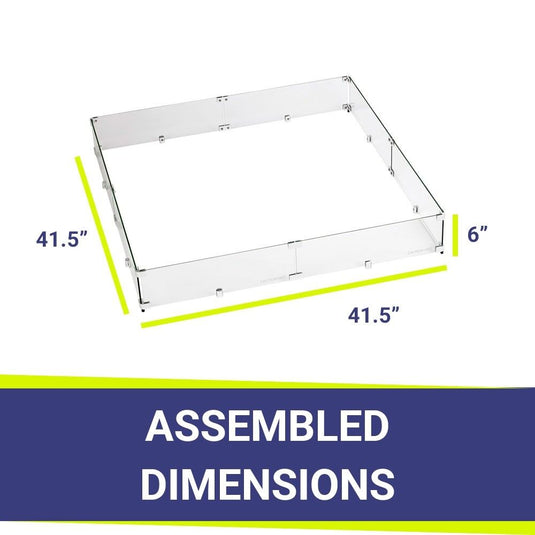

• Flame Guard Specifications
  • Material: Clear Tempered Glass Panels
  • Brackets: Polished Aluminum Fire-Resistant Brackets
  • Assembled Size: 41.5" × 41.5" × 6"
  • Features: Wind protection, flame stability, and enhanced flame reflection

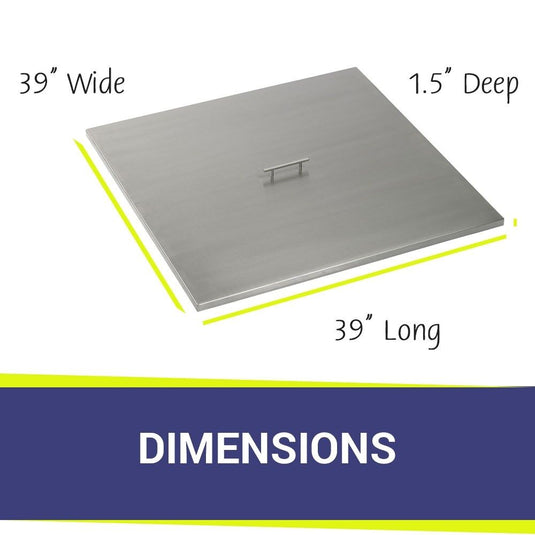

• Burner Cover Specifications
  • Material: High-quality 304 Stainless Steel
  • Finish: Smooth Brushed Finish
  • Handle: Heavy-Duty Solid Chrome Handle
  • Actual Size: 39" × 39" × 1.5"
  • Purpose: Protects burner pan and ignition components when not in use
• Bundle Includes
  • (1) 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Natural Gas
  • (1) Square Tempered Glass Flame Guard (41.5" × 41.5" × 6")
  • (1) Square Stainless Steel Burner Cover (39" × 39" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
