American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Whole House Propane

Create a powerful and visually striking outdoor fire feature with the American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Whole House Propane. Designed for high-performance residential and commercial fire installations, this complete system combines a heavy-duty stainless steel drop-in pan, oversized 30-inch ring burner, and advanced high-capacity AWEIS ignition system for reliable ignition and consistent flame output.

Constructed from premium 304 stainless steel, this square drop-in pan is built to withstand extreme outdoor conditions while resisting rust and corrosion. The integrated flange allows for easy drop-in installation, while the false-bottom design reduces the amount of fire glass required, improving efficiency and lowering installation costs.

The included 30-inch stainless steel ring burner is engineered for high-output flame performance with a cross-bar design that ensures even flame distribution. Drilled burner ports help eliminate whistling and provide smooth gas flow. Paired with the High-Capacity AWEIS (All Weather Electronic Ignition System), this unit delivers automatic hot surface ignition, thermopile flame sensing, and enhanced gas handling for larger fire features requiring increased output.

Features

• Complete 36" square fire pit system with high-capacity AWEIS ignition
• Designed for high-output whole house propane outdoor fire features
• Includes heavy-duty 30" stainless steel ring burner
• Cross-bar burner design ensures even and balanced flame distribution
• Extremely powerful 443,000 BTU maximum heat output
• High-capacity AWEIS system rated up to 512,000 BTU/hr
• Premium 304 stainless steel construction for durability and corrosion resistance
• Drop-in pan design with integrated flange for easy installation and maintenance
• False-bottom design reduces fire glass requirements and overall cost
• Drilled burner ports eliminate whistling and noise during operation
• Built-in weep holes help prevent water accumulation inside the pan
• Includes 3/4" gas inlet for high-volume propane flow
• Advanced hot surface ignition with thermopile flame sensing safety

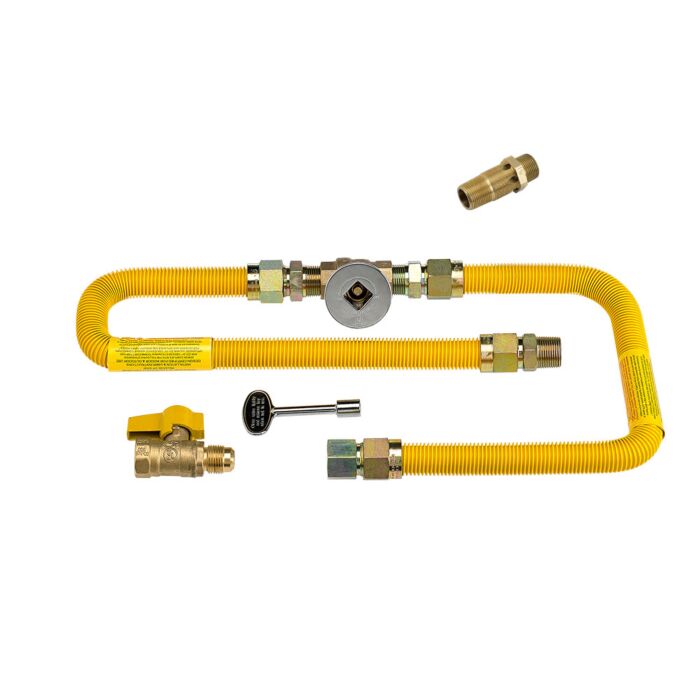

• Includes 24V transformer, safety shut-off valve, key valve, dual gas lines, and propane air mixer
• Ideal for large residential and commercial fire pit installations

Product Specifications

• Product Weight: 52 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Shape: Square

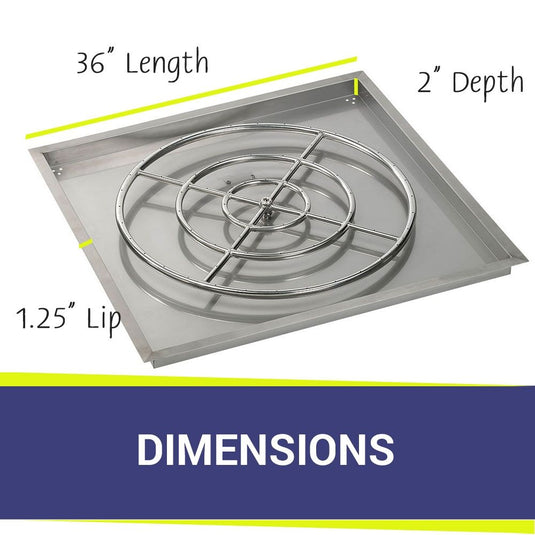

• Pan Dimensions: 36" L x 36" W x 2" D
• Flange: 1 1/4"
• Fuel Type: Whole House Propane
• Fire Glass Capacity: 135 lbs (Fire Glass Not Included)
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 30"
• Burner Heat Rating: 443,000 BTU/hour maximum
• Ring Burner Features: Drilled Burner Ports to Prevent Whistling
• Gas Inlet: 3/4" Bottom Gas Inlet
• Gas Line Requirement: 3/4" Gas Line Required
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 512,000 BTU/hr
• Inlet / Outlet Size: 3/4" FPT
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 1/2" x 4 1/2" x 5" (Tall)
• Special Features: High-Capacity Ignition System, Drilled Burner Ports, Integrated Weep Holes
• Application: Outdoor vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

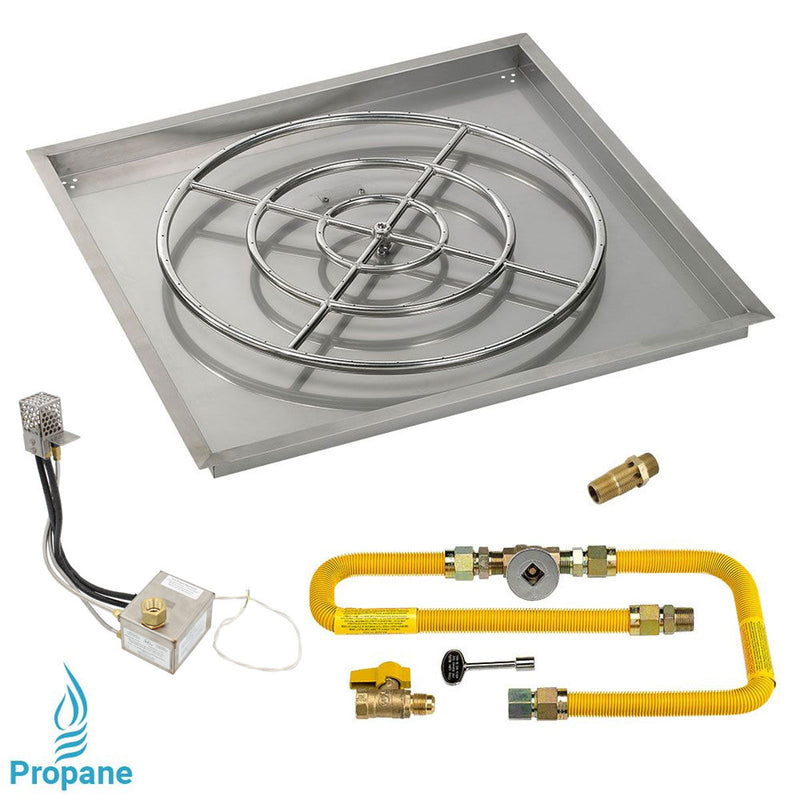

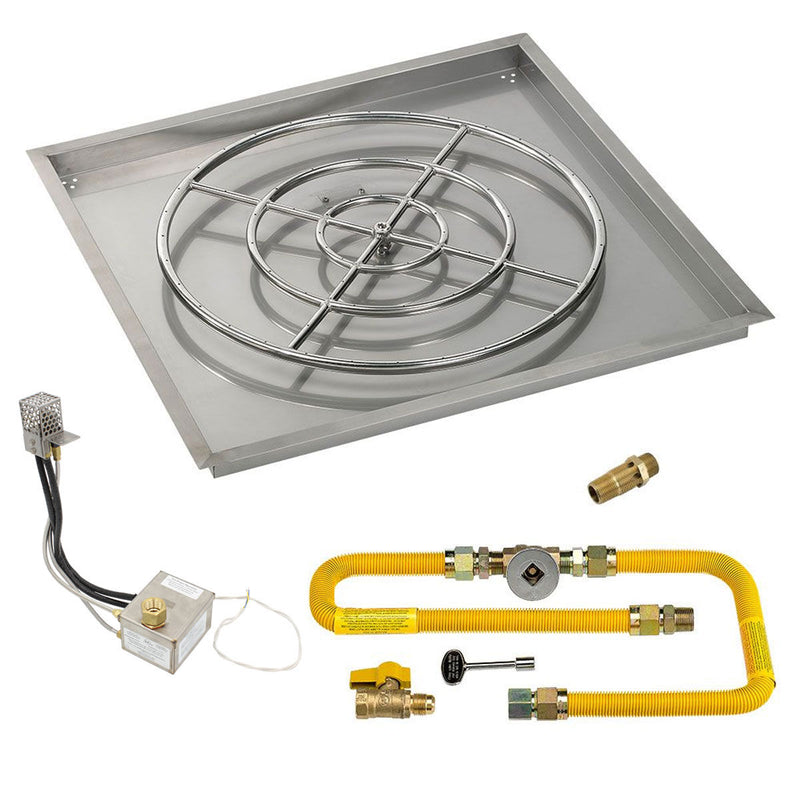

• Included Components
  • 36" Square Stainless Steel Drop-In Pan
  • 30" Stainless Steel Ring Burner

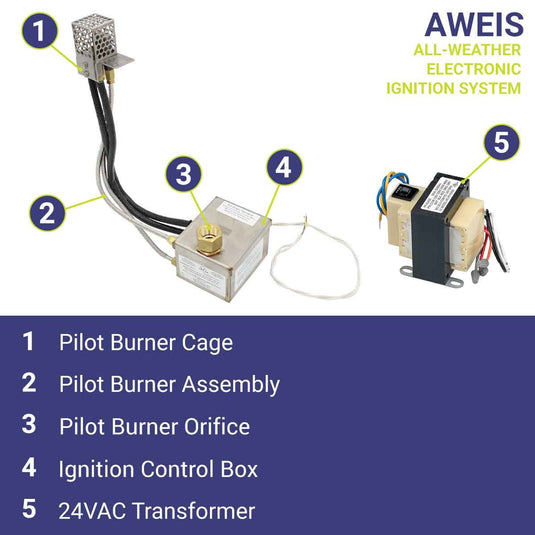

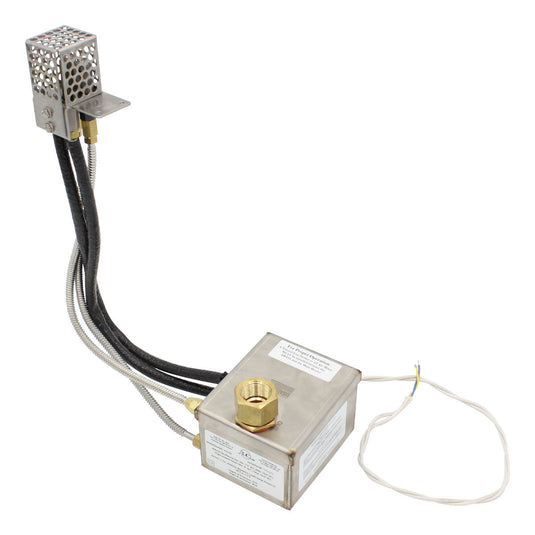

  • High-Capacity AWEIS Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
