American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30 Ring) - Whole House Propane Bundle

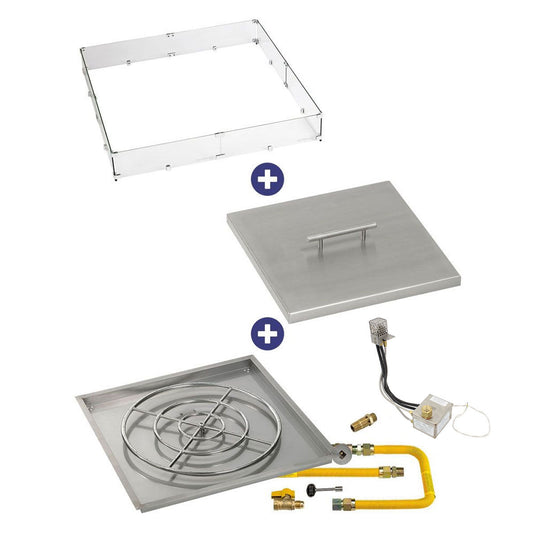

American Fire Products 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Whole House Propane Bundle is a professional-grade outdoor fire pit burner system designed for large custom propane fire features. This complete bundle includes a 36-inch 304 stainless steel drop-in pan, 30-inch high-capacity ring burner, AWEIS electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The 30-inch stainless steel ring burner produces up to 443,000 BTU/hour and requires a 3/4-inch gas connection for powerful flame performance. The high-capacity AWEIS system provides reliable electronic ignition, automatic flame sensing, and enhanced safety for large outdoor fire installations.

Ideal for luxury patios and oversized fire pits, this American Fire Products bundle delivers durable construction, easy operation, and professional-level propane fire performance.

Features

• Complete high-capacity propane fire pit bundle includes drop-in pan, 30-inch ring burner, AWEIS electronic ignition system, flame guard, and stainless steel burner cover
• Built from 100% handcrafted 304 stainless steel for superior durability and heat resistance
• 36-inch square drop-in pan designed for large custom outdoor fire pit applications
• Drop-in design with raised flange allows secure installation and easy removal
• Creates a false bottom to reduce fire glass usage while maintaining a full flame appearance
• Includes 30-inch high-capacity stainless steel ring burner for powerful flame coverage
• Crossbar burner design improves flame distribution and consistency
• Drilled burner ports reduce whistling noises during operation
• Requires a 3/4-inch gas line for proper burner performance
• Provides up to 443,000 BTU/hour maximum heat output
• Features High-Capacity AWEIS electronic ignition system for reliable flame ignition
• Hot surface ignition (glow plug) technology provides dependable operation
• Thermopile flame sensing system improves safety and flame monitoring
• Includes 24V transformer, safety shut-off valve, key valve, gas flex lines, and propane air mixer
• Supports up to 140 lbs of fire glass (not included)
• Tempered glass flame guard helps protect flames from wind and improves flame visibility
• 304 stainless steel burner cover protects the fire pit burner system when not in use
• Built-in weep holes help prevent water accumulation inside the pan
• Designed for outdoor vented whole house propane fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L × 36" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 30"
• Fuel Type: Whole House Propane
• Gas Inlet: 3/4" Bottom Gas Inlet
• Gas Line Requirement: 3/4" Gas Line Required
• Fire Glass Capacity: 140 lbs (not included)
• Burner Heat Rating: 443,000 BTU/hour maximum
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented whole house propane fire features only
• Product Weight: 52 lbs
• Installation: Certified NFI Professional Recommended
• High-Capacity AWEIS Ignition System Specifications
  • Ignition System: High-Capacity AWEIS Electronic Ignition System
  • Fuel Compatibility: Whole House Propane
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Flame Sensor: Thermopile
  • Ignition Source: Pilot
  • Maximum AWEIS Output: 780K BTU/hr
  • Operating Voltage: 24V AC
  • Gas Connection Size: 3/4" FPT
  • Maximum Gas Pressure: 2.0 PSI
  • Valve Enclosure Dimensions: 4-1/2" × 4-1/2" × 5"
  • Includes:
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
  • Propane Air Mixer
• Flame Guard Specifications
  • Material: Clear Tempered Glass Panels
  • Brackets: Polished Aluminum Fire-Resistant Brackets
  • Assembled Size: 41.5" × 41.5" × 6"
  • Features: Wind protection, flame stability, and enhanced flame reflection
• Burner Cover Specifications
  • Material: High-Quality 304 Stainless Steel
  • Finish: Smooth Brushed Finish
  • Handle: Heavy-Duty Solid Chrome Handle
  • Actual Size: 39" × 39" × 1.5"
  • Purpose: Protects burner pan and ignition components when not in use
• Bundle Includes
  • (1) 36" Square Drop-In Pan with High-Capacity AWEIS System (30" Ring) - Whole House Propane
  • (1) Square Tempered Glass Flame Guard (41.5" × 41.5" × 6")
  • (1) Square Stainless Steel Burner Cover (39" × 39" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
