American Fire Products 36" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane Bundle

American Fire Products 36" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane Bundle is a complete propane outdoor fire pit burner system designed for custom square fire features. This bundle includes a 304 stainless steel square drop-in pan, 18-inch stainless steel ring burner, push-button spark ignition system with propane accessories, tempered glass flame guard, and stainless steel burner cover.

The drop-in pan design creates a false bottom to reduce fire glass usage while maintaining a full and elegant flame appearance. The 18-inch stainless steel ring burner provides consistent flame distribution with drilled burner ports for improved performance and reduced operating noise.

Designed for outdoor patios, custom fire pits, and entertainment areas, this American Fire Products propane bundle delivers durable construction, convenient ignition, and professional-quality fire performance.

Features

• Complete propane fire pit bundle includes square burner pan, 18-inch ring burner, spark ignition system, flame guard, and stainless steel cover
• Constructed from premium 304 stainless steel for excellent durability, corrosion resistance, and heat protection
• 36-inch square drop-in pan designed for custom outdoor propane fire pit installations
• Raised flange design allows secure placement and easy installation
• Creates a false bottom to reduce fire glass requirements while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for consistent flame distribution
• Crossbar burner design improves flame performance and stability
• Drilled burner holes help reduce whistling during operation
• Push-button spark ignition system provides quick and reliable flame startup
• Includes propane air mixer, regulator, gas hose, chrome key valve, and key
• Supports up to 135 lbs of fire glass (not included)
• Tempered glass flame guard provides additional wind protection and improves flame visibility
• 304 stainless steel burner cover protects the burner pan when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented propane gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L × 36" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 135 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Propane Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented propane fire features only
• Product Weight: 38 lbs
• Installation: Certified NFI professional recommended
• Spark Ignition System Specifications
  • Ignition Type: Push-button spark ignition
  • Power Source: Battery-powered ignitor
  • Fuel System: Propane air mixer system
  • Includes: Gas hose, regulator, chrome key valve, and key
  • Additional Components: Portable propane tank regulator
  • Optional Accessory: Push-button ignitor mounting plate
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 41.5" × 41.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 39" × 39" × 1.5"

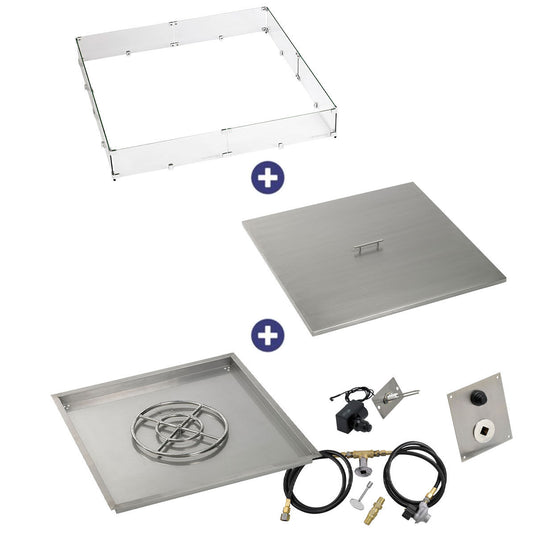

• Bundle Includes
  • (1) 36" Square Drop-In Pan with Spark Ignition Kit (18" Fire Pit Ring) - Propane
  • (1) Square Tempered Glass Flame Guard (41.5" × 41.5" × 6")
  • (1) Square Stainless Steel Burner Cover (39" × 39" × 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
