American Fire Products 36" Square Stainless Steel Drop-In Pan with AWEIS System (18 Ring) - Natural Gas Bundle

American Fire Products 36" Square Stainless Steel Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Natural Gas Bundle is a premium electronic ignition fire pit burner system designed for large custom outdoor natural gas fire features. This complete bundle includes a handcrafted 304 stainless steel square drop-in pan, 18-inch stainless steel ring burner, advanced AWEIS electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The large 36-inch square drop-in pan creates a false bottom to reduce fire glass usage while maintaining a full and elegant flame appearance. The 18-inch ring burner features drilled burner ports and a crossbar design to provide consistent flame distribution and reliable performance.

Equipped with the AWEIS (All Weather Electronic Ignition System), this bundle offers convenient switch-controlled ignition, automatic flame sensing, and enhanced safety for residential and commercial outdoor fire installations. Designed for spacious patios, backyard entertainment areas, and custom fire pit projects, this American Fire Products system delivers professional-quality performance and long-lasting durability.

Features

• Complete natural gas fire pit bundle includes square drop-in pan, 18-inch ring burner, AWEIS electronic ignition system, tempered glass flame guard, and stainless steel burner cover
• Constructed from premium handcrafted 304 stainless steel for superior durability and heat resistance
• 36-inch square drop-in pan designed for large custom outdoor fire pit installations
• Raised flange design allows secure placement and easy installation
• Creates a false bottom design to reduce fire glass requirements while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for consistent flame performance
• Crossbar burner design improves flame distribution across the fire feature
• Drilled burner holes help reduce whistling noise during operation
• Supports up to 140 lbs of fire glass (not included)
• Equipped with AWEIS All Weather Electronic Ignition System for convenient electronic operation
• Features hot surface ignition (glow plug) with automatic flame sensing for improved safety
• Includes thermopile flame sensing technology and intermittent pilot ignition
• Includes 24V transformer, safety shut-off valve, key valve, and two gas flex lines
• Tempered glass flame guard provides wind protection and enhances flame visibility
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented natural gas fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L × 36" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 140 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Natural Gas
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Product Weight: 46 lbs
• Installation: Certified NFI Professional Recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS (All Weather Electronic Ignition System)
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • Flame / Heat Sense: Thermopile
  • Maximum AWEIS Output: 290,000 BTU/hr
  • Operating Voltage: 24V AC
  • Inlet / Outlet Size: 1/2" FPT
  • Maximum Gas Pressure Limit: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V Transformer, Safety Shut-Off Valve, Key Valve, Two Gas Flex Lines
  • Warranty: Pan & Burner - 5 Year Limited Warranty; AWEIS Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear Tempered Glass Panels
  • Brackets: Polished Aluminum Fire-Resistant Brackets
  • Assembled Size: 41.5" × 41.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 Stainless Steel
  • Finish: Smooth Brushed Finish
  • Handle: Heavy-Duty Solid Chrome Handle
  • Actual Size: 39" × 39" × 1.5"

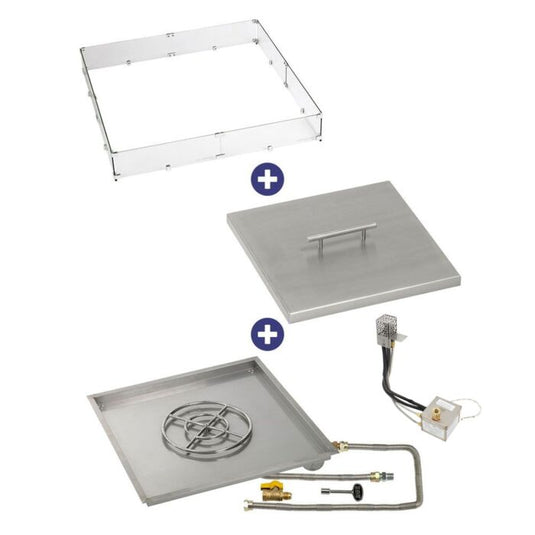

• Bundle Includes
  • (1) 36" Square Stainless Steel Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Natural Gas
  • (1) Square Tempered Glass Flame Guard (41.5" × 41.5" × 6")
  • (1) Square Stainless Steel Burner Cover (39" × 39" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
