American Fire Products 36" Square Stainless Steel Drop-In Pan with AWEIS System (18 Ring) - Whole House Propane Bundle

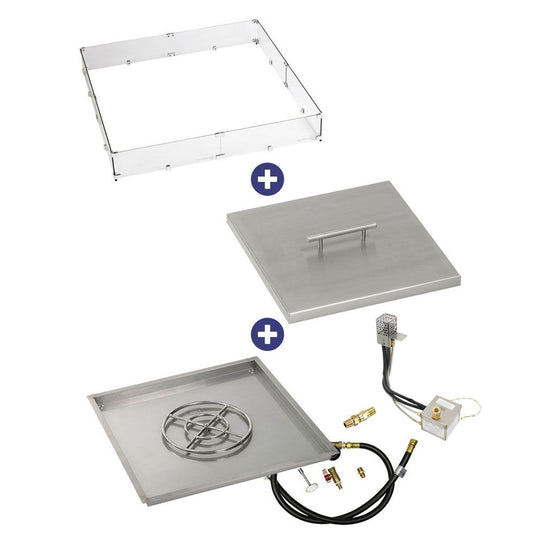

American Fire Products 36" Square Stainless Steel Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Whole House Propane Bundle is a premium electronic ignition fire pit burner system designed for large custom outdoor propane fire features. This complete bundle includes a handcrafted 304 stainless steel square drop-in pan, 18-inch stainless steel ring burner, advanced AWEIS electronic ignition system, tempered glass flame guard, and stainless steel burner cover.

The large 36-inch square drop-in pan creates a false bottom that minimizes fire glass usage while maintaining a full and elegant flame appearance. The 18-inch stainless steel ring burner features drilled burner ports and a crossbar design for even flame distribution, quiet operation, and dependable performance.

Powered by the AWEIS (All Weather Electronic Ignition System), this bundle delivers convenient switch-operated ignition, automatic flame sensing, and enhanced safety for whole house propane fire features. Ideal for custom patios, outdoor kitchens, and backyard entertainment spaces, this American Fire Products system combines professional-grade durability with reliable electronic ignition performance.

Features

• Complete whole house propane fire pit bundle includes square drop-in pan, 18-inch ring burner, AWEIS electronic ignition system, flame guard, and stainless steel burner cover
• Constructed from premium handcrafted 304 stainless steel for superior corrosion resistance and long-lasting durability
• 36-inch square drop-in pan designed for large custom outdoor fire pit installations
• Raised flange design provides secure placement and simple installation
• Creates a false bottom to reduce fire glass requirements while maintaining a full flame appearance
• Includes 18-inch stainless steel ring burner for consistent flame performance
• Crossbar burner design promotes even flame distribution
• Drilled burner ports minimize burner whistling during operation
• Supports up to 140 lbs of fire glass (not included)
• Equipped with AWEIS All Weather Electronic Ignition System for dependable electronic ignition
• Features hot surface ignition (glow plug) with automatic flame sensing for added safety
• Includes thermopile flame monitoring and intermittent pilot ignition
• Includes 24V transformer, safety shut-off valve, key valve, and two gas flex lines
• Includes propane air mixer for proper whole house propane operation
• Tempered glass flame guard improves wind resistance while enhancing flame visibility
• 304 stainless steel burner cover protects the burner system when not in use
• Built-in weep holes help prevent water accumulation inside the burner pan
• Designed for outdoor vented whole house propane fire features only
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: 100% Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L × 36" W × 2" D
• Flange Size: 1-1/4"
• Burner Type: Stainless Steel Ring Burner
• Burner Size: 18"
• Fire Glass Capacity: 140 lbs (not included)
• Burner Heat Rating: 147,000 BTU/hour maximum
• Fuel Type: Whole House Propane
• Gas Inlet: 1/2" Bottom Gas Inlet
• Burner Features: Drilled burner holes to reduce whistling
• Application: Outdoor vented whole house propane fire features only
• Product Weight: 46 lbs
• Installation: Certified NFI Professional Recommended
• AWEIS Electronic Ignition System Specifications
  • Ignition System: AWEIS (All Weather Electronic Ignition System)
  • Ignition Type: Hot Surface Ignition (Glow Plug)
  • Ignition Sequence: Intermittent Pilot
  • Ignition Source: Pilot
  • Flame / Heat Sense: Thermopile
  • Maximum AWEIS Output: 290,000 BTU/hr
  • Operating Voltage: 24V AC
  • Inlet / Outlet Size: 1/2" FPT
  • Maximum Gas Pressure Limit: 2.0 PSI
  • Valve Enclosure Dimensions: 4-3/8" × 4-3/8" × 4-3/8"
  • Includes: 24V Transformer, Safety Shut-Off Valve, Key Valve, Two Gas Flex Lines
  • Additional Component: Propane Air Mixer
  • Warranty: Pan & Burner - 5 Year Limited Warranty; AWEIS Kit - 1 Year Limited Warranty
• Flame Guard Specifications
  • Material: Clear Tempered Glass Panels
  • Brackets: Polished Aluminum Fire-Resistant Brackets
  • Assembled Size: 41.5" × 41.5" × 6"
• Burner Cover Specifications
  • Material: High-quality 304 Stainless Steel
  • Finish: Smooth Brushed Finish
  • Handle: Heavy-Duty Solid Chrome Handle
  • Actual Size: 39" × 39" × 1.5"
• Bundle Includes
  • (1) 36" Square Stainless Steel Drop-In Pan with AWEIS System (18" Fire Pit Ring) - Whole House Propane
  • (1) Square Tempered Glass Flame Guard (41.5" × 41.5" × 6")
  • (1) Square Stainless Steel Burner Cover (39" × 39" × 1.5")

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
