American Fire Products 36" Stainless Steel Square Drop In Pan With 18" Fire Ring

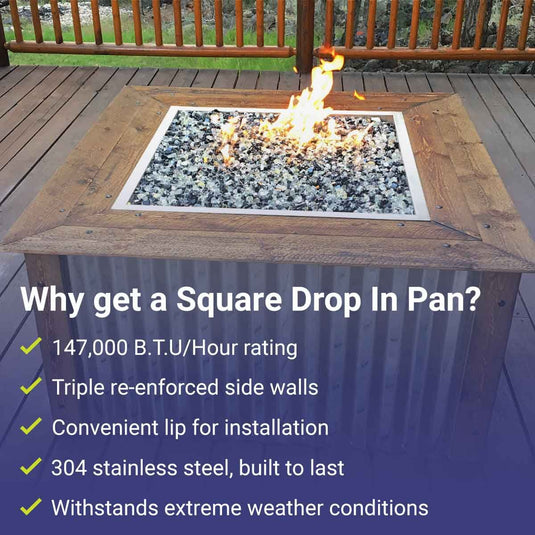

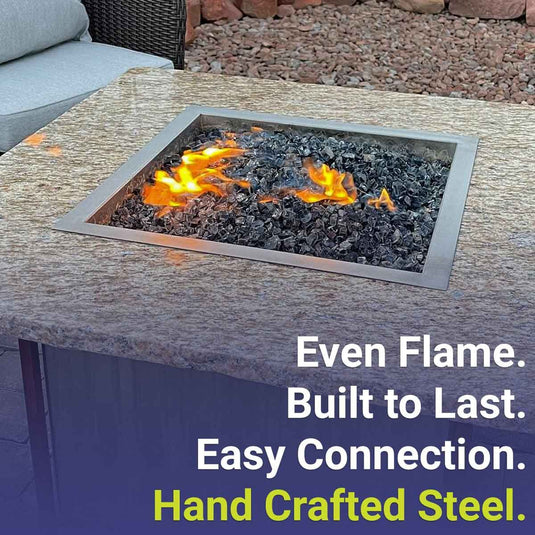

American Fire Products 36" Stainless Steel Square Drop-In Pan with 18" Fire Ring is designed to simplify the installation of custom square fire pits while reducing the amount of fire glass required. Featuring a 36-inch square drop-in pan with an included 18-inch stainless steel fire ring, this system creates a false bottom that minimizes fire glass usage while delivering a beautiful and evenly distributed flame display.

Handcrafted from high-quality 304 stainless steel, this square drop-in fire pit pan is built to withstand extreme heat and harsh outdoor weather conditions without rusting or corroding. The included 18-inch double concentric ring burner is also made from 304 stainless steel and is designed to create a realistic flame pattern with excellent heat distribution. The burner features drilled burner holes instead of punched holes to help prevent loud whistling noises.

Built-in weep holes help prevent water accumulation inside the pan, while the integrated 1/2-inch bottom gas inlet allows for easy connection to natural gas or propane supplies. Designed for outdoor vented fire features only, this fire pit pan and burner combination delivers up to 147,000 BTU/hour maximum heat output. For propane applications, a propane adapter is required.

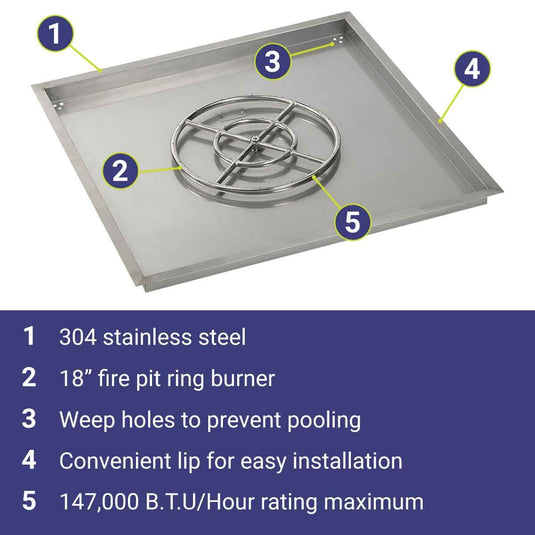

Features

• Premium 36" square stainless steel drop-in fire pit pan
• Includes an 18" stainless steel double concentric fire ring burner
• Handcrafted from 304 stainless steel for long-lasting durability
• Creates a false bottom to reduce the amount of fire glass required
• Convenient drop-in design for easy installation
• Features a 1-1/4" flange for secure placement
• Drilled burner holes help prevent loud whistling

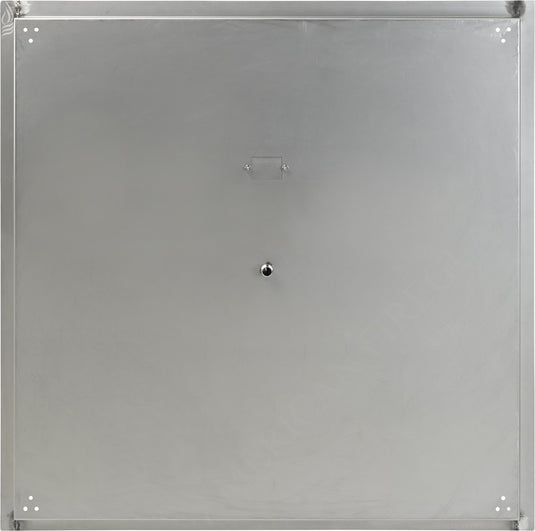

• Built-in 1/2" bottom gas inlet for easy gas connection
• Built-in weep holes help prevent water pooling
• Provides up to 147,000 BTU/hour maximum heat output
• Designed for outdoor vented natural gas or propane fire features
• Propane installations require a propane adapter
• Withstands extreme temperatures and harsh weather conditions
• Ideal for custom square fire pits and outdoor fire features

Product Specifications

• Brand: American Fire Products

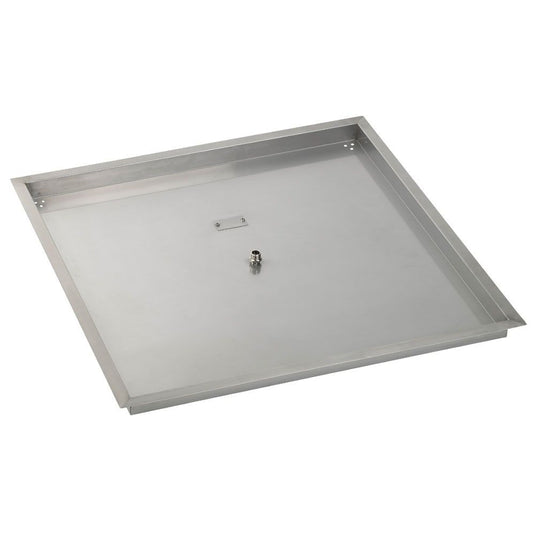

• Product Type: Square Drop-In Fire Pit Pan

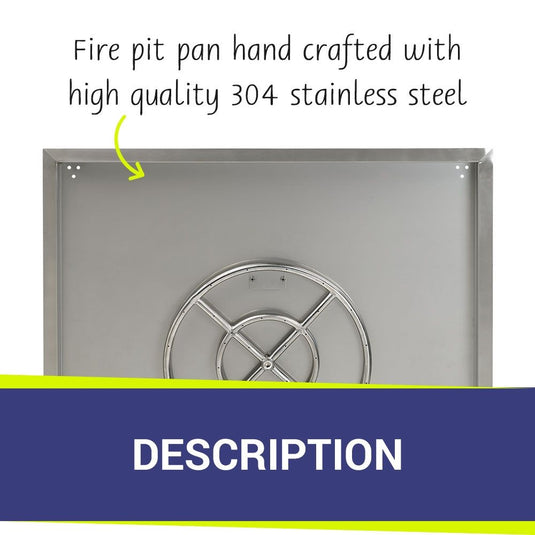

• Material: Handcrafted high-quality 304 stainless steel

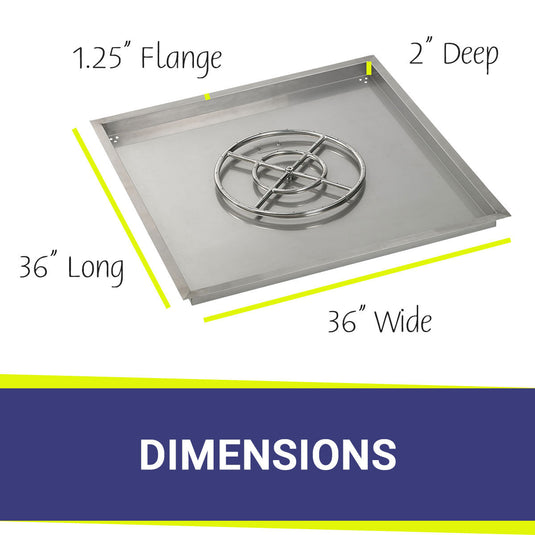

• Dimensions: 36" L × 36" W × 2" D × 1.25" Flange
• Weight: 28 lbs
• Description: Stainless steel fire pit pan

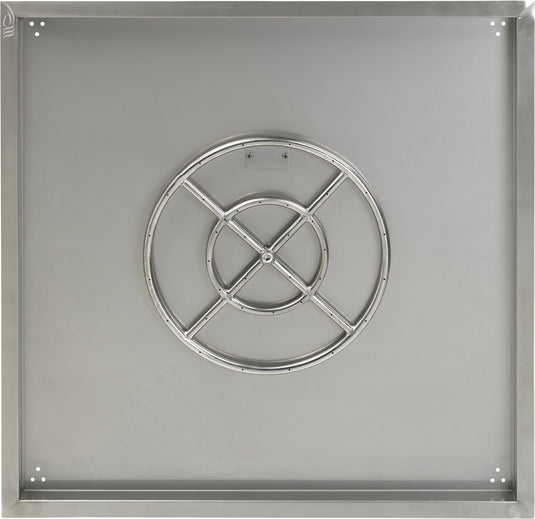

• Included Burner: 18" Fire Ring Burner
• Burner Material: 304 Stainless Steel
• Burner Design: Double Concentric Ring
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Rating: 147,000 BTU/Hour Maximum
• Fuel Type: Natural Gas or Propane
• Use In: Outdoor vented natural or propane gas burning fire features only
• Burner Holes: Drilled holes (not punched) to reduce whistling
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane adapter required for liquid propane conversion
• Kit Includes
  • 36" Stainless Steel Square Drop-In Fire Pit Pan
  • 18" Stainless Steel Fire Ring Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
