American Fire Products 36" x 12" Rectangular Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas Bundle is a complete outdoor fire feature solution designed to provide a reliable flame display, easy operation, and durable performance for custom fire pit installations. This bundle includes a high-quality stainless steel rectangular drop-in burner pan, push-button spark ignition system, tempered glass flame guard, and stainless steel burner cover.

The 36" x 12" rectangular drop-in fire pit pan features a built-in burner design that creates an even flame pattern while the drop-in construction helps reduce fire glass requirements by creating a false bottom inside the fire pit. The stainless steel pan is designed for long-lasting performance and resistance against high temperatures and outdoor conditions.

Equipped with a battery-powered push-button spark ignitor and complete natural gas connection accessories, this bundle provides convenient ignition and dependable operation for outdoor fire features. The included flame guard enhances safety and flame appearance, while the stainless steel cover protects the burner pan when not in use.

Designed for custom outdoor fire pits, patios, and entertainment areas, this complete natural gas bundle offers a professional-grade solution for creating a modern built-in fire feature.

Features

• Complete natural gas fire pit bundle includes drop-in pan, spark ignition system, flame guard, and burner cover
• High-quality stainless steel construction provides durability and resistance to heat and outdoor elements
• Built-in burner design delivers an attractive and consistent flame pattern
• Drop-in installation design allows easy integration into custom fire pit applications
• Creates a false bottom inside the fire pit to reduce fire glass requirements while maintaining a full appearance
• Push-button spark ignitor provides quick and convenient flame ignition
• Battery-powered ignition system for easy operation
• Includes natural gas connection accessories with gas hoses and chrome key valve
• Drilled burner holes help prevent whistling and improve flame performance
• Tempered glass flame guard adds a safety barrier and enhances flame reflection
• Stainless steel burner cover protects the fire pit pan when not in use
• Supports up to 50 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features
• Suitable for custom fire pits, patios, and outdoor living spaces
• Professional installation is recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted high-quality stainless steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L x 12" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Fire Glass Capacity: 50 lbs (not included)

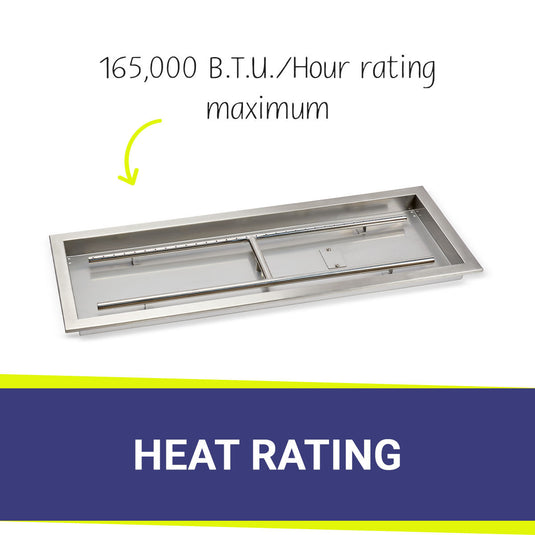

• Burner Heat Rating: 165,000 BTU/hour maximum
• Burner Design: Drilled burner holes to prevent whistling
• Application: Outdoor vented natural gas fire features only
• Ignition Type: Push-button spark ignition
• Ignition Source: Battery-powered spark ignitor
• Included Accessories: Gas hoses, chrome key valve with key
• Installation: Professional installation recommended
• Product Weight: 19 lbs
• Prop 65 Warning: This product may contain compounds known to the State of California to cause cancer, birth defects, or other reproductive harm
• Spark Ignition System Includes
  • Push-button spark ignitor
  • Battery-powered ignition control
  • Chrome key valve with key
  • Two gas connection hoses (5' and 5')
  • Optional push-button ignitor mounting plate available
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 41.5" x 17.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty handle
  • Actual Size: 39" x 15" x 1.5"

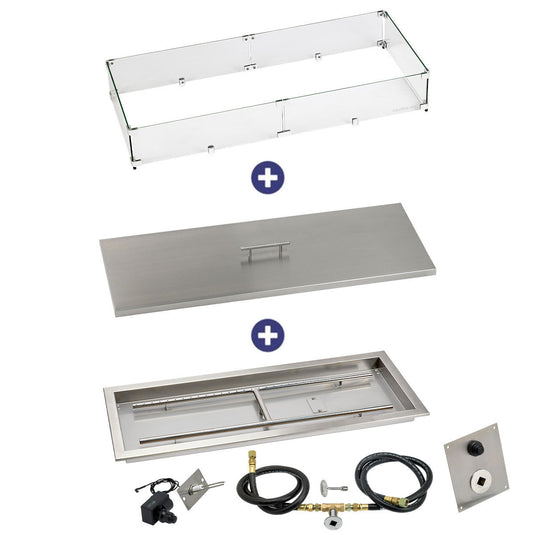

• Bundle Includes
  • (1) 36" x 12" Rectangular Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas
  • (1) Rectangular Flame Guard (41.5" x 17.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (39" x 15" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
