American Fire Products 36" x 12" Rectangular Drop-In Pan with Spark Ignition Kit - Propane Bundle

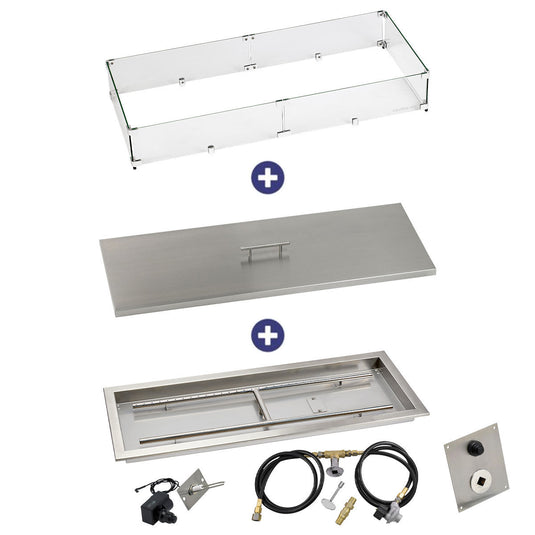

American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Fire Pit Pan with Spark Ignition Kit - Propane Bundle is a complete outdoor fire feature solution designed to provide reliable performance, convenient ignition, and a stylish flame display for custom propane fire pit installations. This bundle includes a durable stainless steel rectangular drop-in burner pan, push-button spark ignition system, propane connection accessories, tempered glass flame guard, and stainless steel burner cover.

The 36" x 12" rectangular drop-in fire pit pan features a built-in H-burner that creates an even flame pattern while the drop-in design creates a false bottom to reduce fire glass usage and maintain a full, elegant appearance. The handcrafted stainless steel construction provides excellent durability and resistance to high temperatures and outdoor conditions.

Equipped with a battery-powered push-button spark ignitor, propane air mixer, regulator, and key valve, this bundle provides easy ignition and dependable operation for outdoor propane fire features. The included flame guard enhances safety and flame reflection, while the stainless steel cover protects the burner pan when not in use.

Designed for custom outdoor fire pits, patios, and entertainment areas, this complete propane bundle delivers a professional and modern fire feature solution.

Features

• Complete propane fire pit bundle includes drop-in pan, spark ignition system, flame guard, and stainless steel burner cover
• High-quality stainless steel construction provides durability and resistance to heat and outdoor conditions
• Built-in H-burner design delivers an even and attractive flame pattern
• Drop-in installation design allows easy integration into custom fire pit applications
• Creates a false bottom design to reduce fire glass requirements while maintaining a full appearance
• Push-button spark ignitor provides quick and convenient flame ignition
• Battery-powered ignition system for easy operation
• Includes propane connection accessories with regulator, gas hoses, key valve, and air mixer
• Propane air mixer and portable tank regulator included for proper propane operation
• Drilled burner holes help prevent whistling and improve flame performance
• Tempered glass flame guard provides additional safety and enhances flame reflection
• 304 stainless steel burner cover protects the fire pit pan when not in use
• Supports up to 50 lbs of fire glass (not included)
• Designed for outdoor vented propane gas fire features
• Ideal for custom fire pits, patios, and outdoor living spaces
• Professional installation is recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted high-quality stainless steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 36" L x 12" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Propane
• Fire Glass Capacity: 50 lbs (not included)
• Burner Heat Rating: 165,000 BTU/hour maximum
• Burner Design: Drilled burner holes to prevent whistling
• Application: Outdoor vented propane gas fire features only
• Ignition Type: Push-button spark ignition
• Ignition Source: Battery-powered spark ignitor
• Included Accessories: Gas hoses, regulator, chrome key valve with key, propane air mixer
• Installation: Professional installation recommended
• Product Weight: 19 lbs
• Prop 65 Warning: This product may contain compounds known to the State of California to cause cancer, birth defects, or other reproductive harm
• Spark Ignition System Includes
  • Push-button spark ignitor
  • Battery-powered ignition control
  • Chrome key valve with key
  • Propane air mixer
  • Portable propane tank regulator
  • Gas connection hoses (4' and 5')
  • Optional push-button ignitor mounting plate available
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 41.5" x 17.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty handle
  • Actual Size: 39" x 15" x 1.5"
• Bundle Includes
  • (1) 36" x 12" Rectangular Drop-In Fire Pit Pan with Spark Ignition Kit - Propane
  • (1) Rectangular Flame Guard (41.5" x 17.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (39" x 15" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
