American Fire Products 36" x 12" Rectangular Stainless Steel Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified - Bundle

American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System Kit, CSA Certified - Bundle is a complete outdoor fire feature solution designed to provide reliable ignition, enhanced safety, and long-lasting performance. This bundle includes a durable 304 stainless steel rectangular drop-in burner pan, CSA-certified electric ignition system, tempered glass flame guard, and stainless steel burner cover.

The 36" x 12" drop-in fire pit pan features reinforced construction with rolled edges for exceptional strength and durability. Its drop-in design creates a false bottom that reduces the amount of fire glass required while maintaining a full and elegant appearance for your custom fire pit.

Equipped with a battery-powered push-button spark ignition system, automatic flame sensing, and thermocouple gas shut-off protection, this CSA-certified bundle delivers dependable performance for both natural gas and propane fire features. The included flame guard and burner cover add safety, protection, and a clean finished appearance.

Designed for custom outdoor fire pits, patios, and entertainment areas, this complete bundle provides everything needed for a professional-quality fire feature installation.

Features

• Complete CSA-certified fire pit bundle includes burner pan, electric ignition system, flame guard, and stainless steel burner cover
• CSA-certified ignition system meets outdoor decorative gas appliance safety standards
• Constructed from premium 304 stainless steel for exceptional durability and corrosion resistance
• Heavy-duty reinforced side walls and rolled edges help prevent warping and distortion
• Drop-in fire pit pan design allows easy installation into custom fire pit enclosures
• Creates a false bottom to reduce fire glass requirements while maintaining a full appearance
• Built-in burner delivers a consistent and attractive flame pattern
• Battery-powered push-button spark ignition provides quick and reliable startup
• Automatic flame sensor and thermocouple gas shut-off enhance safety by stopping gas flow if the flame is extinguished
• Rapid-fire spark ignition sequence ensures dependable ignition performance
• Drilled burner holes help eliminate burner whistling
• Tempered glass flame guard provides additional safety while enhancing flame visibility
• 304 stainless steel burner cover protects the burner pan when not in use
• Supports up to 60 lbs of fire glass (not included)
• Compatible with natural gas and propane (convertible)
• Designed for outdoor vented fire pit applications
• Certified NFI professional installation recommended

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary

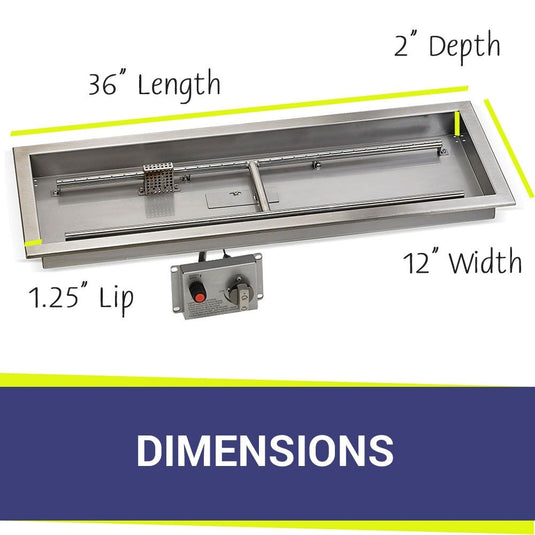

• Pan Dimensions: 36" L x 12" W
• Fire Glass Capacity: 60 lbs (not included)

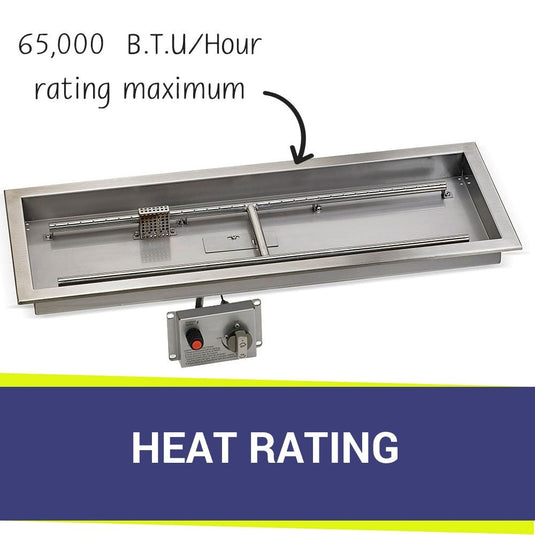

• Burner Heat Rating: 65,000 BTU/hour maximum
• Burner Design: Drilled burner holes to reduce whistling
• Fuel Type: Propane (convertible to natural gas)
• Application: Outdoor vented natural gas or propane fire features
• Installation: Certified NFI professional recommended
• Flame / Heat Sense: Thermocouple automatic gas shut-off
• Ignition Type: Push-button spark ignition
• Ignition Sequence: Rapid-fire spark ignition
• Battery Type: AA
• CSA Certification: Certified under ANSI Z21.97-2014 / CSA 2.41-2014 Outdoor Decorative Gas Appliance
• Electric Ignition System Includes
  • Battery-powered push-button spark ignitor
  • Automatic flame sensor
  • Thermocouple automatic gas shut-off
  • Rapid-fire spark ignition system
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 41.5" x 17.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 39" x 15" x 1.5"

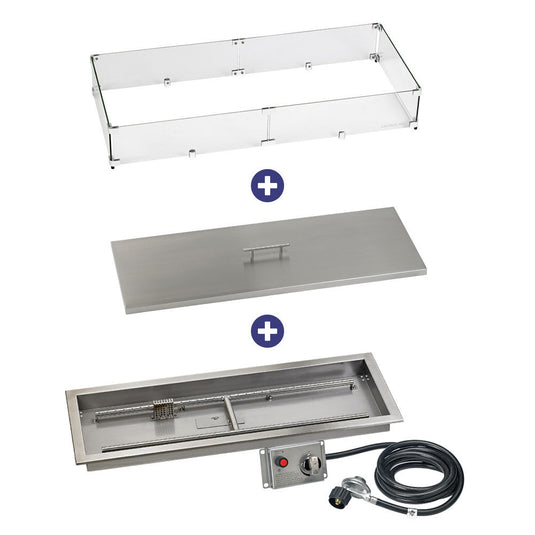

• Bundle Includes
  • (1) 36" x 12" Rectangular Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System Kit, CSA Certified
  • (1) Rectangular Flame Guard (41.5" x 17.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (39" x 15" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
