American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas

The American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas is a high-performance fire pit solution designed for reliable ignition, strong flame output, and long-lasting outdoor durability. Ideal for residential and commercial fire features, this complete system combines a premium stainless steel drop-in pan, integrated H-burner, and advanced AWEIS electronic ignition system for safe and effortless operation.

Crafted from heavy-duty 304 stainless steel, this drop-in pan is built to withstand extreme heat, weather exposure, and long-term outdoor use without corrosion. The integrated flange allows for easy drop-in installation and removal, making it perfect for custom fire pit builds. Its false-bottom design reduces fire glass usage while maintaining a full, vibrant flame appearance.

The built-in H-burner system produces a consistent, wide flame pattern, while drilled burner ports eliminate whistling for smooth, quiet operation. Paired with the AWEIS (All Weather Electronic Ignition System), this unit provides hot surface ignition, automatic flame sensing, and dependable safety controls for natural gas applications.

Features

• Complete 36" x 12" rectangular fire pit system with AWEIS electronic ignition
• Designed for natural gas outdoor vented fire features
• Built-in stainless steel H-burner for consistent flame performance
• Heavy-duty 304 stainless steel construction for durability and corrosion resistance
• Drop-in design with integrated flange for quick installation and removal
• False-bottom design reduces fire glass requirements and installation cost
• Drilled burner ports ensure quiet operation with no whistling
• Integrated weep holes prevent water buildup
• Advanced AWEIS hot surface ignition system with flame sensing safety
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Ideal for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 28 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Style: Contemporary

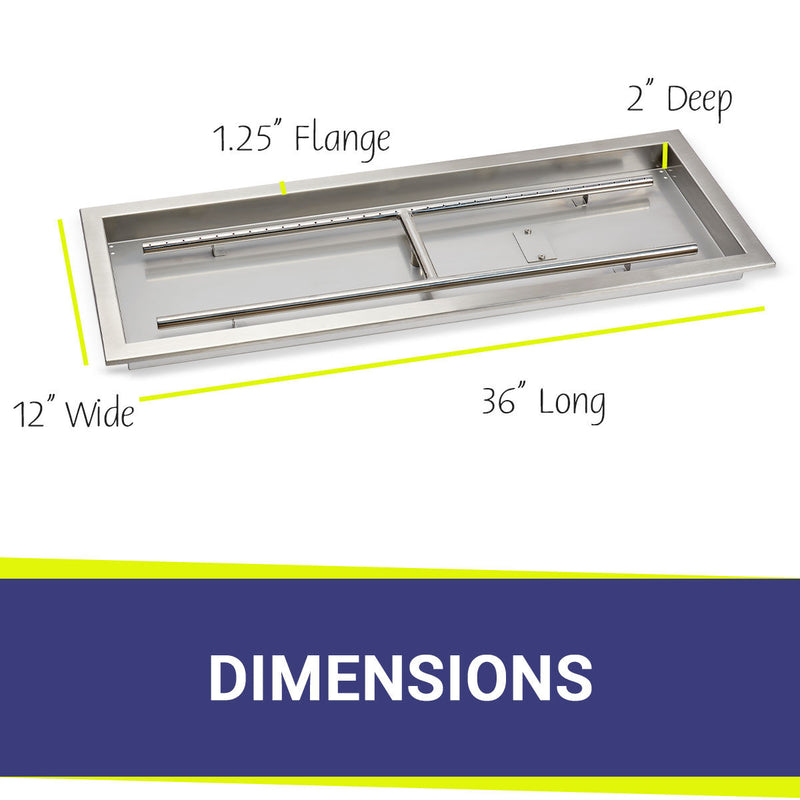

• Dimensions: 36" L x 12" W x 2" D x 1 1/4" Flange
• Fuel Type: Natural Gas
• Fire Glass Capacity: 45 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel H-Burner
• Burner Heat Rating: 165,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

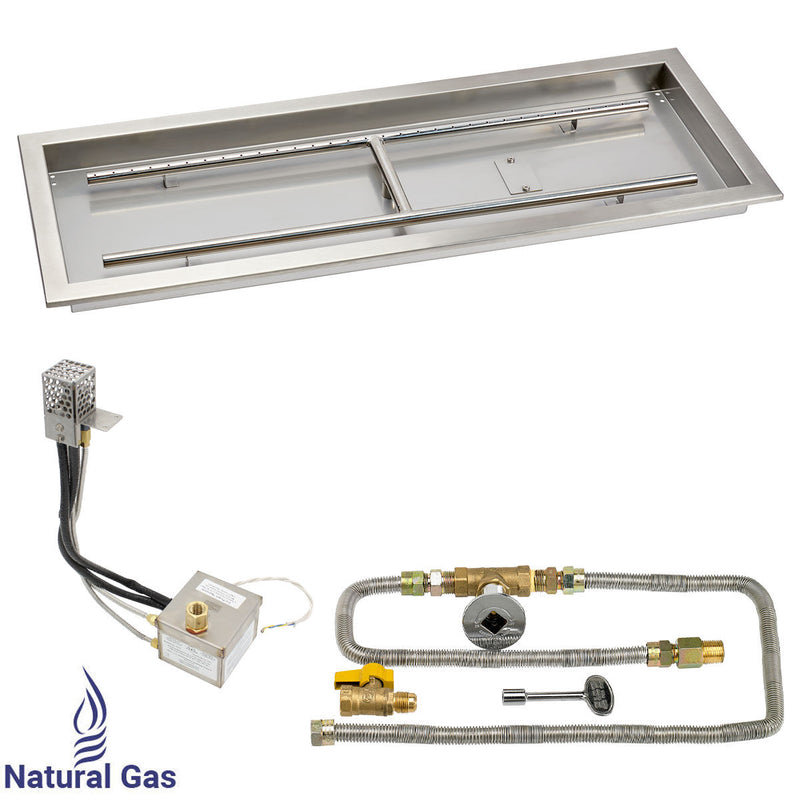

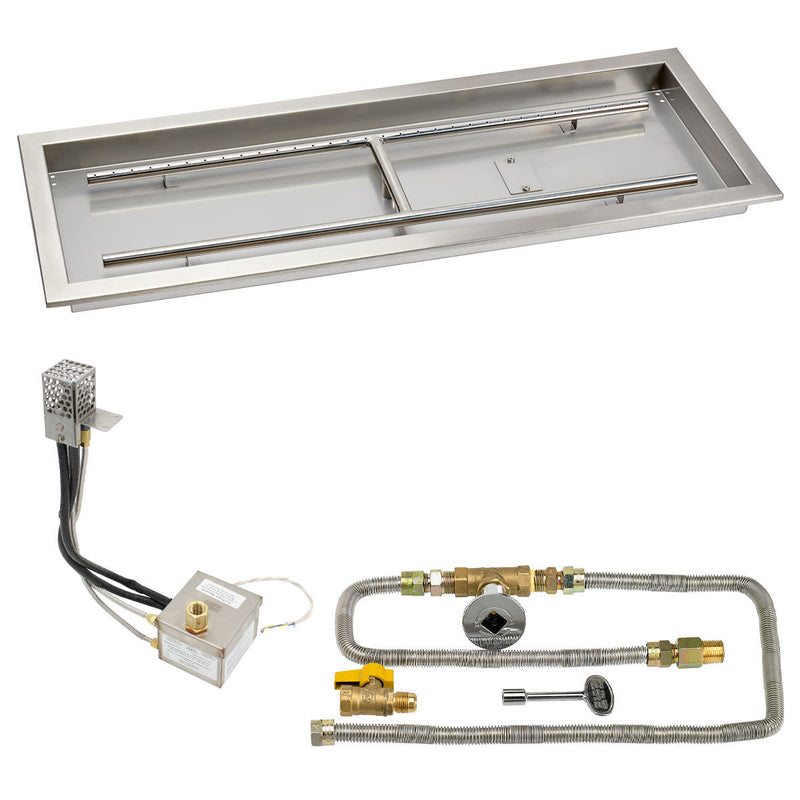

• Included Components
  • 36" x 12" Rectangular Stainless Steel Drop-In Pan
  • Built-In Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
