American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas Bundle

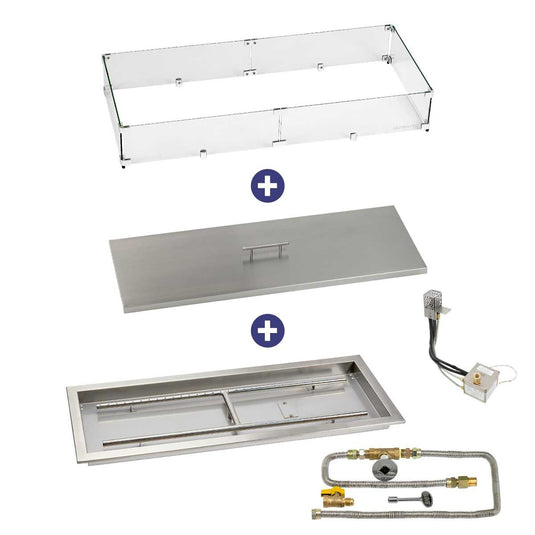

American Fire Products 36" x 12" Rectangular Stainless Steel Drop-In Fire Pit Pan with AWEIS System - Natural Gas Bundle is a complete outdoor fire feature solution designed for reliable ignition, enhanced safety, and a premium flame display. This bundle includes a durable 304 stainless steel rectangular drop-in burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover.

The 36" x 12" rectangular drop-in fire pit pan features a built-in H-burner that creates an even and consistent flame pattern. The raised flange design allows easy installation into custom fire pits, while the false-bottom design reduces fire glass requirements while maintaining a full and elegant appearance.

Equipped with the AWEIS natural gas electronic ignition system, this burner provides automatic flame control, thermopile flame sensing, and dependable operation in outdoor environments. The compact ignition system is designed for installations with limited vertical space while delivering professional-grade performance.

Ideal for custom fire pits, outdoor kitchens, patios, and entertainment areas, this complete natural gas bundle provides everything needed to create a modern built-in fire feature.

Features

• Complete natural gas fire pit bundle includes burner pan, AWEIS ignition system, flame guard, and stainless steel burner cover
• AWEIS (All Weather Electronic Ignition System) provides reliable electronic ignition and flame control
• Hot surface ignition with intermittent pilot system ensures consistent and safe operation
• Thermopile flame sensing system provides automatic safety monitoring
• Constructed from high-quality 304 stainless steel for durability and corrosion resistance
• Built-in H-burner design creates an attractive and balanced flame pattern
• Drop-in installation design with flange lip allows easy integration into custom fire pits
• Creates a false-bottom design to reduce the amount of fire glass needed
• Includes drilled burner holes to improve flame performance and prevent whistling
• Includes drilled weep holes to help prevent water buildup inside the burner pan
• Compact AWEIS system design works well in installations with limited vertical space
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Tempered glass flame guard improves safety and enhances flame reflection
• 304 stainless steel burner cover protects the burner system when not in use
• Supports up to 50 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire features
• Professional installation by a certified NFI professional is recommended

Product Specifications

• Brand: American Fire Products
• Material: Hand-crafted 304 Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Size: 36" L x 12" W
• Depth: 2"
• Flange Size: 1 1/4"
• Fuel Type: Natural Gas
• Burner Type: Built-in H-Burner
• Fire Glass Capacity: 50 lbs (not included)
• Maximum Heat Output: 165,000 BTU/hour
• AWEIS Maximum BTU Output: 290,000 BTU/hour
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24V AC
• Gas Inlet / Outlet Size: 1/2" FPT
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Hole Design: Drilled holes to prevent whistling
• Includes: 1/2" bottom gas inlet for easy installation
• Application: Outdoor vented natural gas fire features
• Installation: Certified NFI professional recommended
• Product Weight: 28 lbs
• Warranty: Pan & Burner: 5-year limited warranty / Kit: 1-year limited warranty
• AWEIS System Includes
  • AWEIS All Weather Electronic Ignition System - Natural Gas
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines

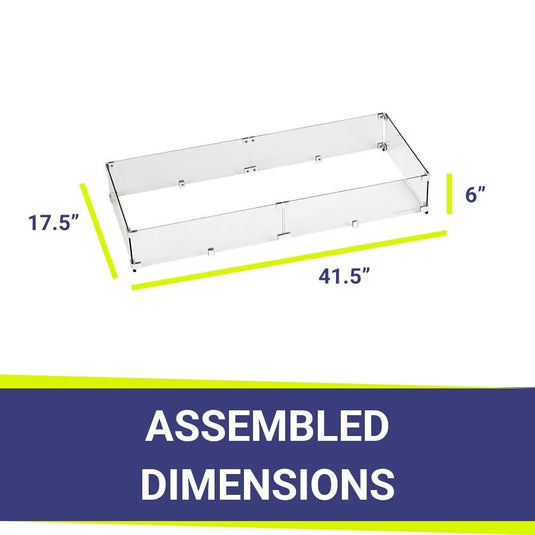

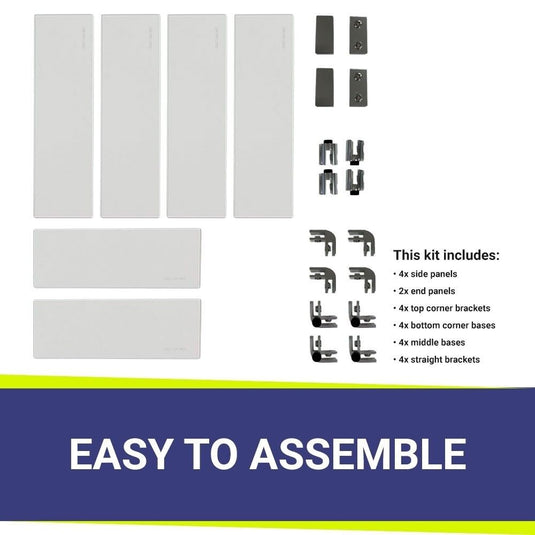

• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 41.5" x 17.5" x 6"

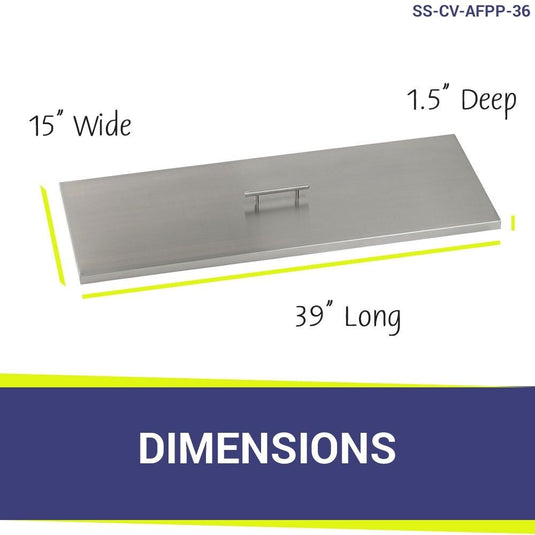

• Burner Cover Specifications
  • Material: High-quality 304 Stainless Steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 39" x 15" x 1.5"
• Bundle Includes
  • (1) 36" x 12" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas
  • (1) Rectangular Flame Guard (41.5" x 17.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (39" x 15" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
