American Fire Products 36" x 12" Stainless Steel Rectangular Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

Create a stunning and professional outdoor fire feature with the American Fire Products 48" x 14" Stainless Steel Rectangular Drop-in Fire Pit Pan with Electric Ignition System Kit, CSA Certified. Designed for both residential and commercial applications, this premium fire pit burner system combines durability, safety, and performance to deliver a powerful and visually striking flame experience.

Crafted from heavy-duty 304 stainless steel, this drop-in fire pit pan is engineered to withstand extreme outdoor environments while resisting rust and corrosion over time. The precision-drilled burner ports ensure smooth, even flame distribution while reducing unwanted whistling noise.

Equipped with a CSA-certified electronic ignition system, this unit features a push-button spark igniter, flame-sensing thermocouple safety protection, and adjustable flame control. If the flame is accidentally extinguished, the system automatically shuts off the gas supply for maximum safety and peace of mind.

This versatile kit ships ready for propane use and can be easily converted to natural gas, making it ideal for custom fire tables, backyard patios, luxury outdoor living spaces, and commercial landscape fire installations.

Features

• Complete 48" x 14" rectangular drop-in fire pit burner system
• Includes CSA Certified electric ignition system kit
• Constructed from premium handcrafted 304 stainless steel
• Designed for outdoor vented propane and natural gas fire features
• Push-button rapid spark ignition for fast and reliable startup
• Integrated flame-sensing thermocouple safety system
• Automatic gas shut-off when flame is extinguished
• Precision-drilled burner ports to reduce whistling noise
• Adjustable flame control for customized flame height
• Ships ready for propane use and convertible to natural gas
• Ideal for fire tables, patios, and commercial outdoor spaces
• CSA Certified for safety and performance compliance
• Recommended for certified NFI professional installation

Product Specifications

• Material: 100% 304 Stainless Steel (Handcrafted)
• Pan Dimensions: 48" x 14"
• Cutout Size: 49" x 15"
• Fire Glass Capacity: 80 lbs (not included)
• Burner Type: Rectangular stainless steel burner
• Burner Design: Drilled ports (not punched) to prevent whistling
• Fuel Type: Propane (convertible to Natural Gas)
• Propane Heat Output: Up to 145,000 BTU/hour
• Natural Gas Heat Output: Up to 95,000 BTU/hour
• Ignition Type: Push-button electronic spark ignition
• Ignition System: Rapid-fire ignition sequence
• Flame Safety: Thermocouple automatic gas shut-off
• Control System: Adjustable flame control panel included
• Power Source: AA battery
• Application: Outdoor vented fire features only
• Installation: Certified NFI professional recommended
• Certification: CSA Certified (ANSI Z21.97-2014 / CSA 2.41-2014)
• Included Components

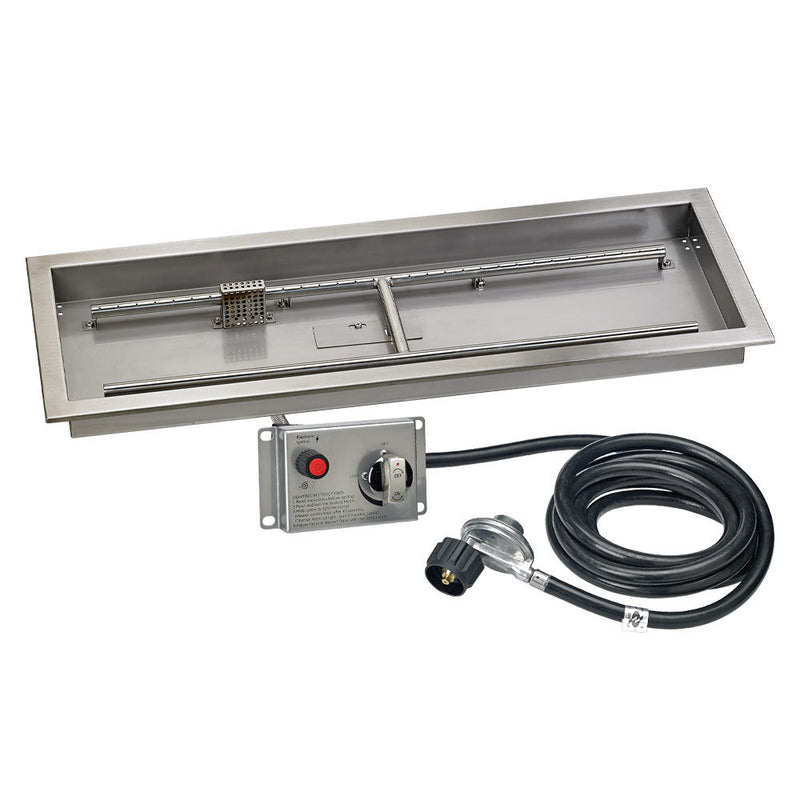

  • 48" x 14" Stainless Steel Rectangular Drop-In Fire Pit Pan
  • CSA Certified Electronic Ignition Control Panel
  • Flame-Sensing Thermocouple Safety System
  • Push Button Rapid Spark Igniter
  • Adjustable Flame Control Assembly
  • Propane Configuration Kit (Natural Gas Convertible)

Downloads

• User Manual [Download]
