American Fire Products 36" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

The American Fire Products 36" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Natural Gas Bundle is a premium fire pit system designed to deliver reliable ignition, consistent flame performance, and long-lasting durability for outdoor living spaces. This complete bundle includes a handcrafted stainless steel linear burner pan, push-button spark ignition system, tempered glass flame guard, and stainless steel burner cover, providing everything needed to create a beautiful custom fire feature.

Constructed from premium 304 stainless steel, the 36-inch linear drop-in burner pan offers outstanding resistance to corrosion, rust, and high temperatures. Its built-in T-burner provides even flame distribution across the entire burner, while precision-drilled weep holes prevent water accumulation for improved safety and performance.

The included push-button spark ignition system provides quick, dependable lighting with a simple press of a button. Complete with gas hoses and a chrome key valve, this bundle is designed for easy installation in outdoor vented natural gas fire features.

A tempered glass flame guard helps stabilize flames during windy conditions while enhancing safety and aesthetics. The included stainless steel burner cover protects the burner when not in use, helping extend the life of your fire pit system.

Features

• Complete 36" x 6" linear fire pit system bundle
• Includes push-button spark ignition kit for Natural Gas
• Constructed from premium 304 stainless steel for superior durability
• Built-in T-burner provides even flame distribution
• Battery-powered spark ignition offers fast and reliable lighting
• Drilled weep holes help prevent water buildup and burner whistling
• Includes gas hoses and chrome key valve
• Designed for outdoor vented natural gas fire features only
• Includes tempered glass flame guard for improved wind protection
• Includes stainless steel burner cover for added protection
• Ideal for custom residential and commercial outdoor fire features
• Recommended for professional installation

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 36" L x 6" W x 2" D (1 1/4" flange)
• Material: High-Quality 304 Stainless Steel (Handcrafted)
• Product Weight: 15 lbs
• Fuel Type: Natural Gas
• Burner Type: Built-in T-Burner Linear System

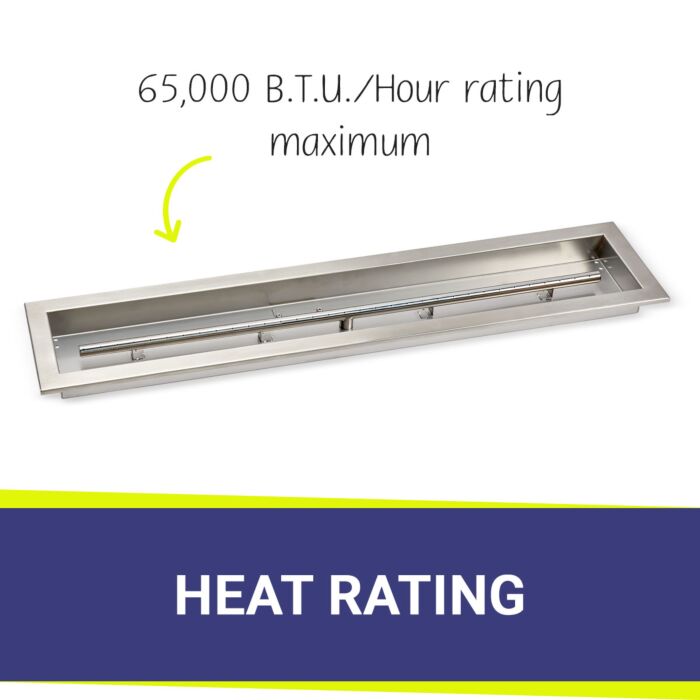

• Heat Output: Up to 65,000 BTU/hour
• Ignition Type: Push Button Spark Ignition (Battery Operated)
• Gas Inlet: 1/2" bottom gas inlet
• Fire Glass Capacity: 30 lbs (not included)
• Special Feature: Precision-drilled weep holes (anti-whistling design)
• Application: Outdoor vented natural gas fire features only
• Flame Guard: Tempered glass panels with polished aluminum brackets
• Burner Cover: 304 stainless steel with brushed finish and heavy-duty handle
• Installation: Professional installation recommended
• Safety Warning: California Prop 65 Warning applies

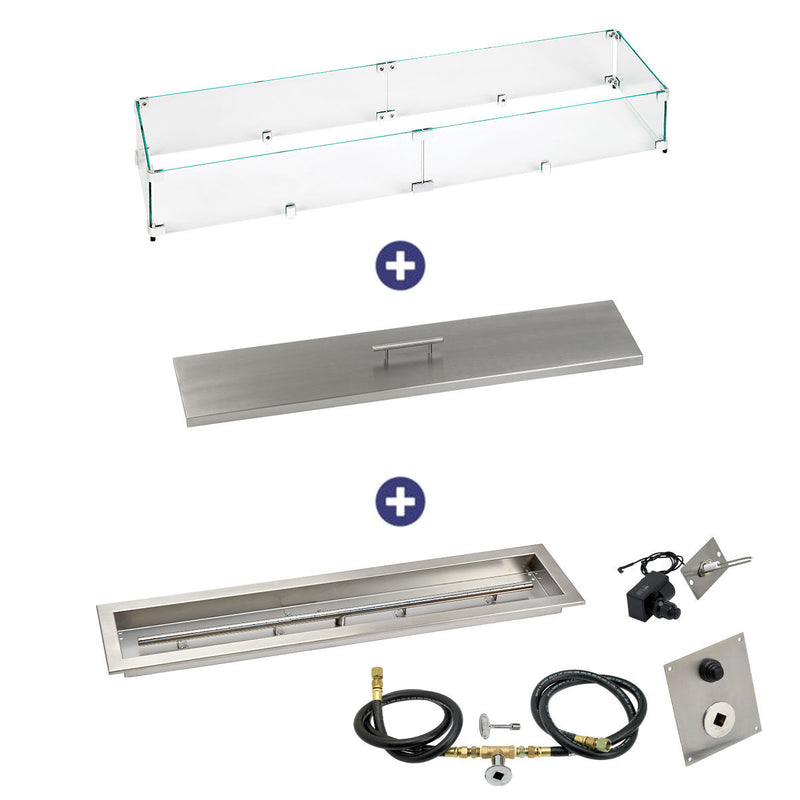

• Bundle Includes
  • 36" x 6" Stainless Steel Linear Drop-In Burner Pan with Spark Ignition Kit (Natural Gas)
  • Push-button spark ignition system
  • Gas hoses and chrome key valve
  • Linear Tempered Glass Flame Guard (41.5" x 11.5" x 6")
  • Stainless Steel Burner Cover (39" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
