American Fire Products 36" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane Bundle

The American Fire Products 36" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Propane Bundle is a complete fire pit burner system designed to simplify the installation of a beautiful, reliable outdoor propane fire feature. This all-in-one bundle includes a handcrafted stainless steel linear burner pan, push-button spark ignition kit, tempered glass flame guard, and stainless steel burner cover, providing everything needed to build a professional-quality fire pit.

Built from premium 304 stainless steel, the 36-inch linear drop-in pan delivers outstanding durability, corrosion resistance, and long-lasting outdoor performance. The integrated T-burner produces a consistent, evenly distributed flame, while precision-drilled weep holes help prevent water accumulation and eliminate burner whistling.

The included push-button spark ignition kit provides fast, battery-powered ignition with the simple press of a button. Designed specifically for propane fire features, the kit includes a regulator, air mixer, chrome key valve, and gas hose connections for dependable operation.

A tempered glass flame guard helps shield the flame from wind while adding an elegant appearance, and the included stainless steel burner cover protects the burner system from weather and debris when the fire pit is not in use.

Features

• Complete 36" x 6" linear drop-in fire pit system bundle
• Includes push-button spark ignition kit for propane
• Constructed from premium 304 stainless steel for superior durability
• Built-in T-burner delivers consistent, full-length flame performance
• Battery-powered push-button ignition for quick and reliable startup
• Includes propane regulator, air mixer, chrome key valve, and gas hoses
• Precision drilled weep holes reduce water buildup and prevent burner whistling
• Designed for outdoor vented propane fire features only
• Includes tempered glass flame guard for wind protection and flame stability
• Includes 304 stainless steel burner cover for added protection
• Reduces required fire glass with efficient drop-in pan design
• Ideal for DIY fire pits, outdoor kitchens, patios, and backyard entertainment areas

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products

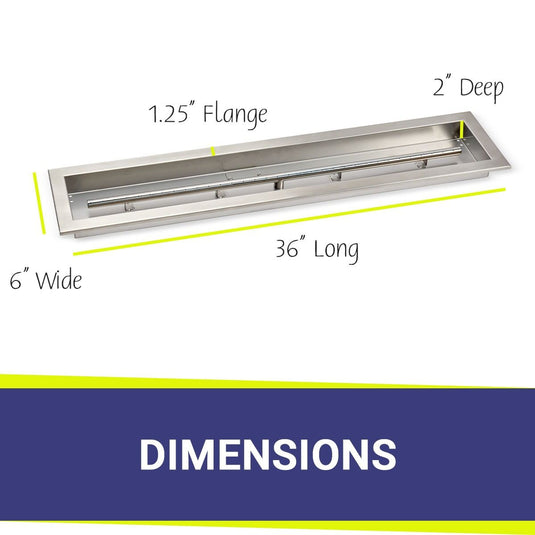

• Pan Dimensions: 36" L x 6" W x 2" D (1 1/4" flange)
• Material: High-Quality 304 Stainless Steel (Handcrafted)
• Product Weight: 15 lbs
• Fire Glass Capacity: 30 lbs (not included)
• Burner Type: Built-in T-Burner
• Fuel Type: Propane

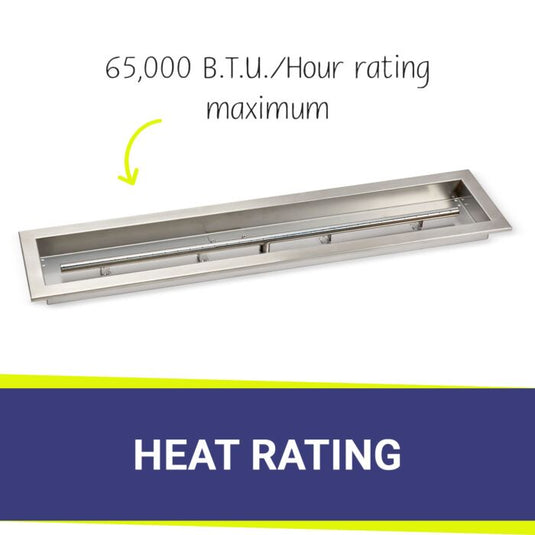

• Heat Output: Up to 65,000 BTU/hour
• Ignition Type: Battery-Powered Push Button Spark Ignition
• Gas Connections: Propane regulator, air mixer, chrome key valve, and gas hoses included
• Gas Inlet: 1/2" Bottom Inlet
• Special Feature: Drilled burner ports to reduce whistling
• Application: Outdoor vented propane fire features only
• Flame Guard Size: 41.5" x 11.5" x 6"
• Burner Cover Size: 39" x 9" x 1.5"
• Safety Warning: Prop 65 warning applies

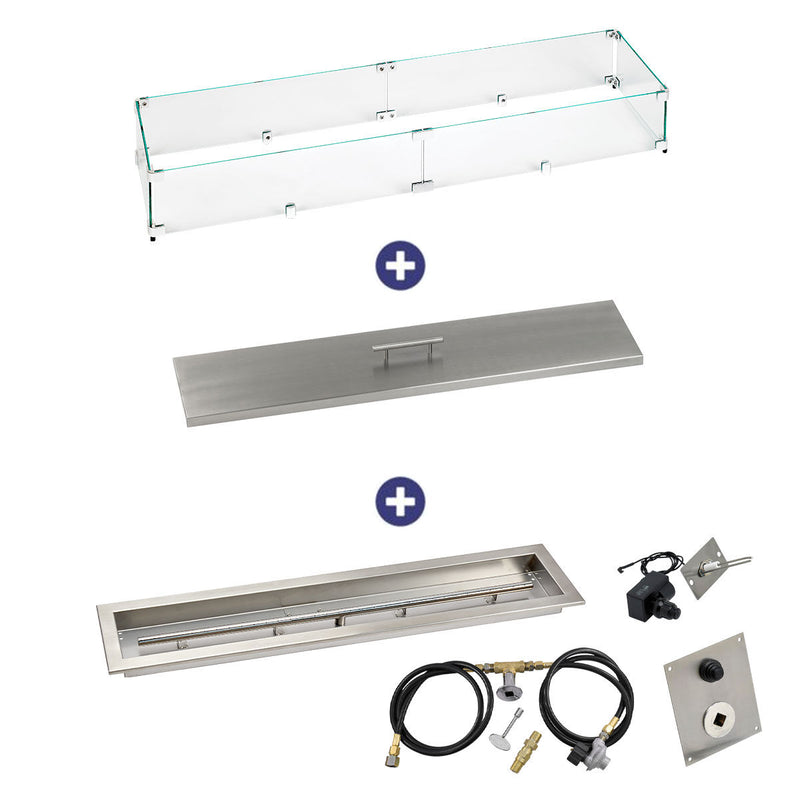

• Bundle Includes
  • 36" x 6" Linear Channel Drop-In Pan with Built-in T-Burner
  • Push Button Spark Ignition Kit (Propane)
  • Propane regulator, air mixer, chrome key valve, and gas hose connections
  • Linear Tempered Glass Flame Guard (41.5" x 11.5" x 6")
  • 304 Stainless Steel Burner Cover (39" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
