American Fire Products 36" x 6" Linear Stainless Steel Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified - Bundle

The American Fire Products 36" x 6" Linear Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System Kit – CSA Certified Bundle is a compact, safety-focused outdoor fire feature solution designed for residential and professional fire pit installations. This complete bundle includes a durable 36-inch linear stainless steel burner pan, CSA-certified electric ignition system, tempered glass flame guard, and stainless steel protective cover to deliver a reliable, easy-to-use, and visually striking flame experience.

Crafted from premium 304 stainless steel, the linear drop-in burner pan is engineered for long-term durability, corrosion resistance, and high-heat performance. The reinforced triple-walled construction with rolled edges ensures structural strength and prevents warping over time. The built-in linear burner produces a smooth, even flame presentation, while drilled burner ports help eliminate whistling and improve flame consistency.

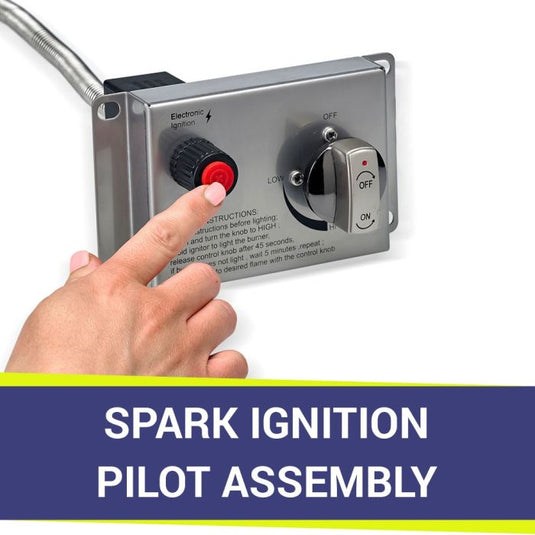

The CSA-certified electric ignition system provides enhanced safety with an integrated thermocouple and automatic flame sensor, which monitors flame presence and shuts off the gas supply if the flame is extinguished. The push-button ignition system ensures fast, reliable startup with simple operation using a battery-powered control system.

This bundle is completed with a tempered glass flame guard for wind protection and flame stability, along with a stainless steel burner cover to protect the system when not in use. Ideal for modern outdoor fire pits, patios, and custom landscape designs.

Features

• Complete 36" x 6" linear fire pit burner bundle with CSA-certified electric ignition system
• Built-in automatic flame sensor with thermocouple safety shut-off
• Constructed from premium 100% 304 stainless steel for maximum durability
• Heavy-duty triple-reinforced side walls and rolled edges prevent warping
• Linear burner design provides a clean, even flame presentation
• Push-button electric ignition system for fast and easy startup
• Battery-powered ignition system for reliable outdoor operation
• Drilled burner ports reduce whistling and improve flame consistency
• Compatible with propane and convertible to natural gas
• CSA certified for outdoor decorative gas appliance safety standards

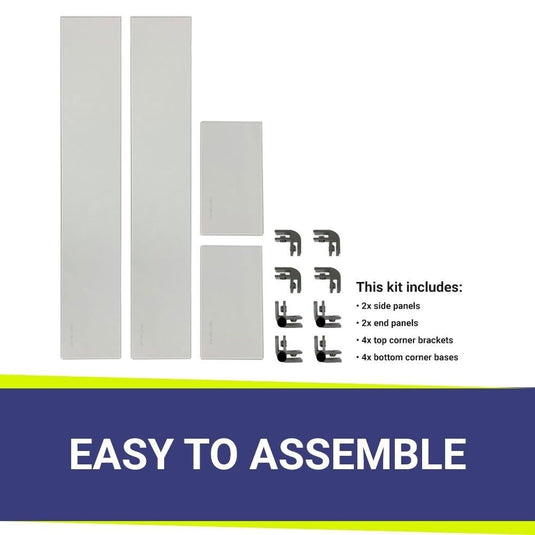

• Tempered glass flame guard improves wind resistance and flame stability
• Stainless steel burner cover protects burner pan when not in use
• Compact design ideal for smaller fire pit installations and patios
• Recommended for professional installation for safety and performance

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner Bundle
• Brand: American Fire Products

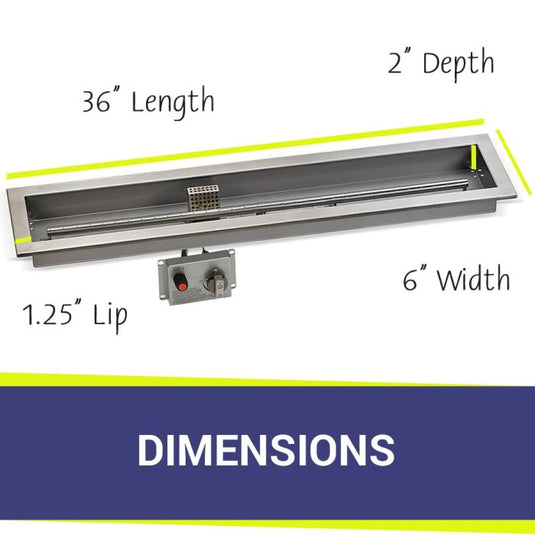

• Pan Dimensions: 36" L x 6" W
• Cutout Size: 37" x 7"
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color / Finish: Stainless Steel
• Fuel Type: Propane (Convertible to Natural Gas)
• Burner Type: Linear Stainless Steel Burner

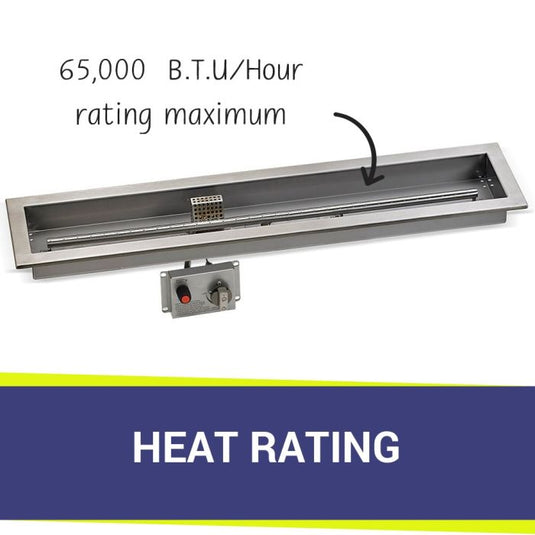

• Heat Output: Up to 65,000 BTU/hour
• Ignition Type: Push Button Electric Ignition
• Safety System: Automatic Flame Sensor with Thermocouple Shut-Off
• Battery Type: AA Battery
• Fire Glass Capacity: Approx. 35 lbs (not included)
• Application: Outdoor vented gas fire features only
• Certification: CSA Certified (ANS Z21.97-2014 / CSA 2.41-2014)
• Installation: Certified NFI professional recommended
• Safety Warning: California Prop 65 warning applies

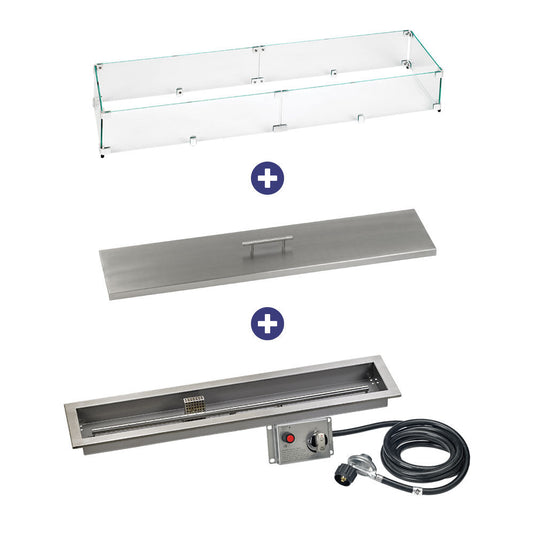

• Included in Bundle
  • 36" x 6" Linear Stainless Steel Drop-In Fire Pit Pan with Electric Ignition System (CSA Certified)

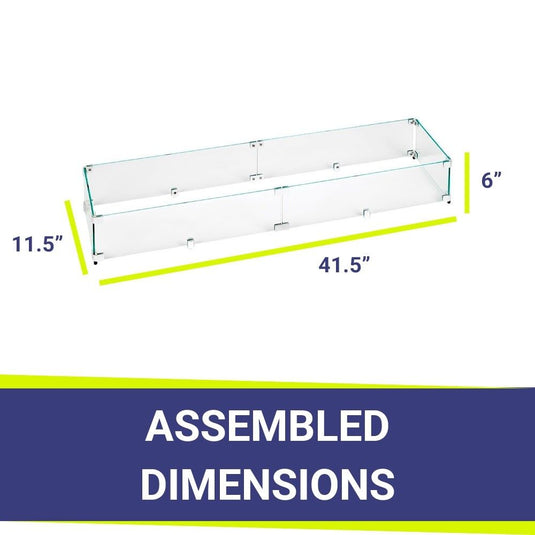

  • Linear Tempered Glass Flame Guard (41.5" x 11.5" x 6")

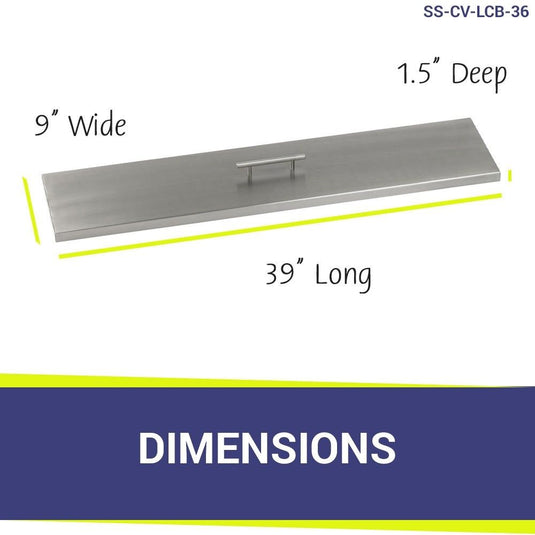

  • Stainless Steel Burner Cover (39" x 9" x 1.5")

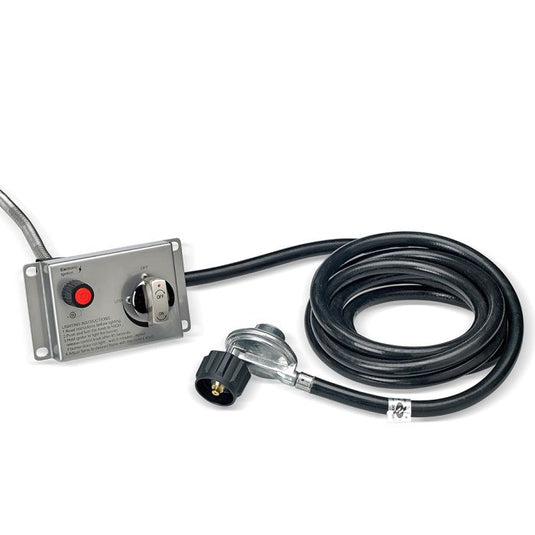

  • Electric Ignition System with Thermocouple Safety Controls

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
