American Fire Products 48" x 14" Rectangular Stainless Steel Drop in Fire Pit Pan with Spark Ignition Kit - Natural Gas Bundle

American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas Bundle is a complete outdoor fire pit solution designed to deliver reliable ignition, impressive flame performance, and long-lasting durability. This bundle includes a premium stainless steel rectangular drop-in burner pan, push-button spark ignition kit, tempered glass flame guard, and a matching stainless steel burner cover.

The 48" x 14" drop-in fire pit pan features a built-in H-burner that creates an even, beautiful flame pattern while the false-bottom design reduces the amount of fire glass required without sacrificing the appearance of a full fire pit. Crafted from handcrafted stainless steel, the pan resists corrosion, withstands extreme outdoor conditions, and includes drilled burner ports and weep holes for quieter operation and improved drainage.

Designed for natural gas outdoor fire features, the included push-button spark ignition system offers quick, dependable lighting, while the flame guard and burner cover provide added safety, weather protection, and a clean finished appearance. Ideal for custom residential and commercial fire pit installations.

Features

• Complete fire pit bundle includes burner pan, spark ignition kit, flame guard, and stainless steel burner cover
• Constructed from high-quality handcrafted stainless steel for excellent durability and corrosion resistance
• 48" x 14" rectangular drop-in fire pit pan with built-in H-burner
• Drop-in design allows easy installation into custom fire pit enclosures
• False-bottom construction reduces fire glass requirements while maintaining a full appearance
• Built-in H-burner delivers an even and attractive flame pattern
• Push-button spark ignition system provides fast and reliable lighting
• Battery-powered spark ignitor included
• Includes gas hoses, chrome key valve, and ignition accessories for natural gas installation
• Drilled burner holes help reduce burner whistling
• Built-in weep holes help prevent water accumulation
• Tempered glass flame guard improves safety while protecting flames from wind
• 304 stainless steel burner cover protects the burner when not in use
• Supports up to 80 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire pit installations

Product Specifications

• Brand: American Fire Products
• Material: Handcrafted Stainless Steel
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 48" L x 14" W x 2" D
• Flange: 1-1/4"
• Product Weight: 27 lbs
• Fuel Type: Natural Gas
• Fire Glass Capacity: 80 lbs (not included)
• Burner Design: Built-in H-Burner

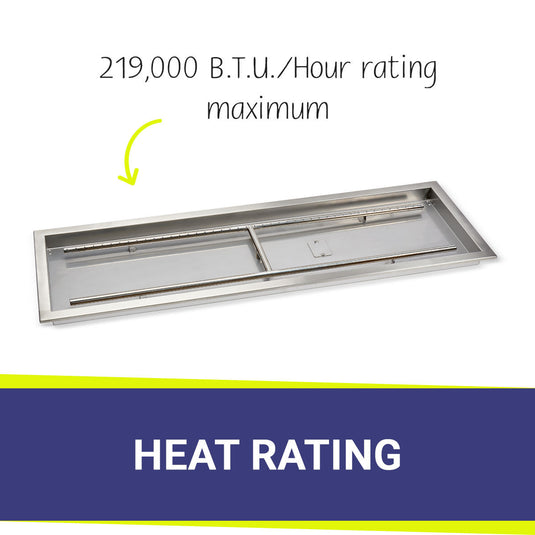

• Burner Heat Rating: 219,000 BTU/hour maximum
• Burner Ports: Precision drilled holes to reduce whistling
• Drainage: Integrated weep holes
• Application: Outdoor vented natural gas fire features only
• Spark Ignition Kit Includes
  • Battery-powered push-button spark ignitor
  • Chrome key valve with key
  • Two gas flex hoses (5' and 5')
  • Natural gas connection accessories
  • Optional mounting plate available separately

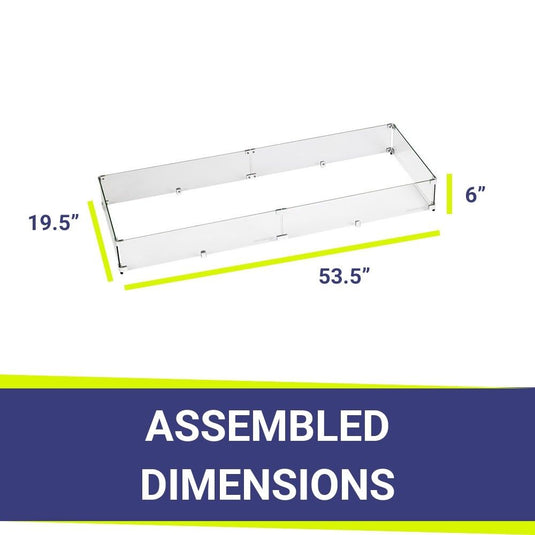

• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Assembled Size: 53.5" x 19.5" x 6"

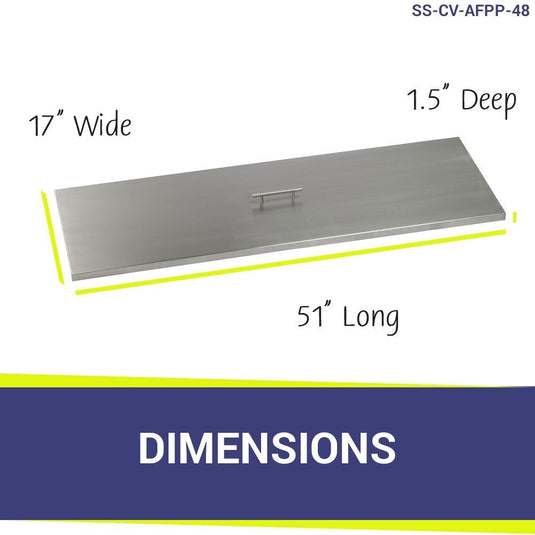

• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 51" x 17" x 1.5"

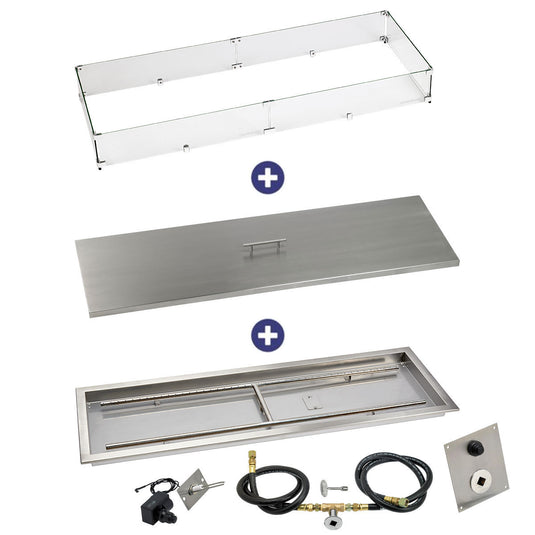

• Bundle Includes
  • (1) 48" x 14" Rectangular Stainless Steel Drop-In Fire Pit Pan with Spark Ignition Kit - Natural Gas
  • (1) Rectangular Flame Guard (53.5" x 19.5" x 6")
  • (1) Rectangular Stainless Steel Burner Cover (51" x 17" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
