American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas

Enhance your outdoor living space with the American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas. Designed for both residential and commercial fire features, this complete system combines a durable stainless steel drop-in pan, integrated H-burner, and advanced AWEIS electronic ignition technology to deliver powerful flame performance, reliable ignition, and a clean modern fire display.

The 48" x 14" rectangular drop-in pan features an integrated flange for easy installation and removal, making it ideal for custom fire pit builds. Its false-bottom design reduces the amount of fire glass required while maintaining a full, visually striking flame effect. Constructed from premium 304 stainless steel, the pan is engineered for long-term durability, corrosion resistance, and high-heat outdoor performance.

The system includes a built-in stainless steel H-burner rated at 219,000 BTU, producing a wide and dramatic flame pattern ideal for larger outdoor fire installations. The integrated AWEIS (All Weather Electronic Ignition System) provides automatic hot surface ignition, flame sensing safety, and dependable all-weather operation, ensuring safe and convenient use in outdoor environments.

Features

• Complete 48" x 14" rectangular fire pit system with AWEIS electronic ignition
• Designed for natural gas outdoor vented fire features
• Built-in stainless steel H-burner rated up to 219,000 BTU
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Durable 304 stainless steel construction for corrosion and heat resistance
• Drop-in pan design with integrated flange for easy installation and removal
• False-bottom design reduces fire glass requirements and installation costs
• Built-in 1/2" gas inlet for simple gas connection
• Drilled burner ports help eliminate whistling and burner noise
• Integrated weep holes prevent water accumulation
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 41 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Style: Contemporary

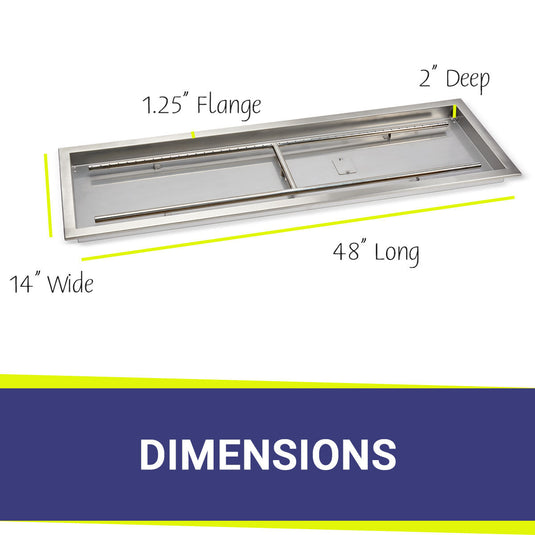

• Dimensions: 48" L x 14" W x 2" D x 1 1/4" Flange
• Fuel Type: Natural Gas
• Fire Glass Capacity: 70 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel H-Burner
• Burner Heat Rating: 219,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

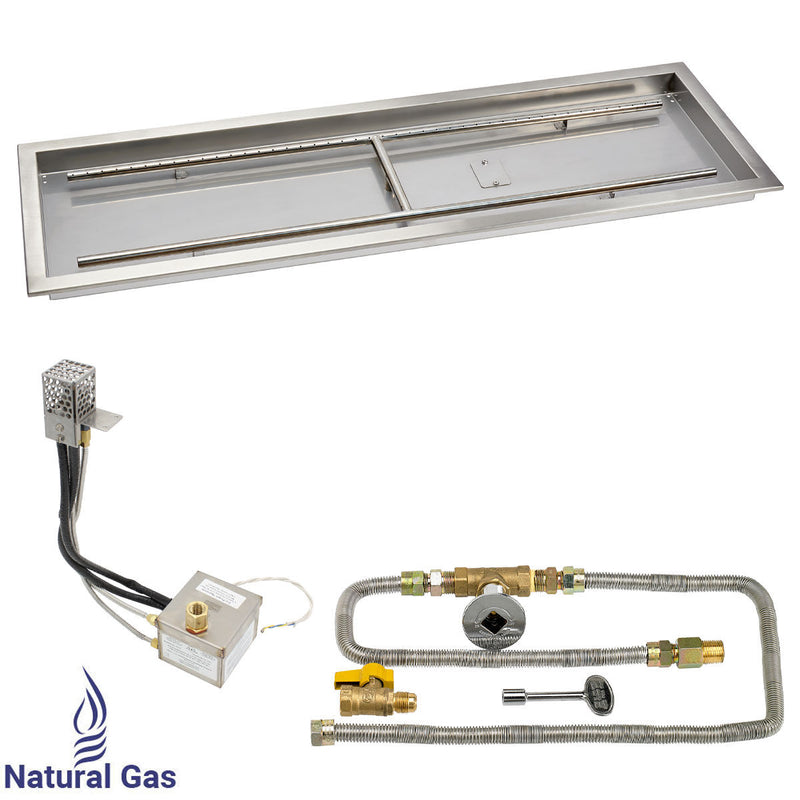

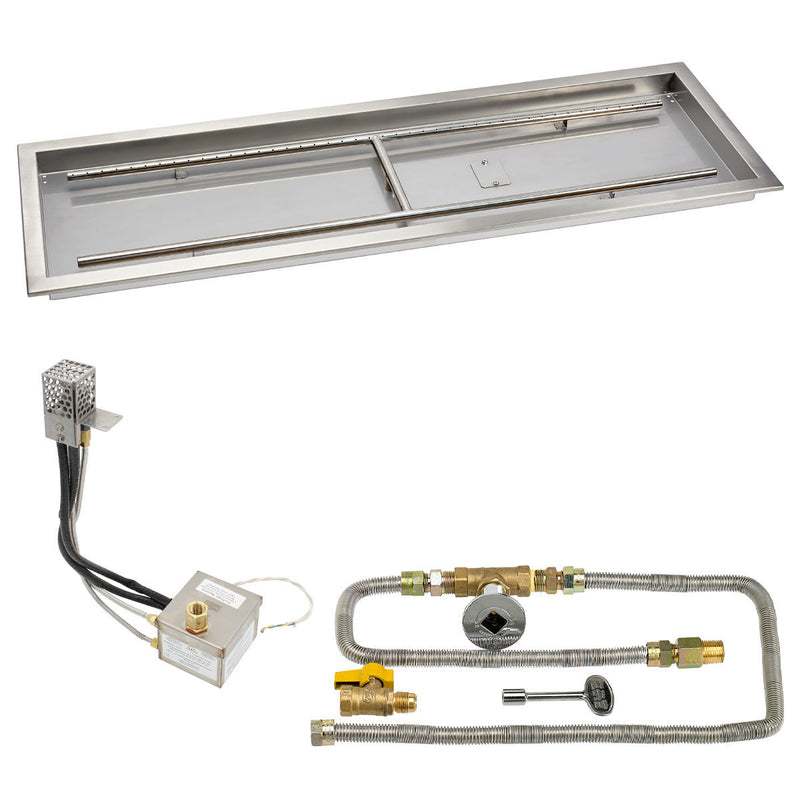

• Included Components
  • 48" x 14" Stainless Steel Rectangular Drop-In Pan
  • Built-In Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
