American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas Bundle

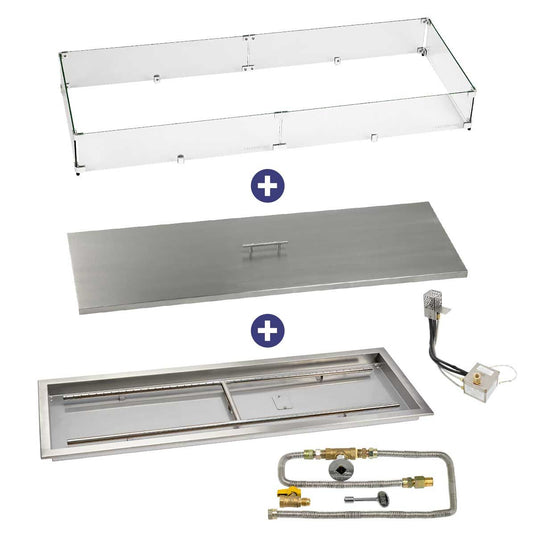

American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas Bundle is a complete outdoor fire pit solution designed to deliver powerful flames, reliable electronic ignition, and long-lasting durability. This premium bundle includes a 48" x 14" handcrafted 304 stainless steel drop-in burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover.

The 48" x 14" rectangular drop-in fire pit pan features a built-in H-burner and reinforced stainless steel construction designed to withstand extreme outdoor conditions, high temperatures, and everyday use. Its drop-in design creates a false bottom inside the fire pit, reducing the amount of fire glass required while maintaining a full and elegant appearance.

Equipped with the AWEIS electronic ignition system, this bundle provides convenient push-button operation, automatic flame monitoring, and reliable gas control. The compact AWEIS system is ideal for custom fire features with limited installation space while providing enhanced safety and performance.

The included tempered glass flame guard improves safety and flame presentation, while the 304 stainless steel burner cover protects the burner pan when not in use. Designed for outdoor natural gas fire features, this complete bundle provides everything needed to create a professional-quality fire pit installation.

Features

• Complete natural gas fire pit bundle includes burner pan, AWEIS electronic ignition system, flame guard, and stainless steel burner cover
• AWEIS All Weather Electronic Ignition System provides reliable electronic ignition and gas control
• Compact ignition system design is ideal for fire features with limited installation space
• Handcrafted 304 stainless steel burner pan provides excellent durability and corrosion resistance
• Built-in H-burner design creates a consistent and attractive flame pattern
• Drop-in fire pit pan design allows easy installation into custom fire pit enclosures
• Creates a false bottom effect to reduce fire glass requirements while maintaining a full appearance
• Drilled burner holes help prevent burner whistling and improve flame performance
• Includes thermopile flame sensing technology for enhanced safety
• Hot surface ignition (glow plug) provides dependable ignition performance
• Intermittent pilot ignition sequence improves operational safety
• Includes 24V transformer, safety shut-off valve, key valve, and gas flex lines
• Tempered glass flame guard provides an additional safety barrier and enhances flame visibility
• 304 stainless steel burner cover protects the burner pan from outdoor elements
• Supports up to 70 lbs of fire glass (not included)
• Designed for outdoor vented natural gas fire pit applications
• Certified NFI professional installation recommended
• Includes a 5-year limited warranty on pan and burner and 1-year limited warranty on ignition kit

Product Specifications

• Brand: American Fire Products
• Material: 100% 304 Stainless Steel (handcrafted)
• Color: Stainless Steel
• Style: Contemporary
• Pan Dimensions: 48" L x 14" W
• Depth: 2"
• Flange Size: 1 1/4"
• Product Weight: 41 lbs
• Fuel Type: Natural Gas
• Fire Glass Capacity: 70 lbs (not included)
• Burner Design: Built-in H-burner
• Burner Heat Rating: 219,000 BTU/hour maximum
• Special Feature: Drilled burner holes to prevent whistling
• Gas Inlet: 1/2" bottom gas inlet for easy installation
• Inlet / Outlet Size: 1/2" FPT
• Maximum Gas Pressure: 2.0 PSI
• Application: Outdoor vented natural gas fire features only
• Installation: Certified NFI professional recommended
• Flame / Heat Sense: Thermopile
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• AWEIS Electronic Ignition System Specifications
  • System Type: AWEIS (All Weather Electronic Ignition System)
  • Maximum BTU Output: 290,000 BTU/hr
  • Operating Voltage: 24V AC
  • Components Included:
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve
  • Two Gas Flex Lines
  • Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8" tall
  • Ignition Control: Electronic hot surface ignition
  • Safety Feature: Automatic flame sensing
• Flame Guard Specifications
  • Material: Clear tempered glass panels
  • Brackets: Polished aluminum fire-resistant brackets
  • Purpose: Provides flame protection and enhances flame appearance
  • Assembled Size: 53.5" x 19.5" x 6"
• Burner Cover Specifications
  • Material: High-quality 304 stainless steel
  • Finish: Smooth brushed finish
  • Handle: Heavy-duty solid chrome handle
  • Actual Size: 51" x 17" x 1.5"
• Bundle Includes
  • (1) 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Natural Gas
  • (1) Rectangular Flame Guard - 53.5" x 19.5" x 6"
  • (1) Rectangular Stainless Steel Burner Cover - 51" x 17" x 1.5"

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
