American Fire Products 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane Bundle is a complete outdoor fire pit solution that combines a premium 304 stainless steel drop-in burner pan, AWEIS (All Weather Electronic Ignition System), tempered glass flame guard, and stainless steel burner cover for reliable performance and long-lasting durability.
Designed for whole house propane fire features, the built-in H-burner delivers a beautiful, even flame while the drop-in pan creates a false bottom that reduces the amount of fire glass needed without compromising the appearance of your fire pit. The AWEIS hot surface ignition system features automatic flame sensing, thermopile safety monitoring, and dependable electronic ignition for convenient operation.
Perfect for custom outdoor fire pits, patios, and outdoor living spaces, this complete bundle provides professional-grade performance, enhanced safety, and everything needed to create a stunning fire feature.
Features
- Complete whole house propane fire pit bundle includes burner pan, AWEIS electronic ignition system, flame guard, and stainless steel burner cover
- AWEIS All Weather Electronic Ignition System provides reliable electronic ignition and automatic gas control
- Designed specifically for whole house propane fire pit installations
- Compact ignition system fits fire features with limited vertical installation space
- Constructed from handcrafted 304 stainless steel for outstanding corrosion resistance and durability
- Built-in H-burner produces an even, attractive flame pattern
- Drop-in fire pit pan design allows simple installation into custom fire pit enclosures
- Creates a false bottom to reduce fire glass usage while maintaining a full appearance
- Drilled burner holes help eliminate burner whistling
- Thermopile flame sensing automatically monitors flame presence for improved safety
- Hot Surface Ignition (Glow Plug) provides reliable ignition performance
- Intermittent pilot ignition sequence enhances operational safety
- Includes 24V transformer, safety shut-off valve, key valve, propane air mixer, and two gas flex lines
- Tempered glass flame guard improves safety while enhancing flame visibility
- 304 stainless steel burner cover protects the burner from weather and debris
- Supports up to 70 lbs of fire glass (not included)
- Designed for outdoor vented whole house propane fire pit applications
- Certified NFI professional installation recommended
- 5-year limited warranty on the pan and burner
- 1-year limited warranty on the AWEIS ignition kit
Product Specifications
- Brand: American Fire Products
- Material: 100% 304 Stainless Steel (Handcrafted)
- Color: Stainless Steel
- Style: Contemporary
- Dimensions: 48" L x 14" W x 2" D
- Flange: 1 1/4"
- Product Weight: 41 lbs
- Fuel Type: Whole House Propane
- Fire Glass Capacity: 70 lbs (not included)
- Burner Type: Built-in H-Burner
- Maximum Heat Output: 219,000 BTU/hr
- Gas Inlet: 1/2" Bottom Gas Inlet
- Inlet / Outlet Size: 1/2" FPT
- Special Feature: Drilled burner ports to reduce whistling
- Application: Outdoor vented whole house propane fire features only
- Installation: Certified NFI Professional Recommended
-
AWEIS Ignition System
- System: AWEIS (All Weather Electronic Ignition System)
- Ignition Type: Hot Surface Ignition (Glow Plug)
- Ignition Sequence: Intermittent Pilot
- Flame Monitoring: Thermopile Flame Sensor
- Maximum BTU Capacity: 290,000 BTU/hr
- Operating Voltage: 24V AC
- Maximum Inlet Gas Pressure: 2.0 PSI
- Valve Enclosure: 4 3/8" x 4 3/8" x 4 3/8"
- Includes: 24V Transformer, Safety Shut-Off Valve, Key Valve, Two Gas Flex Lines, Propane Air Mixer
-
Flame Guard Specifications
- Material: Clear Tempered Glass
- Brackets: Polished Aluminum Fire-Resistant Brackets
- Assembled Size: 53.5" x 19.5" x 6"
-
Burner Cover Specifications
- Material: 304 Stainless Steel
- Finish: Smooth Brushed Finish
- Handle: Heavy-Duty Chrome Handle
- Actual Size: 51" x 17" x 1.5"
-

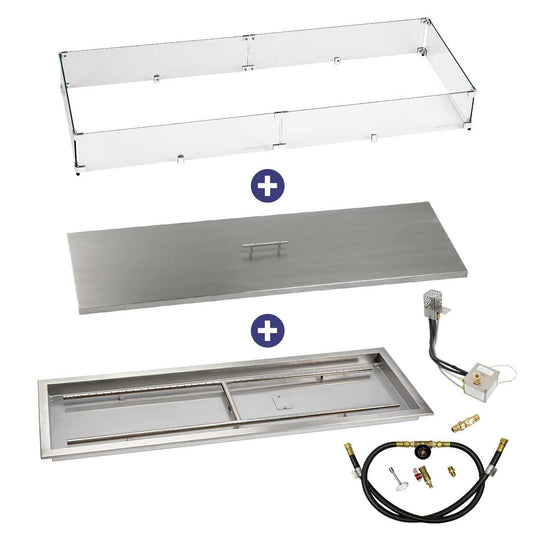

Bundle Includes
- (1) 48" x 14" Rectangular Stainless Steel Drop-In Pan with AWEIS System - Whole House Propane
- (1) Rectangular Tempered Glass Flame Guard (53.5" x 19.5" x 6")
- (1) Rectangular Stainless Steel Burner Cover (51" x 17" x 1.5")
Downloads
- User Manual [Download]
- American Fire Products Cutout Size & Recommended Fire Ring [Download]
