American Fire Products 48" x 24" Rectangular Stainless Steel Flat Pan

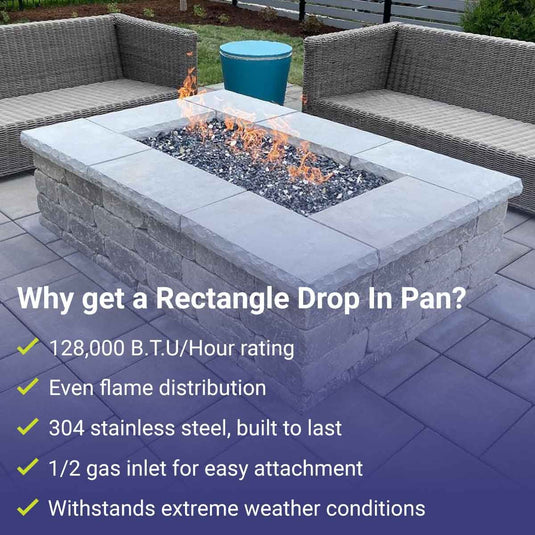

American Fire Products 48" x 24" Rectangular Stainless Steel Flat Pan provides a simple and efficient solution for building a custom outdoor fire pit while significantly reducing the amount of fire glass required. Designed to be pinched between the top two courses of fire pit blocks, this premium flat pan creates a false bottom that minimizes fire media usage while producing a beautiful, evenly distributed flame display.

Constructed from handcrafted 304 stainless steel, this flat pan is engineered to withstand extreme temperatures and harsh outdoor conditions without rusting or corroding. Built-in weep holes help prevent water accumulation, while the integrated 1/2-inch bottom gas inlet allows for quick and easy connection to natural gas or propane systems.

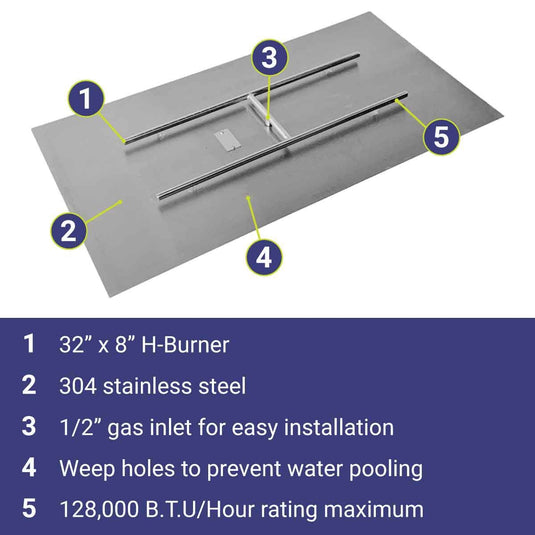

This fire pit pan includes a 32" x 8" stainless steel H-burner, eliminating the need to purchase a separate burner. The H-burner features precision-drilled burner holes that help eliminate loud whistling while creating a realistic and evenly distributed flame pattern. Designed exclusively for outdoor vented fire features, the system delivers up to 128,000 BTU/hour of heat. For propane installations, a propane adapter is required.

Features

• Premium 48" x 24" rectangular stainless steel flat pan
• Handcrafted from 304 stainless steel for superior durability
• Includes a 32" x 8" stainless steel H-burner
• Flat pan design creates a false bottom to reduce fire glass usage
• Designed to be installed between the top two courses of fire pit blocks
• Precision-drilled burner holes help eliminate loud whistling
• Built-in 1/2-inch bottom gas inlet for easy gas connection
• Built-in weep holes help prevent water accumulation
• Produces up to 128,000 BTU/hour
• Compatible with natural gas and propane fire features
• Designed for outdoor vented fire features only
• Propane installations require a propane adapter
• Withstands harsh weather and extreme temperatures
• Ideal for custom rectangular fire pits and outdoor fire features

Product Specifications

• Brand: American Fire Products
• Product Name: 48" x 24" Rectangular Stainless Steel Flat Pan
• Product Type: Rectangular Flat Fire Pit Pan
• Material: Handcrafted 304 Stainless Steel
• Dimensions: 48" × 24"
• Weight: 25 lbs
• Burner Type: Included H-Burner
• H-Burner Size: 32" × 8"
• Description: Stainless steel fire pit pan
• Gas Inlet: Built-in 1/2" Bottom Gas Inlet
• Heat Output: Up to 128,000 BTU/Hour
• Fuel Compatibility: Natural Gas and Propane
• Installation Location: Outdoor Vented Fire Features Only
• Burner Holes: Precision Drilled (No Whistling)
• Water Drainage: Built-in Weep Holes
• Propane Requirement: Propane Adapter Required for Liquid Propane Conversion
• Application: Outdoor Fire Pits and Custom Fire Features
• Kit Includes
  • 48" x 24" Stainless Steel Rectangular Flat Pan
  • 32" x 8" Stainless Steel H-Burner
  • Built-in 1/2" Bottom Gas Inlet

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
