American Fire Products 48" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas

Create a premium outdoor fire feature with the American Fire Products 48" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas. Engineered for reliable performance and easy installation, this complete fire pit system combines a handcrafted stainless steel burner pan, a high-output H-burner, and the advanced AWEIS electronic ignition system to deliver a beautiful, evenly distributed flame at the push of a button.

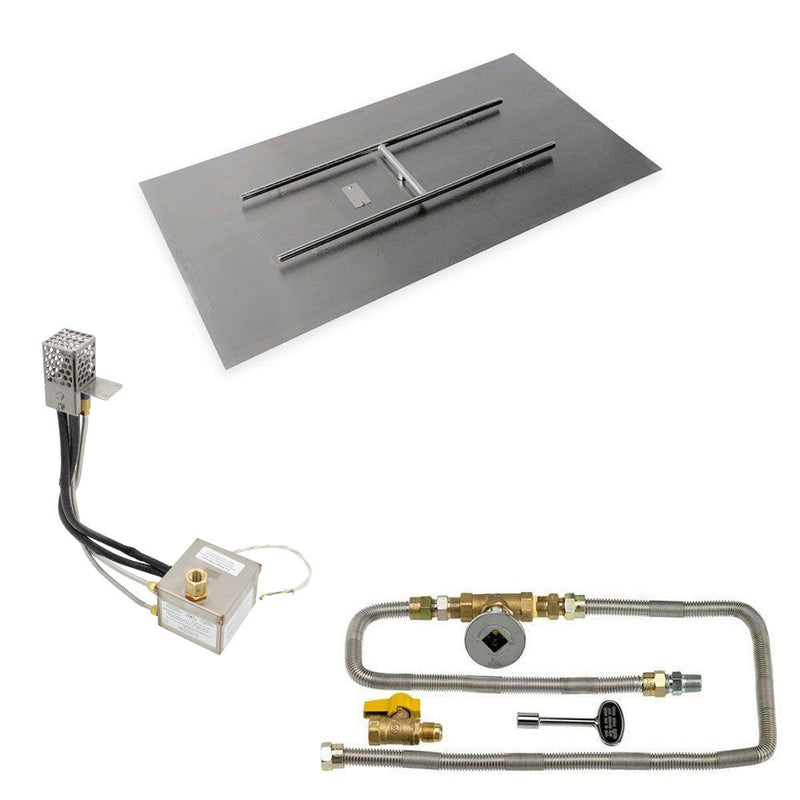

Designed for residential and commercial outdoor fire features, this kit includes a durable 48" x 24" flat burner pan, a 32" x 8" stainless steel H-burner, and the compact AWEIS (All Weather Electronic Ignition System). The flat pan design helps reduce the amount of fire media required while simplifying installation, making it an efficient and cost-effective solution for custom fire pit projects.

The included H-burner is manufactured from premium 304 stainless steel and produces up to 128,000 BTU of heat output. Precision-drilled burner ports provide a smooth, consistent flame while eliminating the whistling sounds commonly associated with punched burners. The AWEIS ignition system offers automatic hot surface ignition, flame sensing safety technology, and dependable all-weather operation for long-term outdoor performance.

Features

• Complete 48" x 24" rectangular fire pit system with AWEIS electronic ignition

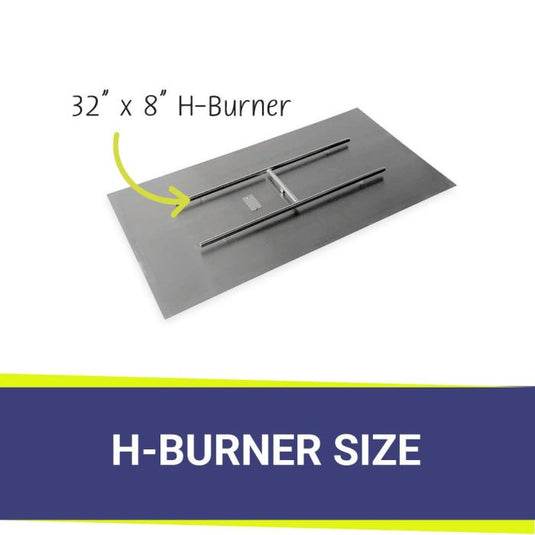

• Includes 32" x 8" 304 stainless steel H-burner
• Powerful 128,000 BTU maximum burner output
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Designed for natural gas outdoor vented fire features
• Durable 304 stainless steel construction for superior corrosion resistance
• Drilled burner ports reduce whistling and unwanted burner noise

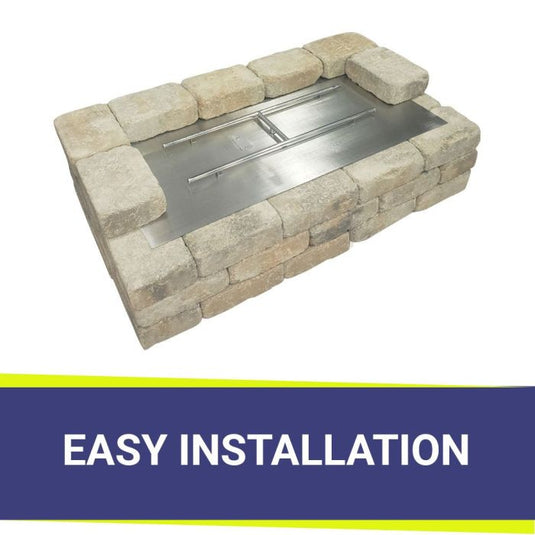

• Flat pan design minimizes fire media requirements and installation costs
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Compact ignition system ideal for low-clearance fire feature installations
• Provides safe, automated ignition and reliable flame monitoring
• Suitable for residential and commercial outdoor fire pit projects

Product Specifications

• Product Weight: 40 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Fuel Type: Natural Gas

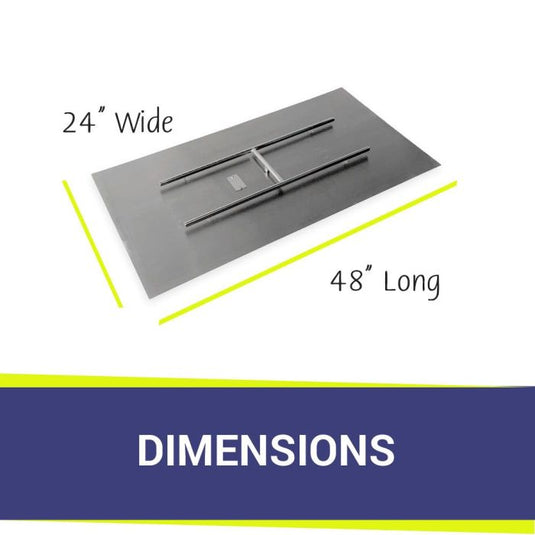

• Pan Dimensions: 48" x 24"
• Burner Type: 32" x 8" H-Burner
• Burner Heat Rating: 128,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Construction: Drilled Ports (Anti-Whistling Design)
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 48" x 24" Rectangular Stainless Steel Flat Burner Pan
  • 32" x 8" 304 Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
