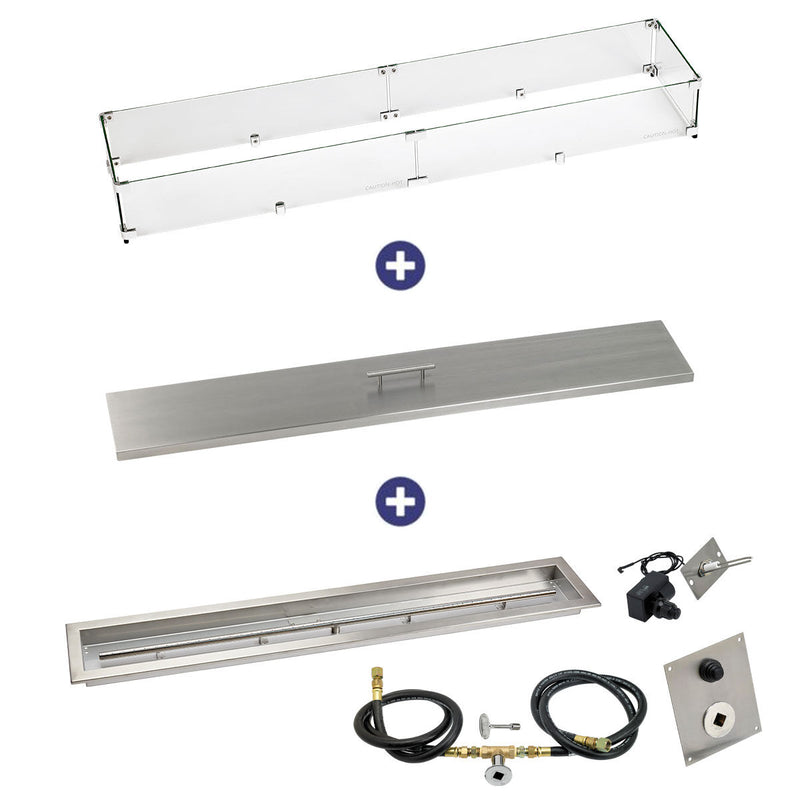

American Fire Products 48" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Natural Gas Bundle

The American Fire Products 48" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Natural Gas Bundle is a complete fire pit burner system engineered to create a stunning, reliable linear flame for outdoor living spaces. This premium bundle includes a handcrafted stainless steel linear burner pan, push-button spark ignition kit, tempered glass flame guard, and stainless steel burner cover, providing everything needed for a professional-quality natural gas fire feature.

Manufactured from premium 304 stainless steel, the 48-inch linear drop-in pan offers exceptional durability, corrosion resistance, and long-lasting performance in outdoor environments. The integrated T-burner delivers an even flame across the entire burner, while precision-drilled weep holes prevent water accumulation and reduce burner whistling.

The included battery-powered push-button spark ignition kit provides quick and dependable ignition with the press of a button. Designed specifically for natural gas fire features, the kit includes dual gas hoses and a chrome key valve for straightforward installation and reliable operation.

To complete the system, this bundle includes a tempered glass flame guard that improves wind resistance and showcases the flame, along with a stainless steel burner cover that protects the burner from weather, debris, and moisture when not in use.

Features

• Complete 48" x 6" linear drop-in fire pit system bundle
• Includes push-button spark ignition kit for natural gas
• Constructed from premium 304 stainless steel for maximum durability
• Built-in T-burner provides even, full-length flame distribution
• Battery-powered push-button ignition for quick and reliable lighting
• Includes dual gas hoses and chrome key valve
• Precision drilled weep holes prevent water buildup and reduce burner whistling
• Designed for outdoor vented natural gas fire features only
• Includes tempered glass flame guard for wind protection and flame stability
• Includes 304 stainless steel burner cover for year-round protection
• Efficient drop-in pan design reduces required fire glass
• Ideal for custom fire pits, patios, outdoor kitchens, and luxury outdoor living spaces

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 48" L x 6" W x 2" D (1 1/4" flange)
• Material: High-Quality 304 Stainless Steel (Handcrafted)
• Product Weight: 17 lbs
• Fire Glass Capacity: 40 lbs (not included)
• Burner Type: Built-in T-Burner
• Fuel Type: Natural Gas
• Heat Output: Up to 120,000 BTU/hour
• Ignition Type: Battery-Powered Push Button Spark Ignition
• Gas Connections: Dual gas hoses and chrome key valve included
• Gas Inlet: 1/2" Bottom Inlet
• Special Feature: Drilled burner ports to reduce whistling
• Application: Outdoor vented natural gas fire features only
• Flame Guard Size: 53.5" x 11.5" x 6"
• Burner Cover Size: 51" x 9" x 1.5"
• Safety Warning: Prop 65 warning applies
• Bundle Includes
  • 48" x 6" Linear Channel Drop-In Pan with Built-in T-Burner
  • Push Button Spark Ignition Kit (Natural Gas)
  • Dual gas hoses and chrome key valve
  • Linear Tempered Glass Flame Guard (53.5" x 11.5" x 6")
  • 304 Stainless Steel Burner Cover (51" x 9" x 1.5")

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
