American Fire Products 48" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit - Propane Bundle

The American Fire Products 48" x 6" Linear Channel Drop-In Pan with Spark Ignition Kit – Propane Bundle is a complete outdoor fire feature solution designed to deliver a beautiful, consistent flame with simple push-button ignition. This professional-grade bundle includes a stainless steel linear burner pan, propane spark ignition system, tempered glass flame guard, and stainless steel burner cover for a complete and durable fire pit installation.

Built from high-quality stainless steel, the 48-inch linear drop-in burner pan is engineered for strength, heat resistance, and long-term outdoor performance. The integrated T-burner provides an even flame distribution across the entire length of the pan, while the raised lip design allows for easy installation into custom-built fire pits. Drilled weep holes help prevent water buildup, improving reliability and burner performance.

The included push-button spark ignition system provides convenient and reliable flame control with a simple press. Designed for propane fire features, the kit includes essential connection components such as regulator, air mixer, gas hoses, and chrome key valve for a smooth installation process.

Complete with a tempered glass flame guard for improved flame stability and a stainless steel burner cover for protection when not in use, this bundle is ideal for residential patios, outdoor kitchens, and custom fire pit projects.

Features

• Complete 48" x 6" linear fire pit burner bundle with propane spark ignition
• Includes stainless steel drop-in burner pan, ignition kit, flame guard, and cover
• Constructed from durable stainless steel for long-lasting outdoor use
• Built-in linear T-burner provides consistent flame distribution
• Convenient drop-in design with installation lip
• Drilled weep holes help prevent water accumulation inside burner pan
• Push-button spark ignitor provides easy flame activation
• Includes propane connection accessories for complete setup
• Tempered glass flame guard improves flame protection and wind resistance
• Stainless steel burner cover protects burner pan when not in use
• Reduces fire glass requirements with integrated false-bottom burner pan design
• Designed for outdoor vented propane gas fire features only
• Ideal for patios, outdoor kitchens, fire tables, and custom fire pits
• Recommended for professional installation

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 48" L x 6" W x 2" D (1 1/4" flange)
• Material: High-quality stainless steel (handcrafted)
• Color: Stainless Steel
• Product Weight: 15 lbs
• Fuel Type: Propane Gas
• Burner Type: Built-in Linear T-Burner
• Heat Output: Up to 120,000 BTU/hour
• Ignition Type: Push Button Spark Ignition
• Fire Glass Capacity: 40 lbs (not included)
• Gas Connection: Includes propane regulator, air mixer, and gas hoses
• Special Feature: Drilled holes to prevent whistling and improve performance
• Application: Outdoor vented propane fire features only
• Installation: Professional installation recommended
• Safety Warning: Prop 65 warning applies

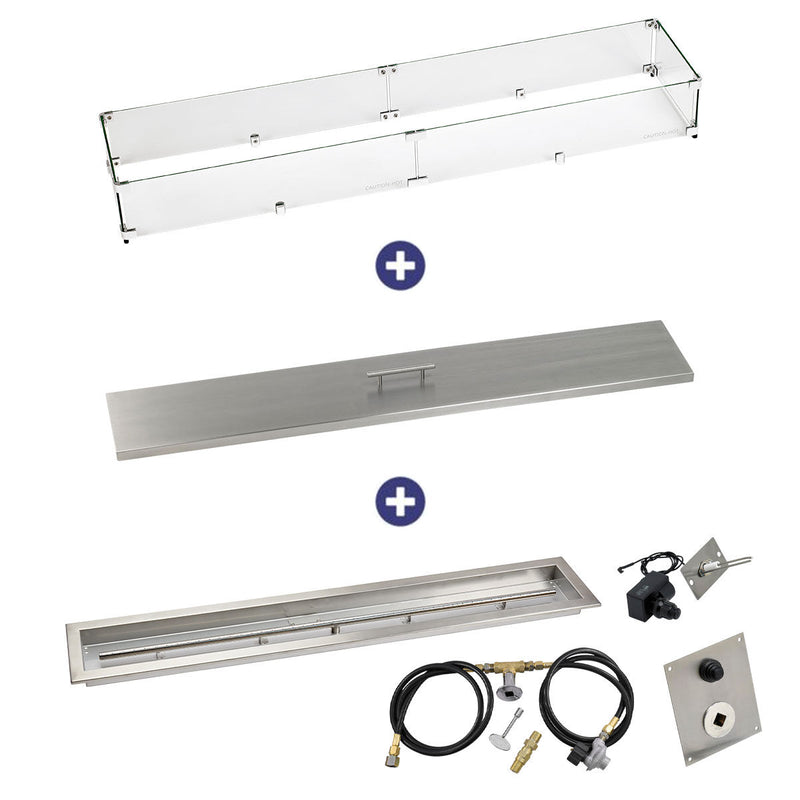

• Bundle Includes
  • 48" x 6" Linear Channel Drop-In Burner Pan with Spark Ignition Kit – Propane
  • Linear Tempered Glass Flame Guard (53.5" x 11.5" x 6")
  • Stainless Steel Burner Cover (51" x 9" x 1.5")
  • Push-button spark ignitor
  • Propane regulator
  • Air mixer
  • Gas hoses
  • Chrome key valve with key

Downloads

• American Fire Products Cutout Size & Recommended Fire Ring [Download]
