American Fire Products 48" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Natural Gas Bundle

The American Fire Products 48" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System – Natural Gas Bundle is a premium long-format fire feature solution designed for large outdoor fire pits and high-end landscape installations. This complete system includes a heavy-duty stainless steel linear burner pan, advanced electronic ignition system, tempered glass flame guard, and stainless steel burner cover for a fully integrated and professional-grade fire setup.

Constructed from 304 stainless steel, the 48-inch linear drop-in pan delivers exceptional strength, corrosion resistance, and long-term durability in demanding outdoor environments. The built-in T-burner produces a consistent, even flame across the full length of the pan, while drilled weep holes help prevent water accumulation and improve safety.

The included AWEIS (All Weather Electronic Ignition System) provides reliable natural gas ignition with hot surface glow plug startup and thermopile flame sensing for automatic safety control. Designed for residential and commercial fire features, this system ensures stable ignition performance and dependable operation.

A tempered glass flame guard enhances wind resistance and flame stability, while the stainless steel burner cover protects the system when not in use, extending the life of the fire feature.

Features

• Complete 48" x 6" linear drop-in fire pit system bundle
• Includes advanced AWEIS electronic ignition system (Natural Gas)
• Constructed from premium 304 stainless steel for maximum durability and corrosion resistance
• Built-in T-burner ensures full-length, even flame distribution
• Drilled weep holes prevent water buildup inside burner pan
• Designed for outdoor vented natural gas fire features only
• Hot surface ignition (glow plug system) for reliable startup
• Integrated thermopile flame sensing safety system

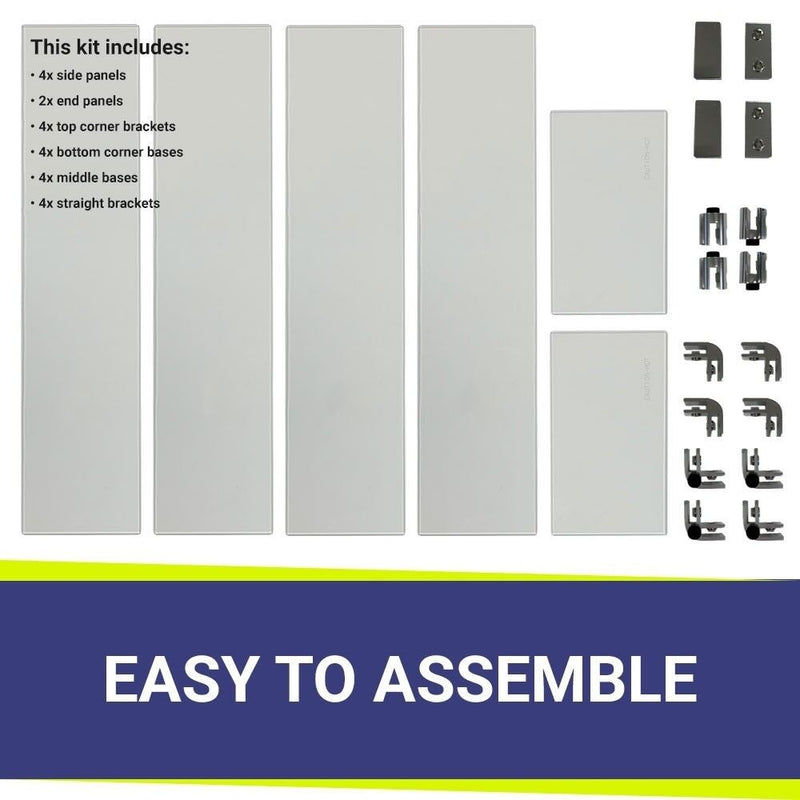

• Includes linear tempered glass flame guard for wind protection and flame stability
• Includes stainless steel burner cover for protection when not in use
• Ideal for large patios, commercial fire features, and landscape designs
• Recommended for certified NFI professional installation

Product Specifications

• Product Type: Linear Drop-In Fire Pit Burner System Bundle
• Brand: American Fire Products
• Pan Dimensions: 48" L x 6" W x 2" D (1 1/4" flange)
• Material: 100% 304 Stainless Steel (Handcrafted)
• Product Weight: 32 lbs
• Fire Glass Capacity: 40 lbs (not included)
• Burner Type: Built-in T-Burner Linear System
• Fuel Type: Natural Gas Only
• Heat Output: Up to 120,000 BTU/hour
• AWEIS Max Output: 290K BTU/hr system capacity
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Flame Safety: Thermopile flame sensing system
• Control System: Electronic ignition gas valve system
• Gas Inlet Size: 1/2" FPT (bottom inlet)
• Operating Voltage: 24V AC
• Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Installation Requirement: Certified NFI professional recommended
• Application: Outdoor vented fire features only
• Warranty: Pan & Burner 5 years / Kit 1 year limited warranty
• Safety Warning: Prop 65 warning applies

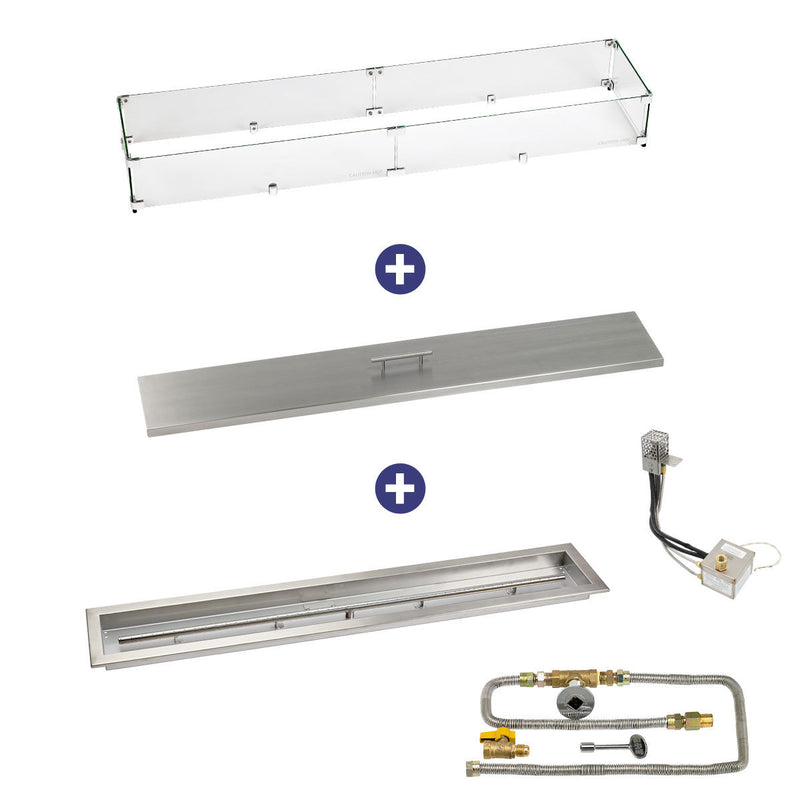

• Bundle Includes
  • 48" x 6" Stainless Steel Linear Drop-In Burner Pan with AWEIS System (Natural Gas)

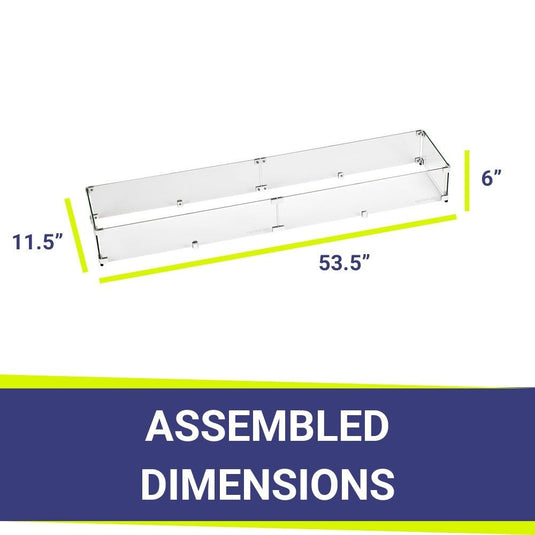

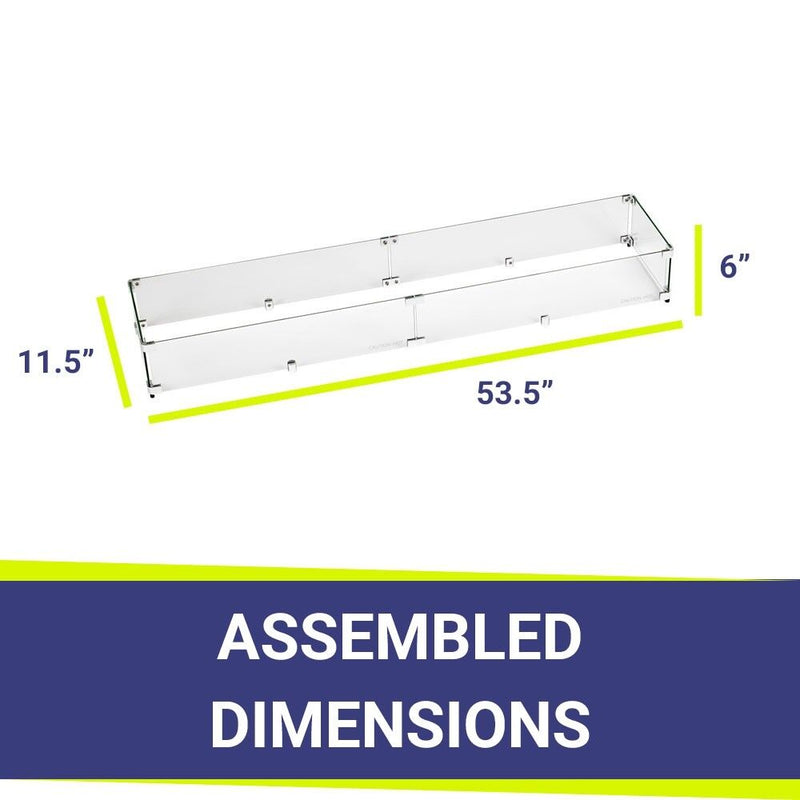

  • Linear Tempered Glass Flame Guard (53.5" x 11.5" x 6")

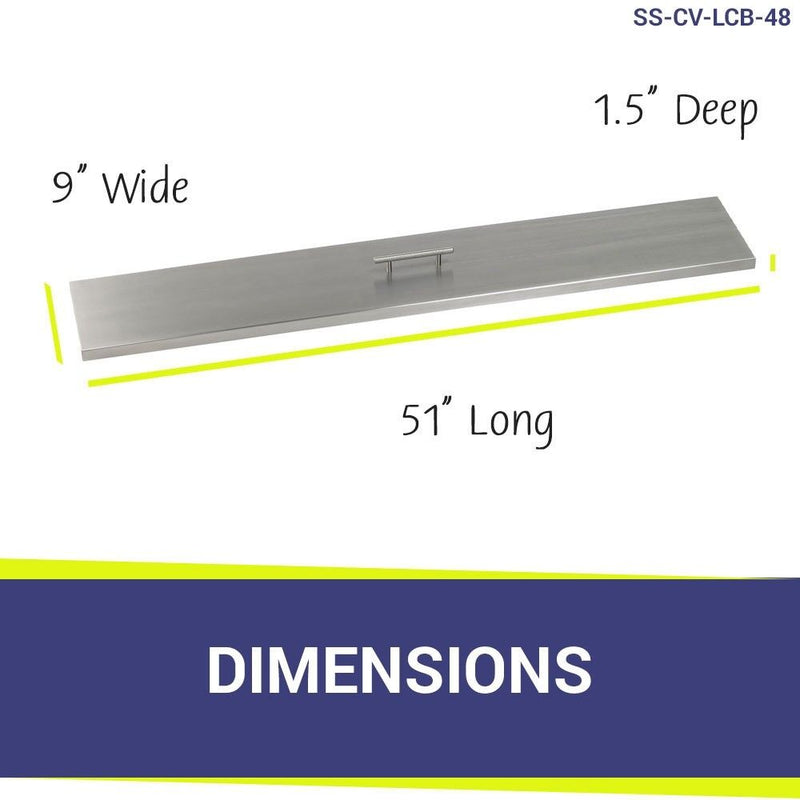

  • Stainless Steel Burner Cover (51" x 9" x 1.5")
  • Integrated ignition system, safety controls, and gas components

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
