American Fire Products 60" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas

Create a stunning outdoor fire feature with the American Fire Products 60" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas. Designed for both residential and commercial fire pit installations, this complete fire pit system combines exceptional flame performance, premium stainless steel construction, and advanced electronic ignition technology for safe and reliable operation.

The system includes a 60" x 24" handcrafted stainless steel flat burner pan, a high-performance 44" x 8" H-burner, and the advanced AWEIS (All Weather Electronic Ignition System). Together, these components provide a beautiful, evenly distributed flame pattern while simplifying installation and reducing the amount of fire media required. With the convenience of electronic ignition, users can enjoy an impressive fire display with the simple flip of a switch.

Constructed from durable 304 stainless steel, the included H-burner delivers up to 176,000 BTU of heat output and features drilled burner ports to eliminate unwanted whistling sounds. The AWEIS system provides automatic hot surface ignition, integrated flame sensing technology, and dependable all-weather performance, making it an ideal choice for premium outdoor fire features.

Features

• Complete 60" x 24" rectangular fire pit system with AWEIS electronic ignition
• Includes 44" x 8" 304 stainless steel H-burner
• Powerful 176,000 BTU maximum burner output
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Designed for natural gas outdoor vented fire features
• Durable 304 stainless steel construction for long-term corrosion resistance
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Flat pan design reduces fire media requirements and installation costs
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Compact ignition system ideal for fire features with limited installation space
• Provides safe, reliable ignition and weather-resistant performance
• Suitable for residential and commercial outdoor fire pit applications

Product Specifications

• Product Weight: 47 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Fuel Type: Natural Gas

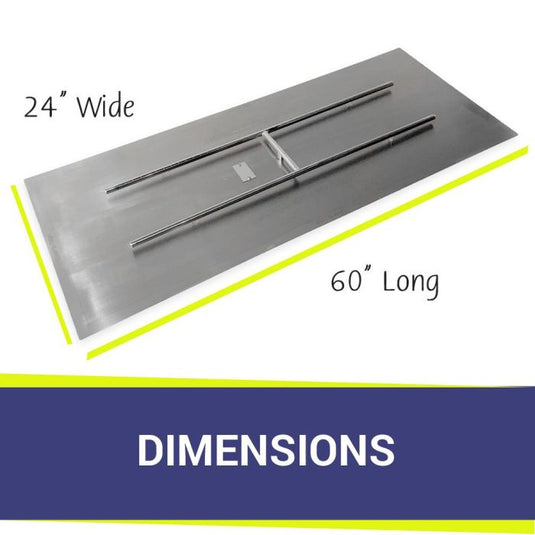

• Pan Dimensions: 60" x 24"

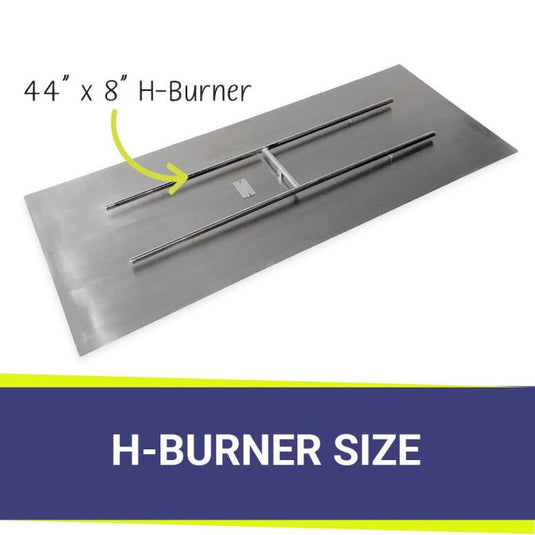

• Burner Type: 44" x 8" H-Burner
• Burner Heat Rating: 176,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Construction: Drilled Ports (Anti-Whistling Design)
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

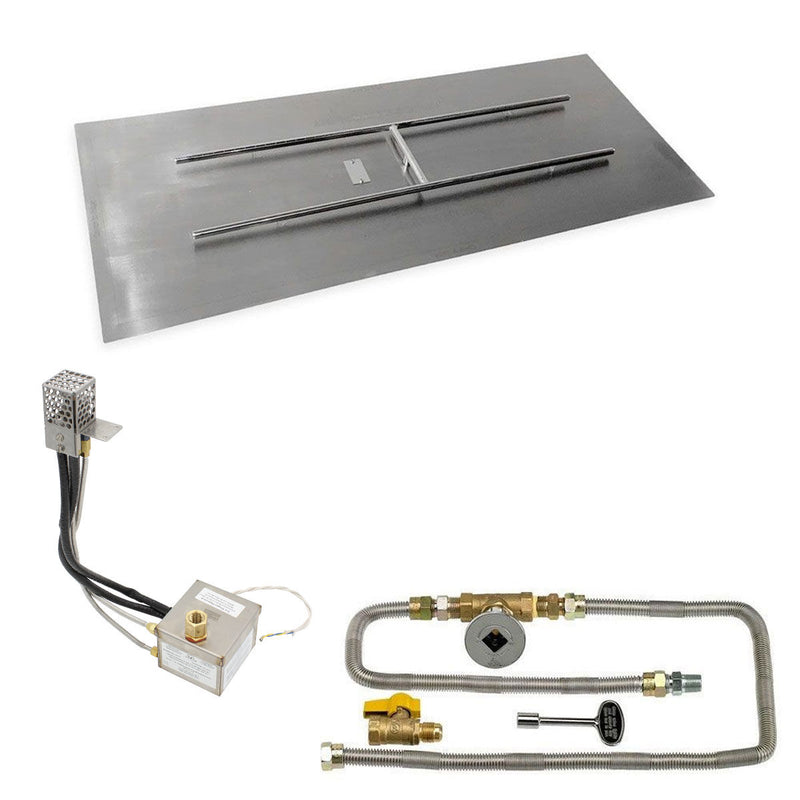

• Included Components
  • 60" x 24" Rectangular Stainless Steel Flat Burner Pan
  • 44" x 8" 304 Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
