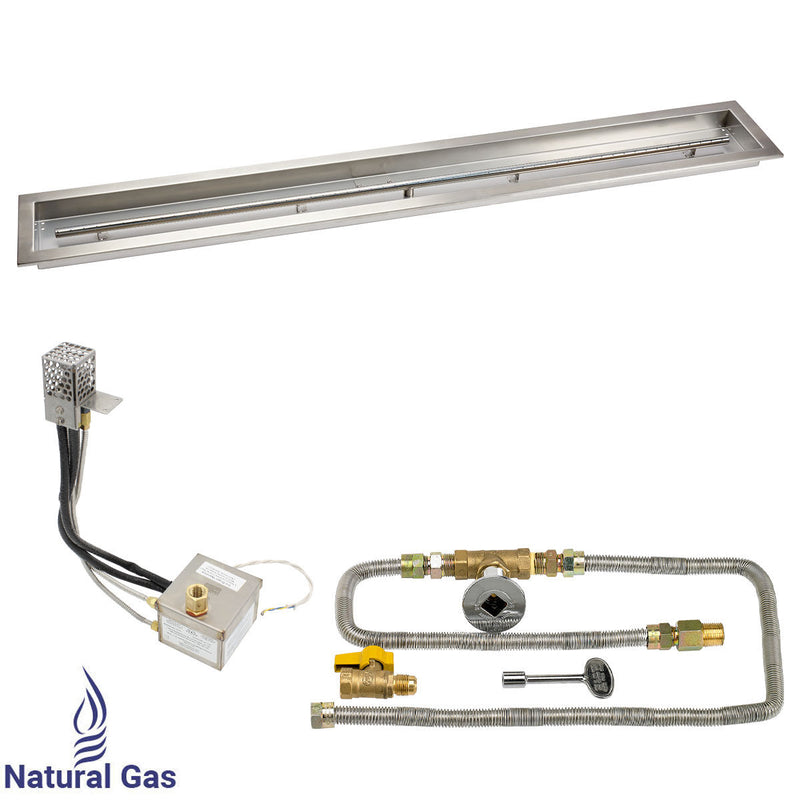

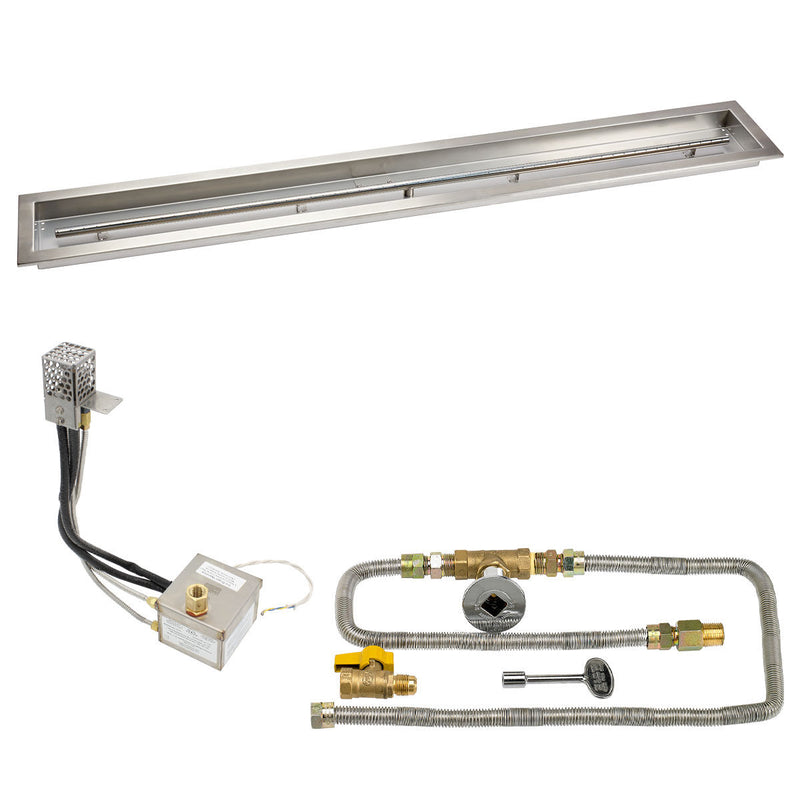

American Fire Products 60" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Natural Gas

Create a sleek and dependable outdoor fire feature with the American Fire Products 60" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Natural Gas. Designed for modern residential and commercial fire pit installations, this complete system combines a durable stainless steel drop-in pan, integrated T-burner, and advanced AWEIS electronic ignition technology to deliver exceptional flame performance and reliable operation.

The 60" x 6" linear channel drop-in pan features a built-in flange for easy installation and removal while creating a false bottom that significantly reduces the amount of fire glass required. Constructed from premium 304 stainless steel, the pan is engineered to withstand extreme temperatures, moisture, and harsh outdoor environments without rusting or deteriorating.

At the core of the system is a built-in stainless steel T-burner rated at 130,000 BTU, producing a beautiful linear flame pattern ideal for contemporary outdoor living spaces. The included AWEIS (All Weather Electronic Ignition System) provides automatic hot surface ignition, integrated flame sensing technology, and dependable all-weather performance, ensuring safe and convenient operation with the flip of a switch.

Features

• Complete 60" x 6" linear fire pit system with AWEIS electronic ignition
• Designed for natural gas outdoor vented fire features
• Built-in stainless steel T-burner rated up to 130,000 BTU
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Durable 304 stainless steel construction for superior corrosion resistance
• Drop-in pan design with integrated flange for easy installation and maintenance
• False-bottom construction reduces fire glass requirements and installation costs
• Built-in 1/2" gas inlet for simple gas connection
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Integrated weep holes prevent water accumulation
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Provides safe, automated ignition and reliable flame monitoring
• Suitable for residential and commercial outdoor fire pit applications

Product Specifications

• Product Weight: 37 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel

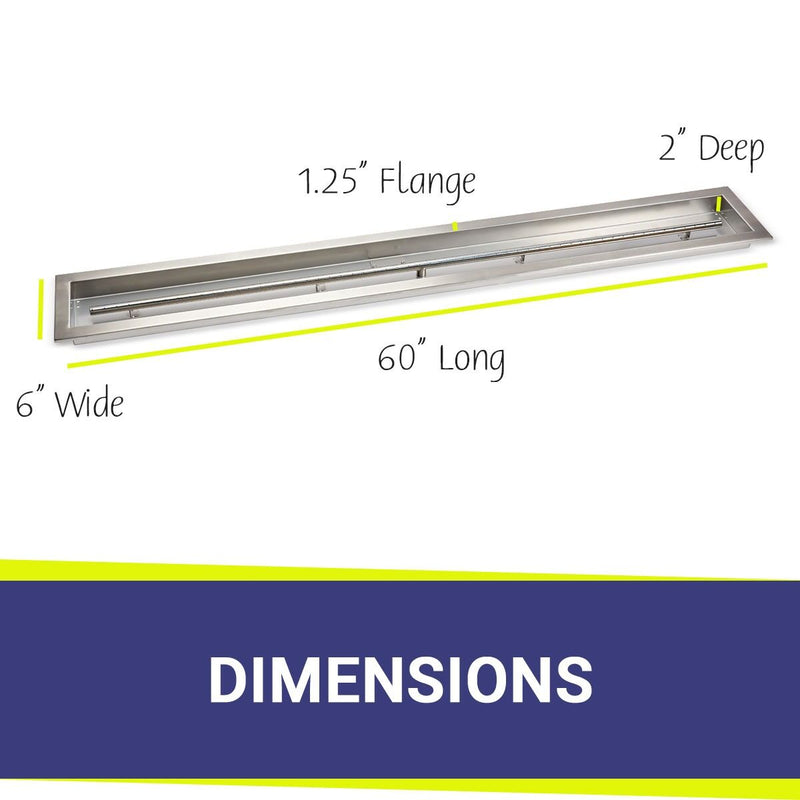

• Dimensions: 60" L x 6" W x 2" D x 1 1/4" Flange
• Fuel Type: Natural Gas
• Fire Glass Capacity: 50 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel T-Burner
• Burner Heat Rating: 130,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 60" x 6" Stainless Steel Linear Channel Drop-In Pan
  • Built-In Stainless Steel T-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
