American Fire Products 72" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas

Create a professional, reliable, and high-performance outdoor fire feature with the American Fire Products 72" x 24" Rectangular Stainless Steel Flat Pan with AWEIS System - Natural Gas. Designed for large residential and commercial fire installations, this complete system delivers powerful flame performance with the convenience of electronic ignition. With the flip of a switch, users can enjoy a consistent, wide flame that enhances outdoor living spaces, hospitality environments, and custom fire feature builds.

This system combines a heavy-duty 72" x 24" stainless steel flat burner pan, a high-output 56" x 8" H-burner, and the advanced AWEIS (All Weather Electronic Ignition System) for safe, automated operation. The flat pan design simplifies installation while reducing the amount of fire media required, making it both efficient and cost-effective for large-scale fire pit projects.

The included H-burner is constructed from premium 304 stainless steel and rated at 224,000 BTU, producing a wide, even flame pattern with excellent visual impact. Drilled burner ports eliminate whistling noises, while the 1/2" gas inlet ensures straightforward connection to natural gas systems. The integrated AWEIS system adds automatic ignition control, flame sensing safety, and weather-resistant reliability, making it ideal for demanding outdoor environments.

Features

• Complete 72" x 24" rectangular fire pit system with AWEIS electronic ignition
• Includes high-output 56" x 8" 304 stainless steel H-burner
• Powerful 224,000 BTU maximum heat output for large flame performance
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Designed for natural gas outdoor vented fire features
• Durable 304 stainless steel construction for long-term corrosion resistance
• Drilled burner ports prevent whistling noise and ensure smooth flame output
• Flat pan design reduces fire media usage and simplifies installation
• Includes safety shut-off valve, key valve, and dual gas flex lines
• Integrated thermopile flame sensing for enhanced safety control
• Compact ignition system suitable for low-clearance installations
• Built for residential and commercial outdoor applications

Product Specifications

• Material: 100% 304 Stainless Steel (Handcrafted)
• Fuel Type: Natural Gas

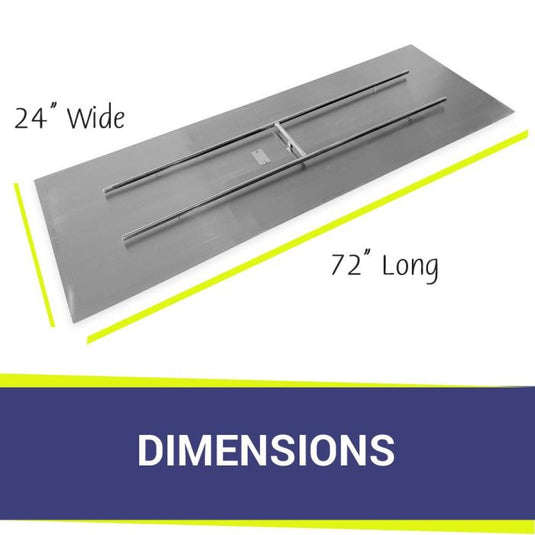

• Pan Dimensions: 72" x 24"

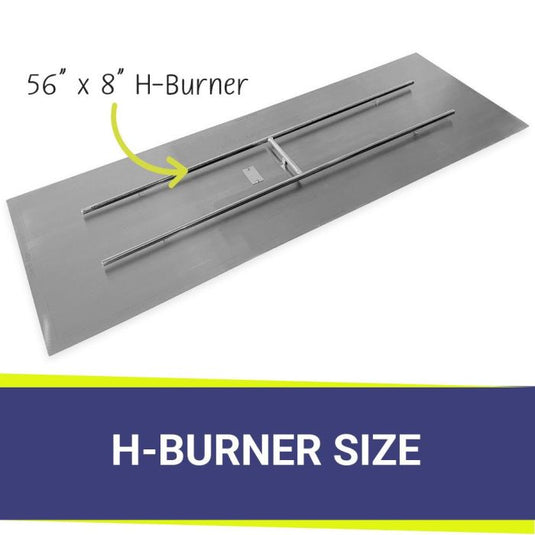

• Burner Type: 56" x 8" H-Burner
• Burner Output: 224,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (AWEIS System)
• Flame Sense: Thermopile
• Operating Voltage: 24 Volts AC
• Gas Inlet Size: 1/2" FPT Bottom Gas Inlet
• Maximum AWEIS Output: 290,000 BTU/hr
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Burner Construction: Drilled ports (anti-whistling design)
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

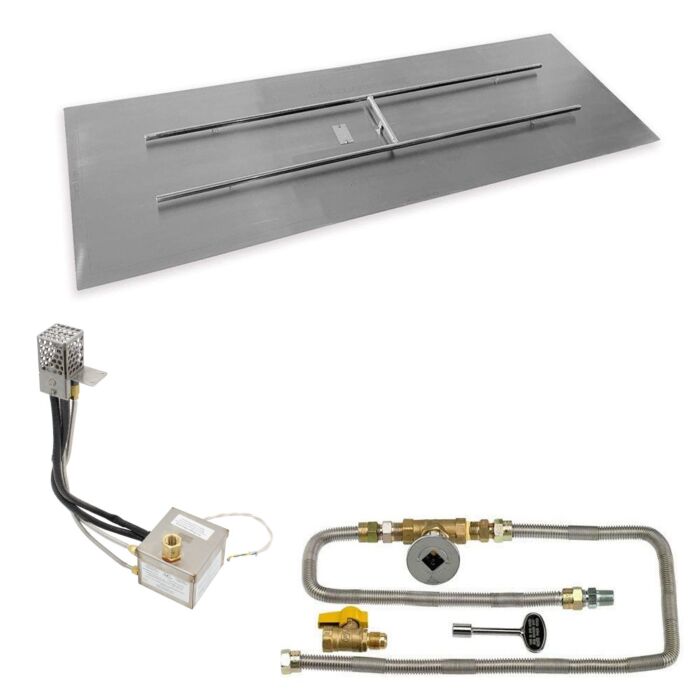

• Included Components
  • 72" x 24" Rectangular Stainless Steel Flat Burner Pan
  • 56" x 8" 304 Stainless Steel H-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
