American Fire Products 72" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Natural Gas

Create a sleek and reliable outdoor fire feature with the American Fire Products 72" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Natural Gas. Designed for premium residential and commercial fire pit installations, this complete system combines a durable stainless steel drop-in pan, built-in T-burner, and advanced AWEIS electronic ignition technology for exceptional performance and convenience.

The 72" x 6" linear channel drop-in pan features an integrated flange that allows for simple installation and removal while creating a false bottom that significantly reduces the amount of fire glass required. Constructed from 304 stainless steel, the pan is built to withstand extreme heat, moisture, and harsh outdoor conditions while maintaining its appearance and structural integrity.

Equipped with a built-in stainless steel T-burner rated at 175,000 BTU, this fire pit system produces a beautiful linear flame pattern ideal for modern outdoor living spaces. The included AWEIS (All Weather Electronic Ignition System) provides automatic hot surface ignition, integrated flame sensing technology, and dependable all-weather operation, delivering safe and reliable performance with the flip of a switch.

Features

• Complete 72" x 6" linear fire pit system with AWEIS electronic ignition
• Designed for natural gas outdoor vented fire features
• Built-in stainless steel T-burner rated up to 175,000 BTU
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Durable 304 stainless steel construction for superior corrosion resistance
• Drop-in pan design with integrated flange for easy installation and removal
• False-bottom construction reduces fire glass requirements and installation costs
• Built-in 1/2" gas inlet for simple gas connection
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Integrated weep holes prevent water accumulation inside the burner pan
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire feature applications

Product Specifications

• Product Weight: 41 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel

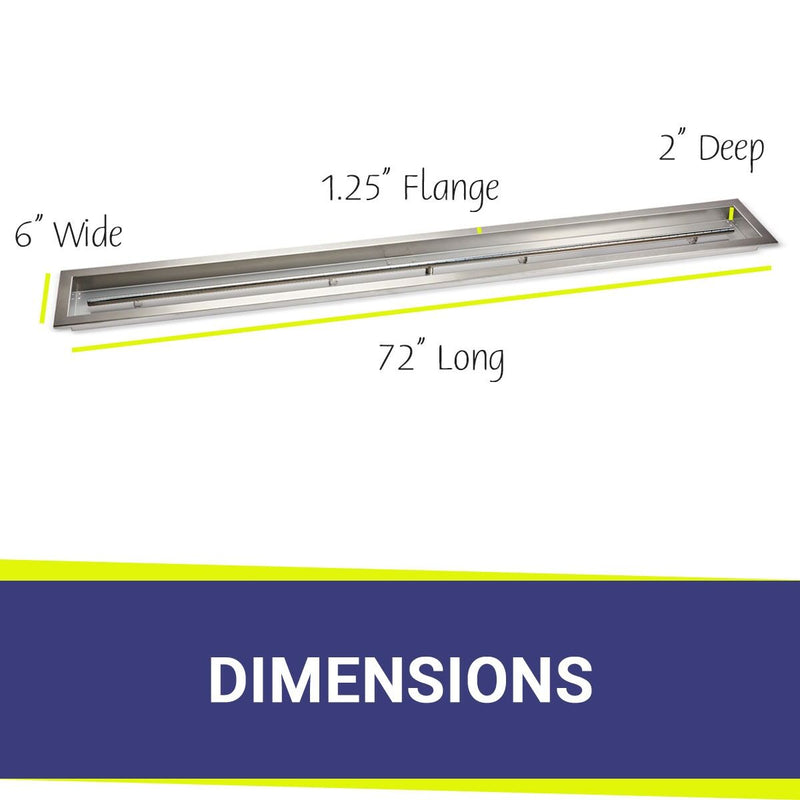

• Dimensions: 72" L x 6" W x 2" D x 1 1/4" Flange
• Fuel Type: Natural Gas
• Fire Glass Capacity: 50 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel T-Burner
• Burner Heat Rating: 175,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented natural gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty

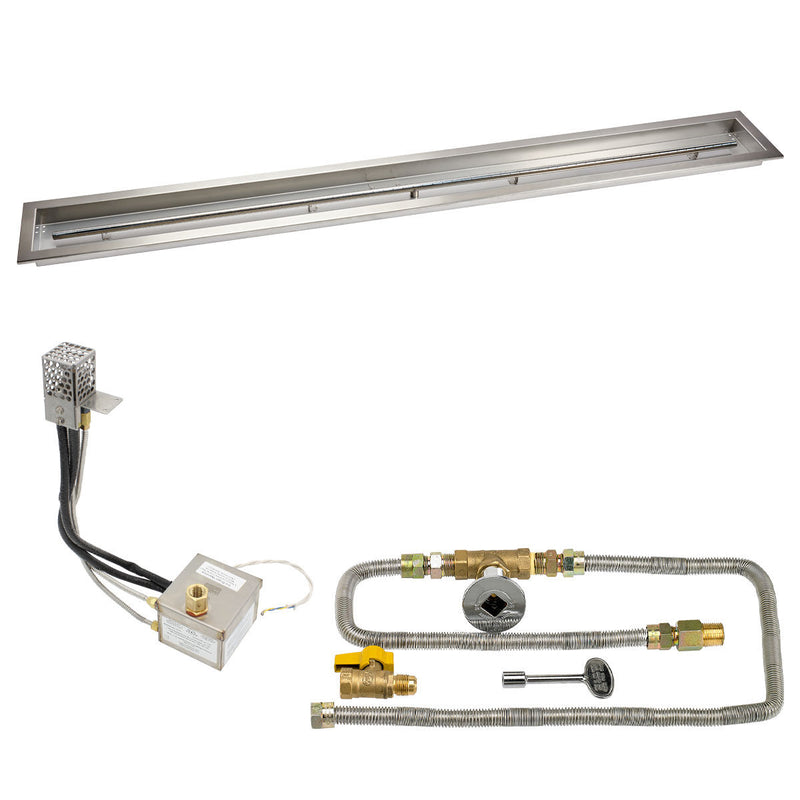

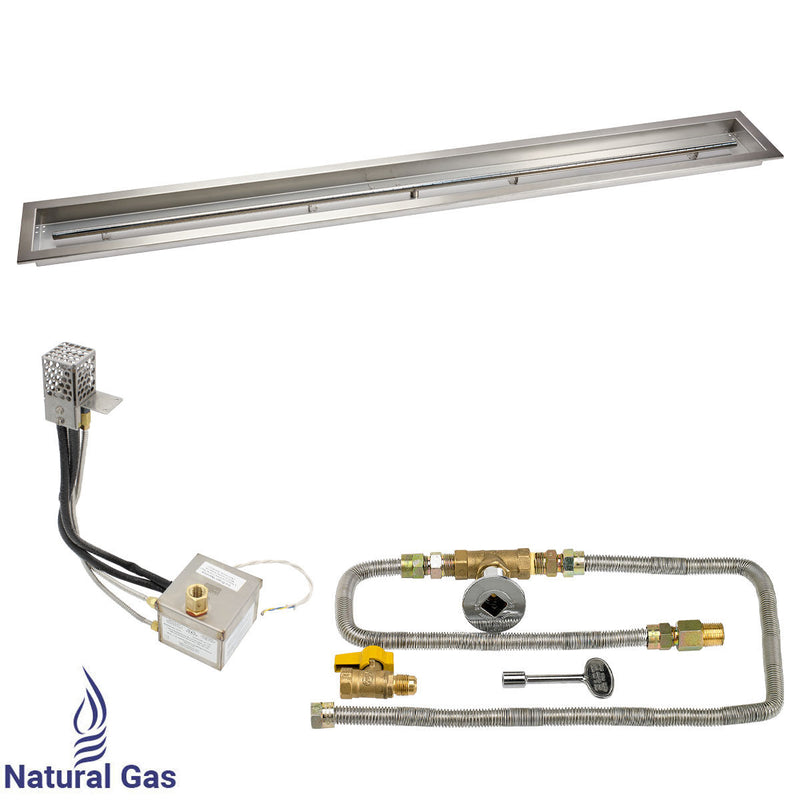

• Included Components
  • 72" x 6" Stainless Steel Linear Channel Drop-In Pan
  • Built-In Stainless Steel T-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
