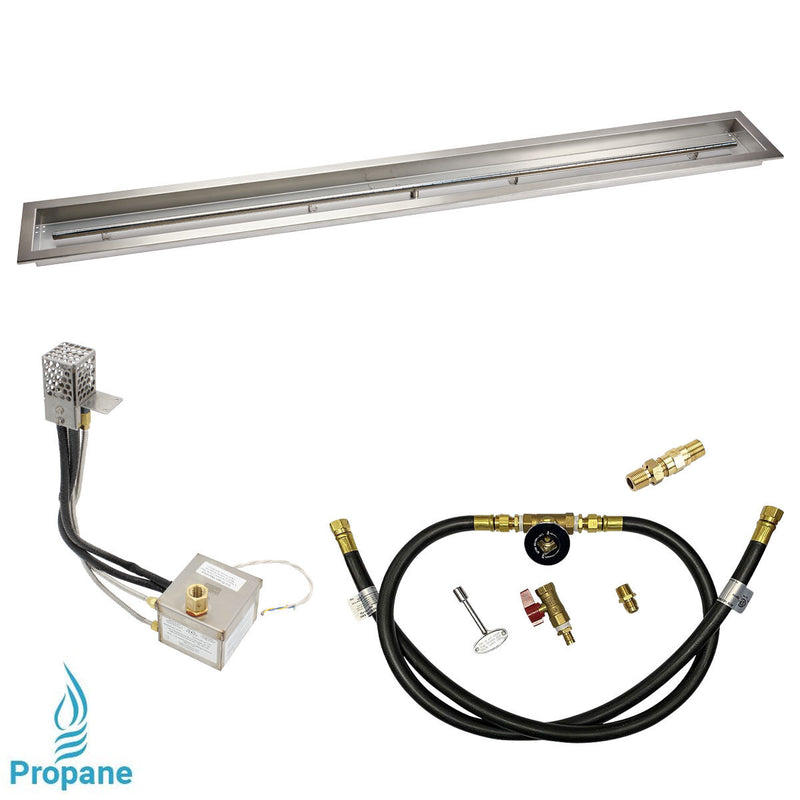

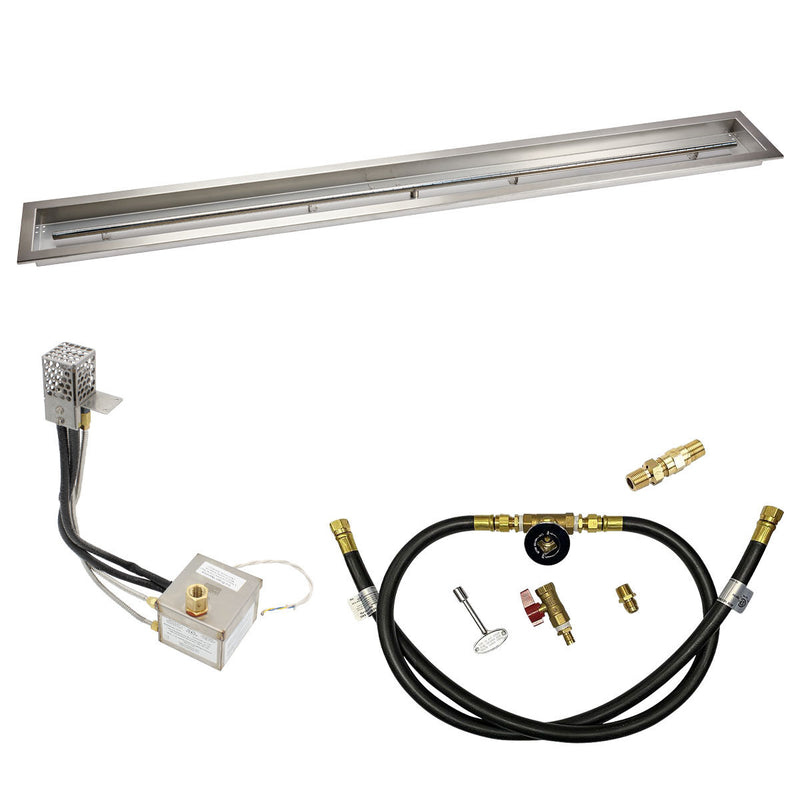

American Fire Products 72" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Whole House Propane

Create a stunning linear fire feature with the American Fire Products 72" x 6" Stainless Steel Linear Channel Drop-In Pan with AWEIS System - Whole House Propane. Designed for premium residential and commercial installations, this complete fire pit system combines a durable stainless steel drop-in pan, integrated T-burner, and advanced electronic ignition technology for dependable performance and impressive flame presentation.

The 72" x 6" linear channel drop-in pan features a built-in flange for easy installation and removal, making it ideal for custom DIY fire pit projects. Its false-bottom design significantly reduces the amount of fire glass required while maintaining a full, luxurious appearance. Constructed from 304 stainless steel, the pan offers exceptional durability and resistance to corrosion, heat, and harsh outdoor conditions.

At the heart of the system is the advanced AWEIS (All Weather Electronic Ignition System), engineered to provide automatic hot surface ignition, integrated flame sensing, and reliable all-weather operation. Combined with a built-in T-burner capable of producing up to 175,000 BTU, this system delivers a beautiful, evenly distributed flame with the convenience and safety of electronic ignition.

Features

• Complete 72" x 6" linear fire pit system with AWEIS electronic ignition
• Designed for whole house propane outdoor fire features
• Built-in stainless steel T-burner delivers up to 175,000 BTU
• Advanced AWEIS hot surface ignition system with automatic flame sensing
• Durable 304 stainless steel construction for superior corrosion resistance
• Drop-in design with integrated flange for easy installation and maintenance
• False-bottom pan design reduces fire glass requirements and installation costs
• Includes drilled weep holes to prevent water accumulation
• Drilled burner ports help eliminate whistling and unwanted burner noise
• Includes propane air mixer for whole house propane applications
• Includes 24V transformer, safety shut-off valve, key valve, and dual gas flex lines
• Suitable for residential and commercial outdoor fire pit installations

Product Specifications

• Product Weight: 41 lbs
• Material: 100% 304 Stainless Steel (Handcrafted)
• Color: Stainless Steel
• Dimensions: 72" L x 6" W x 2" D x 1 1/4" Flange
• Fuel Type: Whole House Propane
• Fire Glass Capacity: 50 lbs (Fire Glass Not Included)
• Burner Type: Built-In Stainless Steel T-Burner
• Burner Heat Rating: 175,000 BTU/hour maximum
• Ignition Type: Hot Surface Ignition (Glow Plug)
• Ignition Sequence: Intermittent Pilot
• Ignition Source: Pilot
• Flame / Heat Sense: Thermopile
• Operating Voltage: 24 Volts AC
• AWEIS Maximum Output: 290,000 BTU/hr
• Inlet / Outlet Size: 1/2" FPT
• Gas Inlet: 1/2" Bottom Gas Inlet
• Inlet Gas Pressure Limit: 2.0 PSI
• Valve Enclosure Dimensions: 4 3/8" x 4 3/8" x 4 3/8"
• Special Features: Drilled Burner Ports and Integrated Weep Holes
• Application: Outdoor, vented whole house propane fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Warranty:
  • Pan & Burner: 5-Year Limited Warranty
  • AWEIS Kit: 1-Year Limited Warranty
• Included Components
  • 72" x 6" Stainless Steel Linear Channel Drop-In Pan
  • Built-In Stainless Steel T-Burner
  • AWEIS Electronic Ignition System
  • 24V Transformer
  • Safety Shut-Off Valve
  • Key Valve Assembly
  • Two Gas Flex Lines
  • Propane Air Mixer

Downloads

• User Manual [Download]
• American Fire Products Cutout Size & Recommended Fire Ring [Download]
