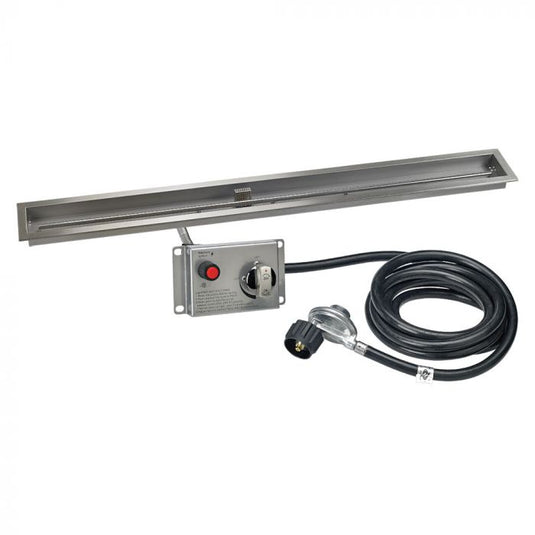

American Fire Products 72" x 6" Stainless Steel Linear Drop-in Fire Pit Pan With Electric Ignition System kit, CSA Certified

Upgrade modern outdoor fire features with the American Fire Products 72" x 6" Stainless Steel Linear Drop-in Fire Pit Pan with Electric Ignition System Kit, CSA Certified. Designed for long linear fire pit installations, this premium burner system delivers consistent flame performance, enhanced safety, and reliable ignition control for both residential and commercial outdoor spaces.

Built from heavy-duty 304 stainless steel, this linear fire pit pan is engineered to resist rust, corrosion, and extreme weather conditions. Its precision-drilled burner ports ensure smooth, even flame distribution while minimizing whistling noises, making it ideal for clean, modern fire feature designs.

This CSA-certified system includes a spark ignition control panel with flame-sensing safety technology, ensuring automatic gas shut-off if the flame is extinguished. The push-button ignition system provides fast, reliable lighting, while adjustable flame control allows users to fine-tune flame height and output.

Features

• Complete 72" linear drop-in fire pit burner system with CSA certified ignition kit
• Designed for natural gas or propane outdoor vented fire features
• Constructed from premium 304 stainless steel for maximum durability
• Includes CSA certified safety ignition and control system
• Push-button spark ignition for fast and easy lighting
• Integrated flame sensing safety technology (thermocouple protection)
• Automatic gas shut-off if flame is extinguished

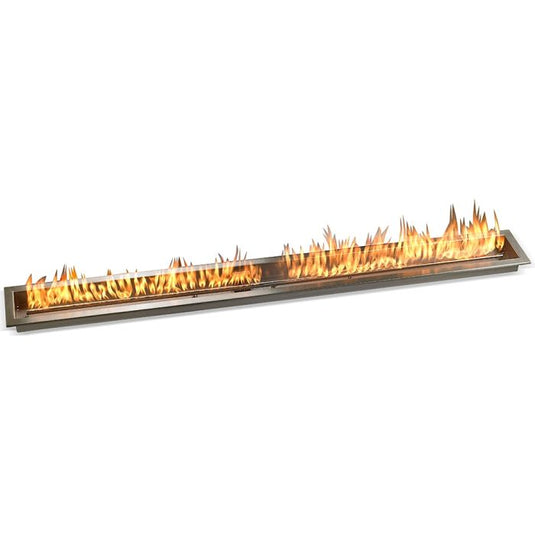

• Linear burner design delivers even, modern flame presentation
• Drilled burner ports reduce whistling and improve flame stability
• Adjustable flame control for customized fire output
• Compatible with propane (standard) and convertible to natural gas
• Ideal for architectural fire pits, outdoor kitchens, and landscape fire features
• Recommended for certified NFI professional installation

Product Specifications

• Material: 100% 304 Stainless Steel (Handcrafted)

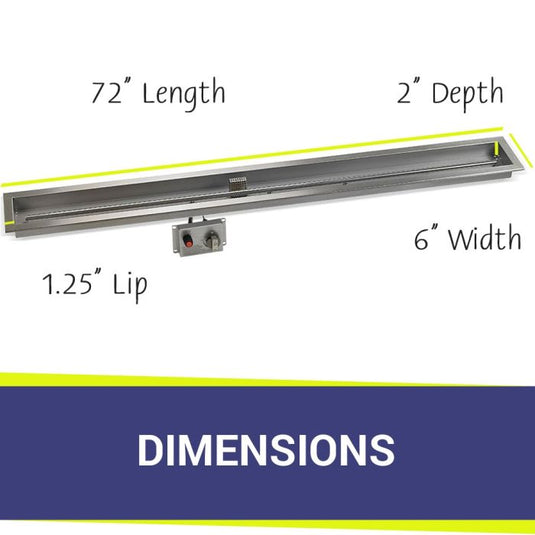

• Pan Dimensions: 72" x 6"
• Cutout Size: 73" x 7"
• Fire Glass Capacity: 60 lbs (not included)
• Burner Type: Linear stainless steel burner
• Burner Ports: Drilled holes (not punched) to prevent whistling
• Fuel Type: Propane (convertible to natural gas)

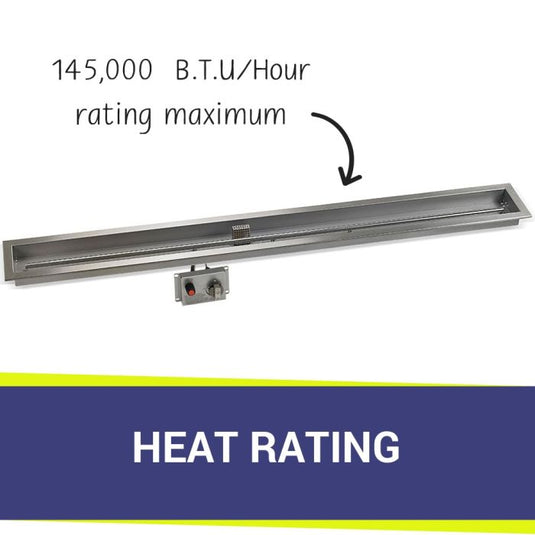

• Propane Heat Rating: 145,000 BTU/hour maximum
• Natural Gas Heat Rating: 95,000 BTU/hour maximum
• Ignition Type: Push Button Spark Ignition
• Ignition Sequence: Rapid Fire Spark Ignition
• Flame Sense: Thermocouple automatic flame shut-off
• Control System: Flame and ignition control panel included
• Battery Requirement: AA batteries
• Inlet Gas Type: Propane (convertible kit available for NG)
• Application: Outdoor vented gas fire features only
• Installation Requirement: Certified NFI Professional Recommended
• Certification: CSA Certified (ANS Z21.97-2014 / CSA 2.41-2014)
• Included Components
  • Stainless Steel Linear Burner Pan (72" x 6")
  • CSA Certified Ignition Control Panel
  • Flame Sensing Safety System (Thermocouple)
  • Push Button Spark Igniter
  • Adjustable Flame Control Valve System
  • Gas Flex Connections (as included in kit)

Downloads

• User Manual [Download]
