Dometic DrawBar 5C Compact wine cooler, 5 bottles, clear glass door

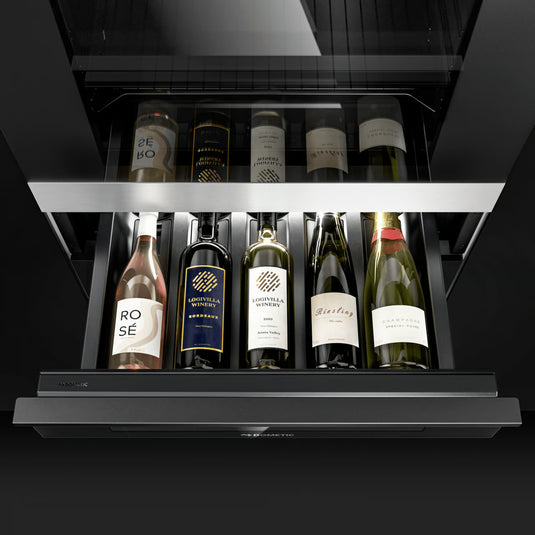

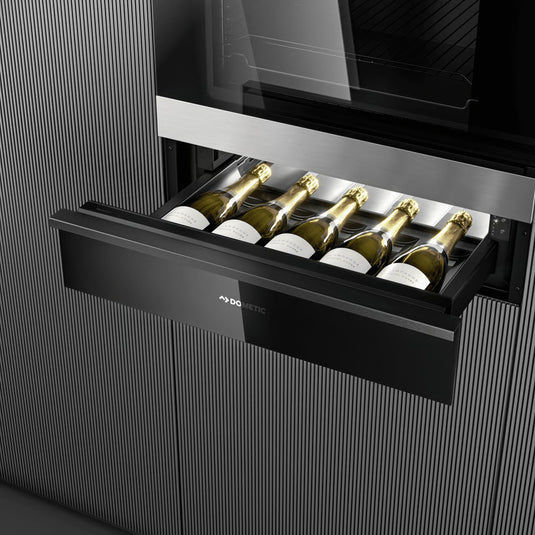

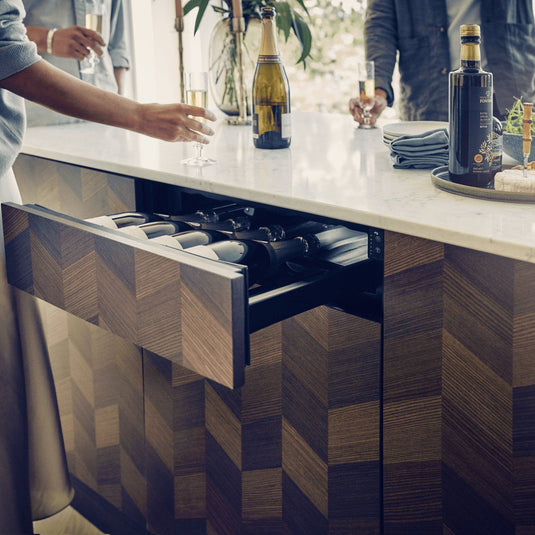

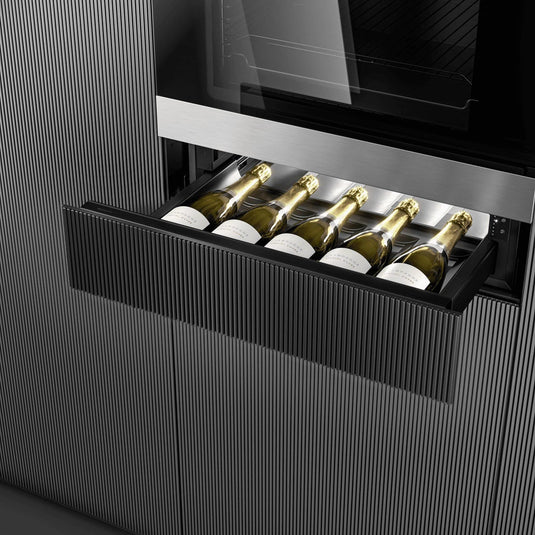

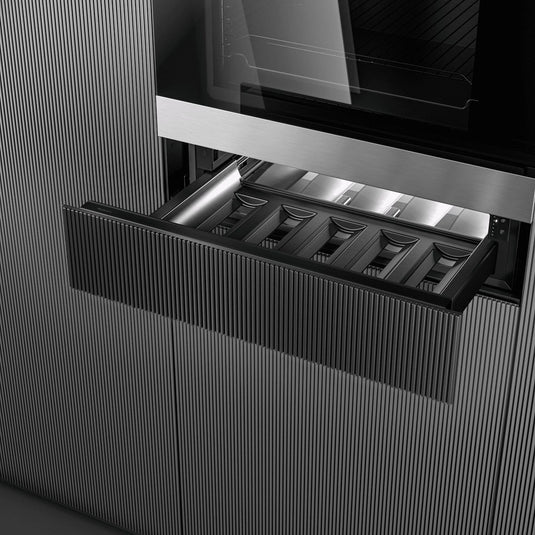

Upgrade your kitchen with the refined design and precision cooling of the Dometic DrawBar 5C Compact Wine Cooler. Designed as a sleek drawer-style unit with a clear glass front, this built-in wine cooler stores up to five bottles at their ideal serving temperature while adding a sophisticated focal point to modern kitchens.

Perfect for wine enthusiasts who value convenience and presentation, the DrawBar 5C accommodates bottles up to 3.8 inches in diameter, including Riesling and Champagne. Choose from five pre-set temperature settings (41°F, 45°F, 51°F, 57°F, or 63°F) to ensure every bottle is perfectly chilled. The powerful compressor cooling system provides efficient, consistent performance, while the humidity tray helps maintain optimal storage conditions.

Soft LED illumination with a subtle fading effect highlights your collection behind the clear glass drawer front, combining functionality with luxury aesthetics.

Features

• Compact drawer-style wine cooler with clear glass front
• Stores up to five wine bottles
• Fits bottles up to 3.8 inches in diameter, including Champagne

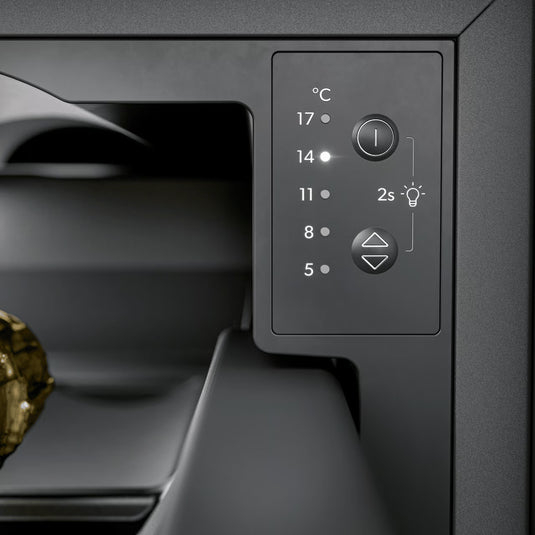

• Five pre-set temperature options: 41°F, 45°F, 51°F, 57°F, 63°F
• Compressor-based cooling system for reliable performance
• Electronic thermostat control for precise temperature management

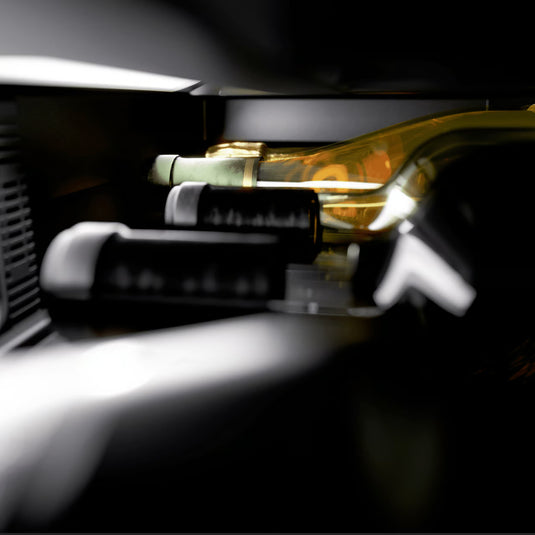

• Soft LED interior lighting with fading effect

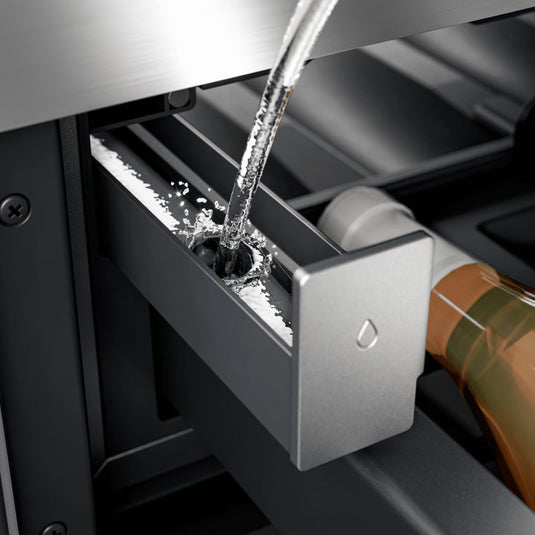

• Humidity tray for improved cooling environment
• Hermetically sealed system
• Quiet operation at 45 dB(A)

Product Specifications

• Product Name: Dometic DrawBar 5C
• Product Type: Compact Wine Cooler
• Bottle Capacity: 5 Bottles
• Total Volume: 15 Liters
• Door Type: Drawer with Clear Glass Front
• Thermostat Control: Electronic
• Interior Light: LED
• Hermetically Sealed: Yes
• Refrigerant Type: R600a
• Climate Class: N
• Noise Level: 45 dB(A)
• Insulation Type: PU (Polyurethane)
• Input Voltage: 100-120 Volts
• Rated Input Current: 0.7 Amp
• Input Frequency: 60 Hz
• UL Certified: Yes
• Product Width: 21.81 Inches (554 mm)
• Product Height: 141 mm
• Product Depth: 548 mm
• Net Weight: 36.16 lbs (16.40 kg)
• Parcel Width: 710 mm
• Parcel Height: 218 mm
• Parcel Depth: 678 mm
• Parcel Weight: 44.98 lbs (20.40 kg)
• Scope of Delivery: 1 DrawBar Unit, 2 Manuals

Downloads

• Dometic DrawBar 5C, DrawBar 5S - Figures AMER(en-fr-es) [Download]
• Dometic DrawBar 5C, DrawBar 5S - Intallation and Operating Manual AMER3 [Download]
• Dometic MoBar, DrawBar, and Wine Coolers Limited One-Year Warranty - AMER [Download]
