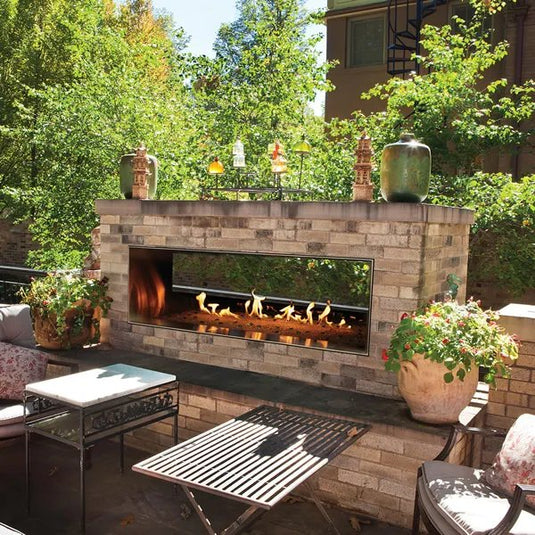

Bring a striking, contemporary flame display to your outdoor living space with the Empire Carol Rose 48" See-Through Outdoor Linear Gas Fireplace. Part of Empire's Carol Rose Coastal Collection, this stainless steel fireplace features an open, double-sided design that lets you enjoy the flames from both sides of an outdoor dividing wall. Its sleek linear profile makes it an inviting focal point for patios, outdoor entertaining areas, and other properly ventilated outdoor installations.
At the heart of the fireplace is a concealed linear gas burner delivering up to 55,000 BTU/hr. Flames rise through a bed of decorative crushed glass, while integrated multicolor LED lighting illuminates the glass from below. The combination creates a vibrant display that can be customized with seven LED colors, adjustable brightness, and automatic color-changing modes.
Designed for convenient manual operation, the Carol Rose See-Through Fireplace features push-button electronic ignition powered by an included AA battery and a three-stage flame control with High, Medium, and Low settings. A tilt-up control cover maintains the fireplace's streamlined appearance, while two included glass wind deflector panels help shield the flames from wind. Optional taller glass deflectors are available for installations exposed to stronger breezes.
Available in Natural Gas (OLL48SP12SN) and Propane (OLL48SP12SP) configurations, this 48-inch outdoor fireplace combines stainless steel construction, contemporary styling, and adjustable lighting for a distinctive two-sided outdoor fire feature.
Important: Decorative crushed glass is required for operation and is sold separately. The 48-inch fireplace requires eight 1-square-foot packages of approved crushed glass media. Choose from Empire's Clear Frost, Bronze Reflective, or Copper Reflective crushed glass options.
Features
- See-Through Fireplace Design: Two-sided viewing allows the linear flame display to be enjoyed from opposite sides of an outdoor wall.
- 55,000 BTU/hr Maximum Input: Gas burner operates between 35,000 and 55,000 BTU/hr with manually adjustable flame settings.
- Stainless Steel Construction: Built for installation in suitable outdoor environments.
- Integrated Multicolor LED Lighting: Illuminates the decorative crushed glass from beneath the burner.
- Seven LED Color Options: Deep Blue, Royal Violet, Cardinal Red, Sea Green, Forest Green, Tranquil Blue, and White.
- Adjustable LED Brightness: High, Medium, Low, and Off settings.
- Automatic Color-Changing Modes: Choose rapid or gradual color transitions.
- Three-Stage Flame Control: Manual High, Medium, and Low flame settings.
- Push-Button Electronic Ignition: Manual gas control with an AA-battery-powered igniter.
- Flame-Sensing Safety System: A thermocouple monitors the flame and shuts off the gas supply if the flame is lost.
- Included Wind Deflector Glass: Two standard glass panels help reduce wind interference on both sides of the fireplace.
- Concealed Controls: Tilt-up covers maintain the fireplace's clean, linear appearance.
- Natural Gas or Propane: Select the appropriate fuel configuration when ordering.
- Outdoor Ventless Design: Intended exclusively for properly ventilated outdoor installations.
Product Specifications
- Manufacturer: Empire Comfort Systems
- Collection: Carol Rose Coastal Collection
- Product Type: Outdoor Linear Gas Fireplace
- Configuration: See-Through / Double-Sided
- Nominal Size: 48 Inches
- Natural Gas Model: OLL48SP12SN
- Propane Model: OLL48SP12SP
- Fuel Type: Natural Gas or Propane, depending on the selected variant
- Maximum Gas Input: 55,000 BTU/hr
- Minimum Gas Input: 35,000 BTU/hr
- Ignition: Manual Electronic Ignition with AA Battery
- Flame Control: Three-Stage Manual (High / Medium / Low)
- Lighting: Integrated Seven-Color LED System
- Construction: Stainless Steel
- Vent Type: Outdoor Ventless
- Gas Connection: 1/2" NPT
- Installation: Outdoor Use Only

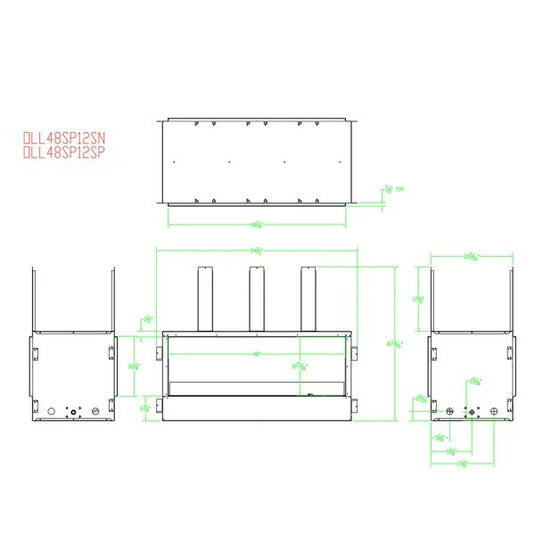

Fireplace Dimensions
- Firebox Face Width: 51 3/4"
- Firebox Face Height: 24 5/16" (excluding standoffs)
- Firebox Depth: 22 5/16"
- Fireplace Opening Width: 48"
- Fireplace Opening Height: 16 3/16"
- Standard Wind Deflector Glass: 47 3/8" W x 3 1/2" H
Framing Dimensions
- Framing Width: 52"
- Framing Height: 40 13/16"
- Framing Depth: 22 5/16"
Framing Notice: These are manufacturer-specified framing dimensions for the OLL48SP series. The framing height includes clearance for the fireplace standoffs. Additional enclosure space is required when installing the optional drain tray. Always review the current Empire installation manual and verify all dimensions before construction.
What's Included
- Empire Carol Rose 48" See-Through Outdoor Linear Gas Fireplace in the selected fuel configuration
- Integrated Linear Gas Burner and Manual Control System
- Built-In Multicolor LED Lighting System
- Two Standard Glass Wind Deflector Panels
- AA Battery for Electronic Ignition
- Manufacturer-Supplied Non-Combustible Finishing Panels and Installation Hardware, as specified in the installation manual
Required Decorative Media – Sold Separately
The Empire Carol Rose 48" See-Through Outdoor Gas Fireplace requires eight 1-square-foot packages of crushed glass media to cover the burner and LED lighting areas. Crushed glass is sold separately and is not included with the fireplace.
Choose from three Empire crushed glass options:
- DG1CLF – Clear Frost Crushed Glass: Clear, frosted decorative glass for a bright, contemporary flame display.
- DG1BZR – Bronze Reflective Crushed Glass: Bronze-toned reflective glass for a warm, distinctive appearance.
- DG1BCR – Copper Reflective Crushed Glass: Copper-toned reflective glass for a rich, warm decorative finish.
Required Quantity: 8 packages total (approximately 8 sq. ft.). Select your preferred glass color from the available options.
Media Installation: Install decorative glass according to Empire's instructions, including the required media depth, placement, and maximum quantity. Always follow the installation manual for the selected appliance and decorative media.
Important: Optional decorative glass drops and droplets do not replace the required crushed glass media. The required crushed glass must be purchased separately from any optional decorative accents.
Optional Accessories – Sold Separately
- DT48LSS – Stainless Steel Drain Tray: Optional accessory for collecting and directing water away from the fireplace. One drain tray is used per fireplace.
- WD48LSS – Stainless Steel Weather Door: Helps protect the fireplace opening when the appliance is not in use. Two weather doors are needed to cover both openings of the see-through fireplace.
- WG48LT1 – Tall Glass Wind Deflector: Optional taller glass panels for windier applications. Two are needed to upgrade both openings of the see-through fireplace.
- GT060 – E-Stop Gas Timer: Optional gas supply timer with an adjustable operating period of 1 to 60 minutes.
- GTCSS – Stainless Steel E-Stop Timer Compartment: Optional timer enclosure. The timer is sold separately.
- DG1NXS – 1" Onyx Solid Decorative Glass Drops: Optional glass accents for permitted decorative media areas. Approximately 1 square foot per package.
- DG1GC – 1/2" Glacier Ice Glass Droplets: Optional decorative accents for approved locations around the burner.
Additional manufacturer-listed glass media and gas conversion accessories may be available. Confirm accessory selection and installation requirements before ordering.
Installation Requirements
This fireplace is designed for outdoor use only in a properly ventilated installation that meets the manufacturer's enclosure requirements and applicable local codes. It must not be installed in an enclosed room, garage, or as an opening into the interior of a residence.
Water Drainage: A suitable drainage path must be provided beneath the fireplace. The Empire DT48LSS stainless steel drain tray is an optional solution, but an alternative drainage arrangement is required if the drain tray is not installed.
Electrical Supply: The integrated LED lighting system requires an external 120V GFI-protected electrical outlet. Electrical connections must be installed in accordance with the manufacturer's instructions and applicable codes.
Gas Supply: The selected Natural Gas or Propane model must match the available gas supply. A qualified installer must complete gas connections and provide an accessible external gas shutoff valve. Propane installations require proper pressure regulation.
Clearances: The installation must comply with Empire's requirements for combustible materials, side walls, ceilings, framing, and outdoor enclosure ventilation. See the official installation manual for complete clearance diagrams.
Operation and Safety Information
Use the fireplace only as described in the manufacturer's installation and owner's manual. Keep the burner, ignition electrode, thermocouple, and ventilation areas free from obstructions. Decorative glass media must be positioned exactly as specified by Empire.
Remove any optional weather doors before lighting the fireplace. Never operate the fireplace with a weather door installed. Allow the flames to extinguish completely before reinstalling a weather door.
The standard glass deflectors help reduce wind interference, but excessive wind may affect flame appearance or extinguish the burner. Empire offers optional taller deflector glass panels for installations where additional wind shielding is needed.
Installation, gas conversion, servicing, and repairs must be performed by qualified professionals. Consult the Empire installation manual before installation or operation.
Warranty Information
Empire provides a limited parts warranty covering qualifying fireplace components, with separate warranty terms for accessories and other excluded components. Warranty coverage is subject to the manufacturer's requirements, exclusions, and conditions. Refer to the official Empire owner's manual for complete warranty details.
Important Ordering Information
This listing is for the 48-inch See-Through Carol Rose Outdoor Linear Gas Fireplace in the selected Natural Gas or Propane configuration. Required crushed glass, optional weather doors, taller wind deflectors, drain tray, timers, decorative accents, and installation services are not included in the base fireplace purchase.
Review the required decorative media and installation requirements before completing your order.
Downloads
- Installation Instructions & Owner's Manual — 48" Outdoor Linear Fireplace [Download]
- Empire Carol Rose Coastal Collection — Outdoor Product Guide [Download]
- Empire OLL48SP — Product Specification Sheet [Download]
