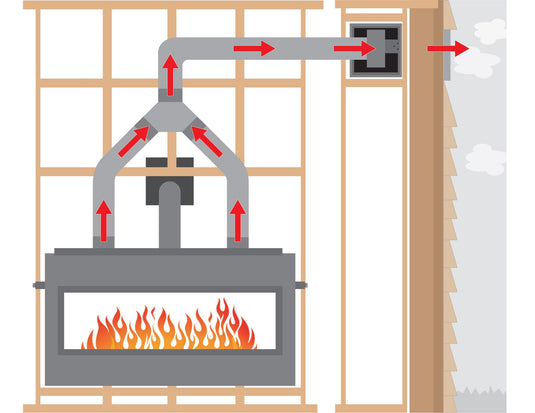

The Empire HMFA External Forced Air Heat Management System is designed for compatible Empire fireplaces to help manage room heat during fireplace operation. Its variable-speed blower diverts a portion of the heated air from the fireplace through a dedicated duct system and discharges it to the exterior of the building.
The HMFA includes the primary components needed for the forced-air heat management system, including the blower assembly, exterior termination components, duct connections, speed control, junction box, and installation hardware. The Empire SD6DFA25 Flex Vent Kit is required and sold separately to complete the system.
Features
- Genuine Empire forced-air heat management accessory
- Variable-speed blower for adjustable heat diversion
- Redirects a portion of heated fireplace air to the exterior of the building
- Includes speed control for blower operation
- Designed for multiple compatible Empire Direct-Vent fireplace families
- Uses 6-inch flex venting in the heat-management duct system
- Requires the Empire SD6DFA25 Flex Vent Kit, sold separately
- Includes exterior termination components and installation hardware
Direct-Vent Compatibility
The current Empire HMFA Direct-Vent installation instructions identify compatibility with the following fireplace model families:
- DVLL36BP, DVLL48BP, DVLL60BP, DVLL72BP
- DVL36BP, DVL46BP
- DVCT36CBP, DVCT40CBP, DVCT50CBP
- DVCT40CSP
- DVCTL60
Verify the complete fireplace model number and applicable Empire installation instructions before ordering. Empire also uses HMFA with certain Vent-Free applications, which require separate model-specific heat-transfer components and installation instructions.
Product Specifications
- Manufacturer: Empire Comfort Systems, Inc.
- Model / SKU: HMFA
- Product Type: Forced Air Heat Management System
- Blower Control: Variable Speed
- Electrical Supply: 120 VAC
- Flex Vent Diameter: 6 Inches
- Airflow Potential: Up to 150 CFM expelled from the building
- Exterior Wall Framed Opening: 14-1/2" × 14-1/2"
- Required Flex Vent Kit: SD6DFA25, sold separately
- Accessory Type: Optional Heat Management System
Kit Contents
- Blower with base assembly
- Outer termination assembly
- Two 6-inch collars with flanges
- 6" × 6" × 6" Y-duct connector
- 6-inch flex adapter
- Four band clamps
- Speed control with knob, faceplate, and wire nuts
- Junction box with cover
- Installation hardware
Required SD6DFA25 Flex Vent Kit
Flex venting is not included with the HMFA. Empire specifies the separately sold SD6DFA25 Flex Vent Kit, which includes 25 feet of flex vent and two band clamps needed to complete the system installation.
Installation Note
Because the HMFA removes heated air from the building, adequate fresh make-up air must be provided to help prevent negative pressure inside the structure. Empire states that the HMFA system has the potential to expel up to 150 CFM.

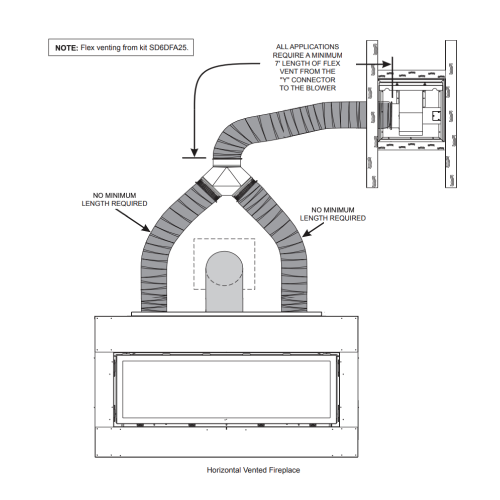

All applications require at least 7 feet of flex vent between the Y-connector and the blower. The Y-connector and flex vent ductwork require a minimum 3-inch clearance to combustible construction. Electrical connections require a 120 VAC supply and must be completed by a qualified electrician.
Downloads
- Empire HMFA Forced Air Heat Management System Installation Instructions [Download]
