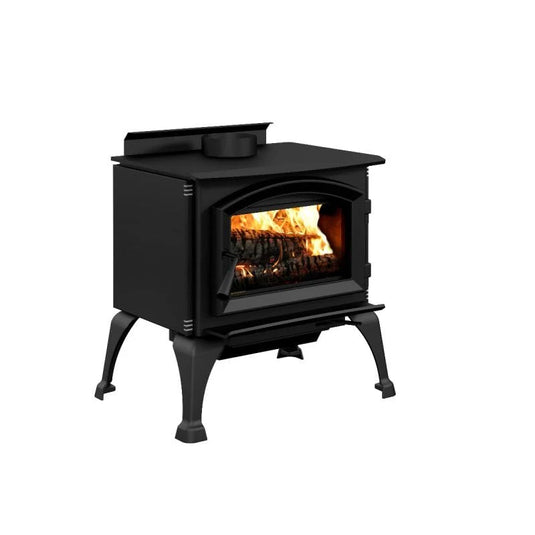

Combine refinement and performance at all times with the all-new Solution 1.7 Wood Stove. Designed for personalized use and an accessible heating experience, this medium-sized unit features sleek, elegant lines with finely engraved side panels, an arched cast iron door, a slightly curved top, and a sturdy ash pan. Its customizable base allows you to choose between six leg styles or a pedestal, seamlessly fitting into your space. Transform your home into the cozy retreat you’ve always dreamed of with this high-performance wood stove.
Features
- Premium Design: Elegant aesthetics with engraved side panels, an arched cast iron door, and a curved top.
- Customizable Base: Choose from six leg options or a pedestal for a personalized look.
- High-Efficiency Heating: EPA 2020 approved, non-catalytic combustion technology.
- Large Firebox: Lined with refractory bricks for better heat distribution.
- Extended Burn Time: Provides up to 7 hours of burn time on a single load.
- Strong Performance: Heats areas between 500 - 1,800 ft², with a maximum output of 65,000 BTU/h.
- Log Capacity: Accepts up to 18" logs loaded width-wise.
- Air-Wash Glass System: Keeps the ceramic glass clean for a clear fire view.
- Secondary Combustion: Stainless-steel secondary-air system improves gas combustion for cleaner burning.
- Sturdy Construction: 3/16" thick steel body and a 3/8" thick steel top for durability.
- Safe and Certified: Certified to UL and CSA safety and emissions standards for North America.
- Flexible Installation: Approved for alcove and mobile home installation.
- Limited Lifetime Warranty: Built for long-term reliability.
Product Specifications
Appliance Performance
- Fuel Type: Dry cordwood (16" recommended)
- Recommended Heating Area: 500 - 1,800 ft²
- Overall Firebox Volume: 1.86 ft³
- EPA Loading Volume: 1.44 ft³
- Maximum Burn Time: 7 hours
- Maximum Heat Output (Dry Cordwood): 65,000 BTU/h (19 kW)
- Overall Heat Output Rate: 9,800 - 52,200 BTU/h (2.87 - 15.3 kW)
- Average Overall Efficiency: 68% (HHV) / 73% (LHV)
- Optimum Overall Efficiency: 76%
- Optimum Heat Transfer Efficiency: 75%
- Average Particulate Emissions Rate: 2.4 g/h
- Average Carbon Monoxide Emissions: 103 g/h
General Features
- Combustion Technology: Non-catalytic
- High-Efficiency Certified: Yes, EPA 2020 approved
- Maximum Log Length: 18"
- Log Positioning: Loaded width-wise
- Chimney Diameter: 6"
- Flue Outlet Diameter: 6"
- Approved Chimney Types: CAN/ULC S629, UL 103 HT (2100°F)
- Minimum Chimney Height: 15'
- Baffle Type: C-Cast or equivalent
- Alcove Installation Approved: Yes
- Mobile Home Installation Approved: Yes
- Shipping Weight: 341 lb (155 kg)
- Door Type: Single door with a cast iron frame and ceramic glass
- Glass Dimensions (W x H): 15 7/8" x 9 7/8"
- Glass Air-Wash System: Yes
- Overall Dimensions (H x W x D): 30 1/8" x 28" x 23 5/8"
- Door Opening Dimensions (H x W): 8 3/4" x 17 1/4"
- Firebox Dimensions (H x W x D): 11 7/8" x 19 5/8" x 13 1/2"
- Refractory Brick Firebox Lining: Yes, for better heat distribution
- Stainless-Steel Secondary-Air System: Yes, for improved gas combustion
- Steel Thickness (Body): 3/16"
- Steel Thickness (Top): 3/8"
Certifications & Safety Standards
- USA Emissions Standard: EPA 2020 compliant
- Canadian Emissions Standard: CSA B415.1-10
- USA Safety Standard: UL 1482, UL 737
- Canadian Safety Standard: ULC S627
- Tested and Listed By: Accredited Laboratory (CAN/USA)
- Warranty: Limited Lifetime
Clearances to Combustibles
(Data in inches; 1 inch = 25.4 mm)
| Clearance | Canada (Single Wall Pipe) | Canada (Double Wall Pipe) | US (Single Wall Pipe) | US (Double Wall Pipe) |
|---|---|---|---|---|
| Back Wall | 14 1/2" | 7 1/2" | 13" | 7 1/2" |
| Corner | 12" | 12" | 12" | 12" |
| Side Wall | 10" | 10" | 10" | 10" |
| Top (from platform) | 84" | 84" | 84" | 84" |
| Minimum Floor Protection (Front) | 18" | N/A | 16" | N/A |
Note: Always refer to the certification label affixed to the appliance for final clearance requirements.
Installation Notes
- Some models are tested for low ceiling installations—check the installation manual for specific requirements.
- Certified safe for residential and mobile home use when installed per regulations.
Downloads
- Solution 1.7 wood stove install & owner's manual [Download]
- Wood stove manual | Safety notifications & general information [Download]
- Solution 1.7 Dimensions [Download]
Decsription
Combine refinement and performance at all times with the all-new Solution 1.7 Wood Stove. Designed for personalized use and an accessible heating experience, this medium-sized unit features sleek, elegant lines with finely engraved side panels, an arched cast iron door, a slightly curved top, and a sturdy ash pan. Its customizable base allows you to choose between six leg styles or a pedestal, seamlessly fitting into your space. Transform your home into the cozy retreat you’ve always dreamed of with this high-performance wood stove.
Features
- Premium Design: Elegant aesthetics with engraved side panels, an arched cast iron door, and a curved top.
- Customizable Base: Choose from six leg options or a pedestal for a personalized look.
- High-Efficiency Heating: EPA 2020 approved, non-catalytic combustion technology.
- Large Firebox: Lined with refractory bricks for better heat distribution.
- Extended Burn Time: Provides up to 7 hours of burn time on a single load.
- Strong Performance: Heats areas between 500 - 1,800 ft², with a maximum output of 65,000 BTU/h.
- Log Capacity: Accepts up to 18" logs loaded width-wise.
- Air-Wash Glass System: Keeps the ceramic glass clean for a clear fire view.
- Secondary Combustion: Stainless-steel secondary-air system improves gas combustion for cleaner burning.
- Sturdy Construction: 3/16" thick steel body and a 3/8" thick steel top for durability.
- Safe and Certified: Certified to UL and CSA safety and emissions standards for North America.
- Flexible Installation: Approved for alcove and mobile home installation.
- Limited Lifetime Warranty: Built for long-term reliability.
Product Specifications
Appliance Performance
- Fuel Type: Dry cordwood (16" recommended)
- Recommended Heating Area: 500 - 1,800 ft²
- Overall Firebox Volume: 1.86 ft³
- EPA Loading Volume: 1.44 ft³
- Maximum Burn Time: 7 hours
- Maximum Heat Output (Dry Cordwood): 65,000 BTU/h (19 kW)
- Overall Heat Output Rate: 9,800 - 52,200 BTU/h (2.87 - 15.3 kW)
- Average Overall Efficiency: 68% (HHV) / 73% (LHV)
- Optimum Overall Efficiency: 76%
- Optimum Heat Transfer Efficiency: 75%
- Average Particulate Emissions Rate: 2.4 g/h
- Average Carbon Monoxide Emissions: 103 g/h
General Features
- Combustion Technology: Non-catalytic
- High-Efficiency Certified: Yes, EPA 2020 approved
- Maximum Log Length: 18"
- Log Positioning: Loaded width-wise
- Chimney Diameter: 6"
- Flue Outlet Diameter: 6"
- Approved Chimney Types: CAN/ULC S629, UL 103 HT (2100°F)
- Minimum Chimney Height: 15'
- Baffle Type: C-Cast or equivalent
- Alcove Installation Approved: Yes
- Mobile Home Installation Approved: Yes
- Shipping Weight: 341 lb (155 kg)
- Door Type: Single door with a cast iron frame and ceramic glass
- Glass Dimensions (W x H): 15 7/8" x 9 7/8"
- Glass Air-Wash System: Yes
- Overall Dimensions (H x W x D): 30 1/8" x 28" x 23 5/8"
- Door Opening Dimensions (H x W): 8 3/4" x 17 1/4"
- Firebox Dimensions (H x W x D): 11 7/8" x 19 5/8" x 13 1/2"
- Refractory Brick Firebox Lining: Yes, for better heat distribution
- Stainless-Steel Secondary-Air System: Yes, for improved gas combustion
- Steel Thickness (Body): 3/16"
- Steel Thickness (Top): 3/8"
Certifications & Safety Standards
- USA Emissions Standard: EPA 2020 compliant
- Canadian Emissions Standard: CSA B415.1-10
- USA Safety Standard: UL 1482, UL 737
- Canadian Safety Standard: ULC S627
- Tested and Listed By: Accredited Laboratory (CAN/USA)
- Warranty: Limited Lifetime
Clearances to Combustibles
(Data in inches; 1 inch = 25.4 mm)
| Clearance | Canada (Single Wall Pipe) | Canada (Double Wall Pipe) | US (Single Wall Pipe) | US (Double Wall Pipe) |
|---|---|---|---|---|
| Back Wall | 14 1/2" | 7 1/2" | 13" | 7 1/2" |
| Corner | 12" | 12" | 12" | 12" |
| Side Wall | 10" | 10" | 10" | 10" |
| Top (from platform) | 84" | 84" | 84" | 84" |
| Minimum Floor Protection (Front) | 18" | N/A | 16" | N/A |
Note: Always refer to the certification label affixed to the appliance for final clearance requirements.
Installation Notes
- Some models are tested for low ceiling installations—check the installation manual for specific requirements.
- Certified safe for residential and mobile home use when installed per regulations.
Downloads
- Solution 1.7 wood stove install & owner's manual [Download]
- Wood stove manual | Safety notifications & general information [Download]
- Solution 1.7 Dimensions [Download]
